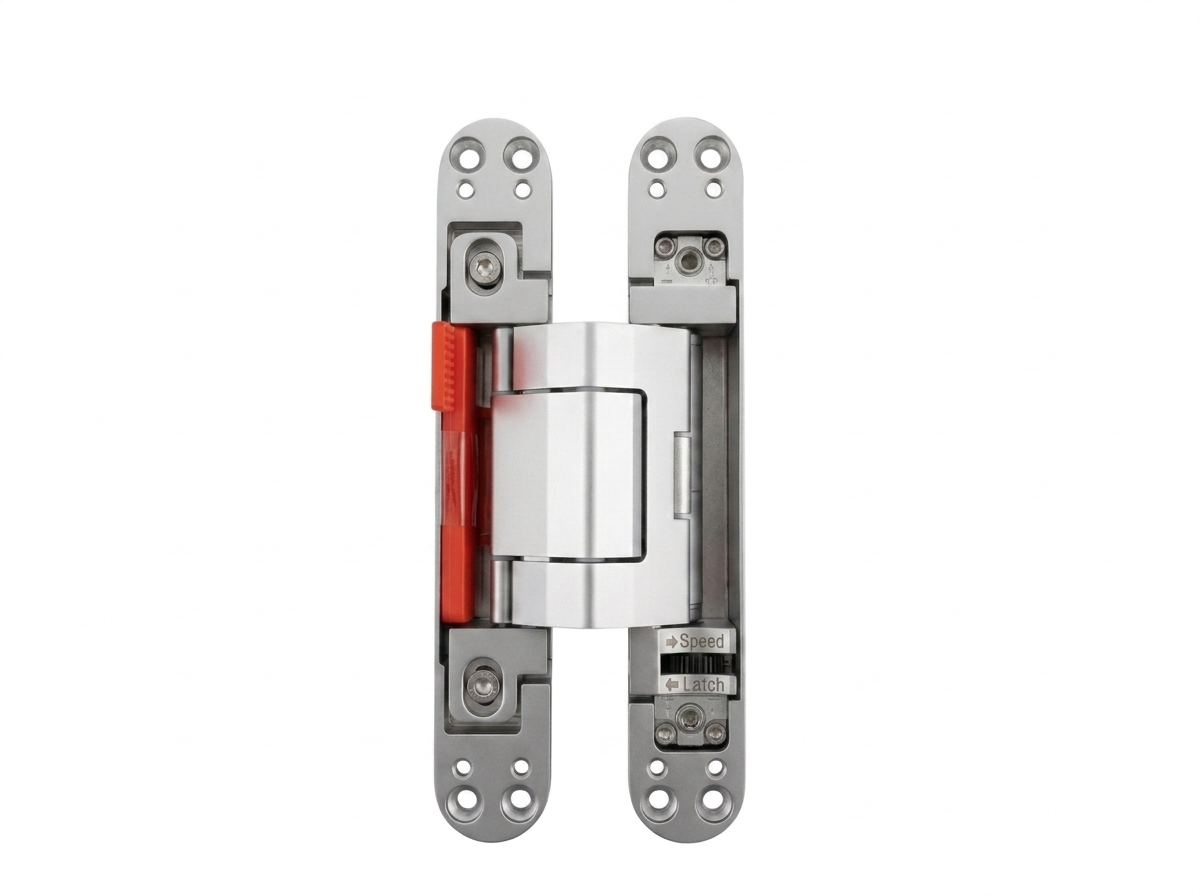

New arrival 2026 peal chrome Hydraulic soft closing quite 3D conceal hinge

1. Integrated Self-Closing & Hydraulic Damping

• Self-Closing Functionality: The hinge functions as a self-closing mechanism, eliminating the need for external door closers.

• Built-In Damping: It features an integrated, hidden hydraulic damping system that allows for smooth, controlled door movement.

• Controllable Closing Speed: The closing speed of the door can be adjusted and controlled after installation.

• Mute/Silent Lock Adjustment: It features a tool-free adjustable "silent lock" (mute lock) mechanism to ensure quiet operation.

2. Precise 3D Adjustability

The hinge offers highly flexible and precise three-dimensional adjustments to perfectly align the door without hassle:

• Vertical (Up/Down):± 2.5 mm.

• Depth (Front/Back):±1 mm.

• Horizontal (Left/Right): 1 mm to 4.5 mm.

3. High Durability & Quality Materials

• Robust Construction: It is made from high-grade materials, specifically Zinc Alloy and Aviation Aluminum.

• Long Lifespan: The hinge is built to last, passing an open-and-close circle lifetime test of over 200,000 cycles.

4. Smart Installation Features

• Less Drilling Depth: Designed for a more efficient installation process by requiring a shallower drilling depth.

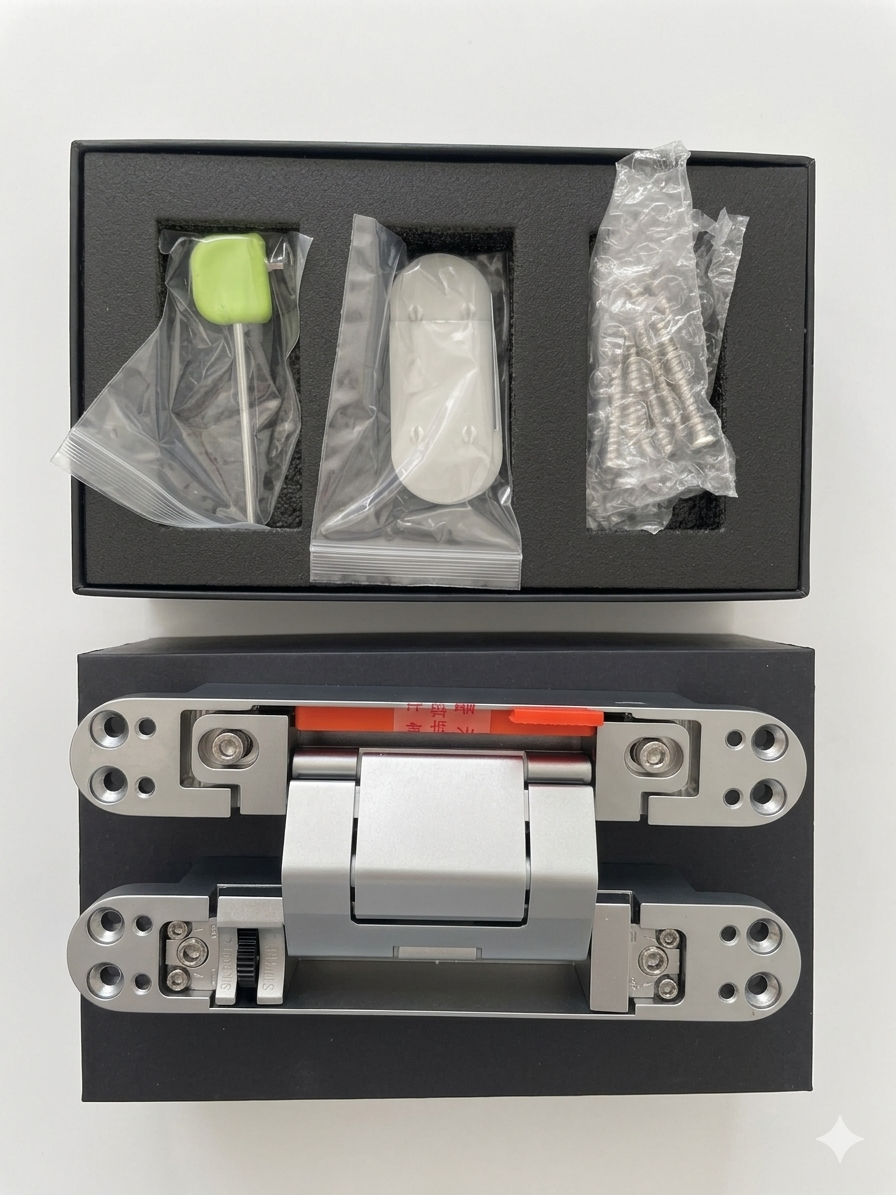

• Protective "Help Board" Card: Includes a temporary fixed card ("Help Board") that prevents the hinge from accidentally closing during installation, protecting both the door and the hinge from damage.

5. Flexible Positioning & Wide Opening Angle

• Wide Opening: Offers a maximum opening angle of 180°.

• Hold-Open Range: Features a positioning hold range between 80°–180° (or 90°–180° depending on configuration).
