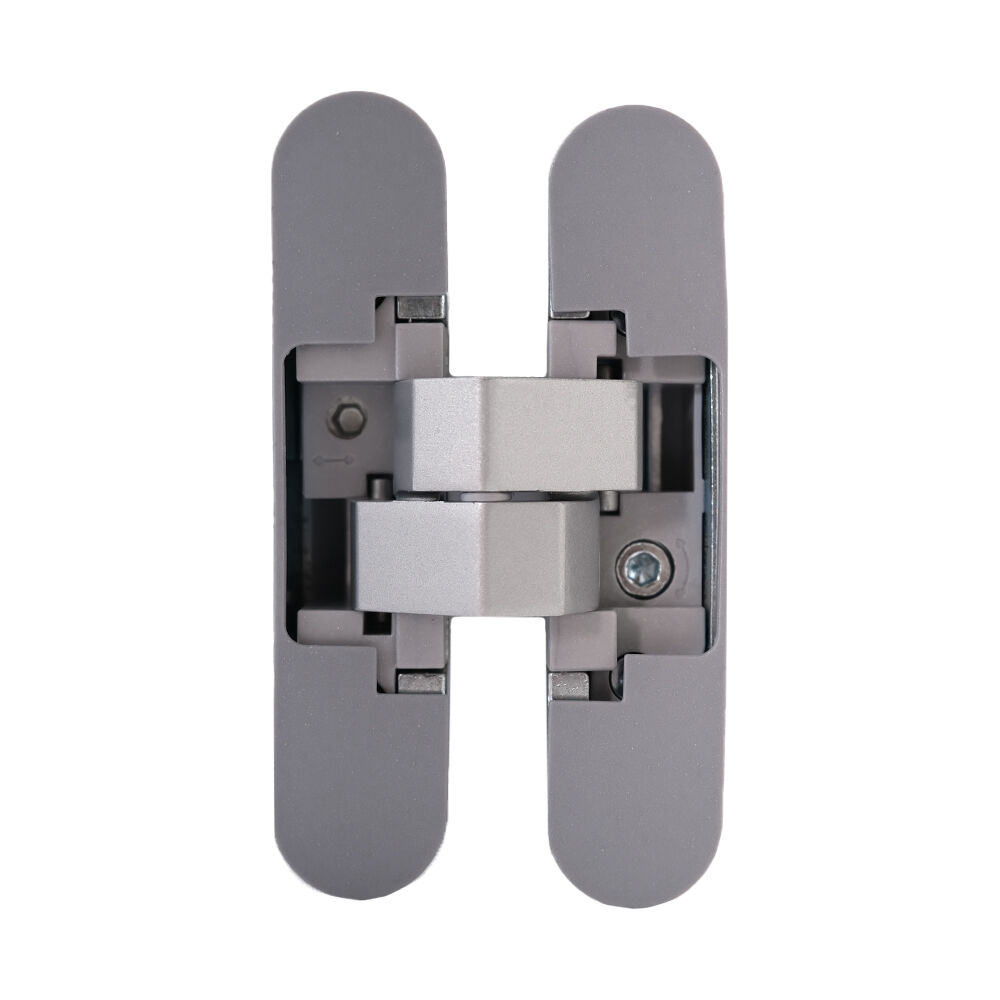

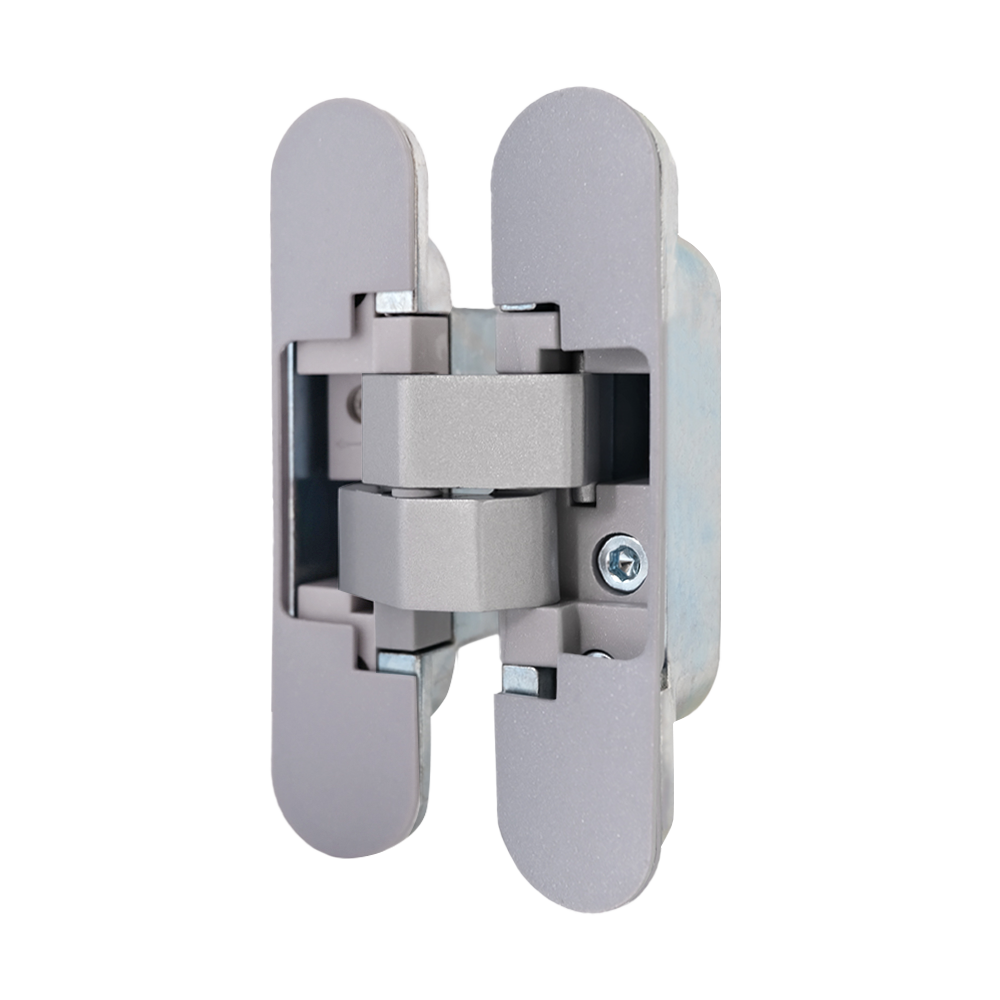

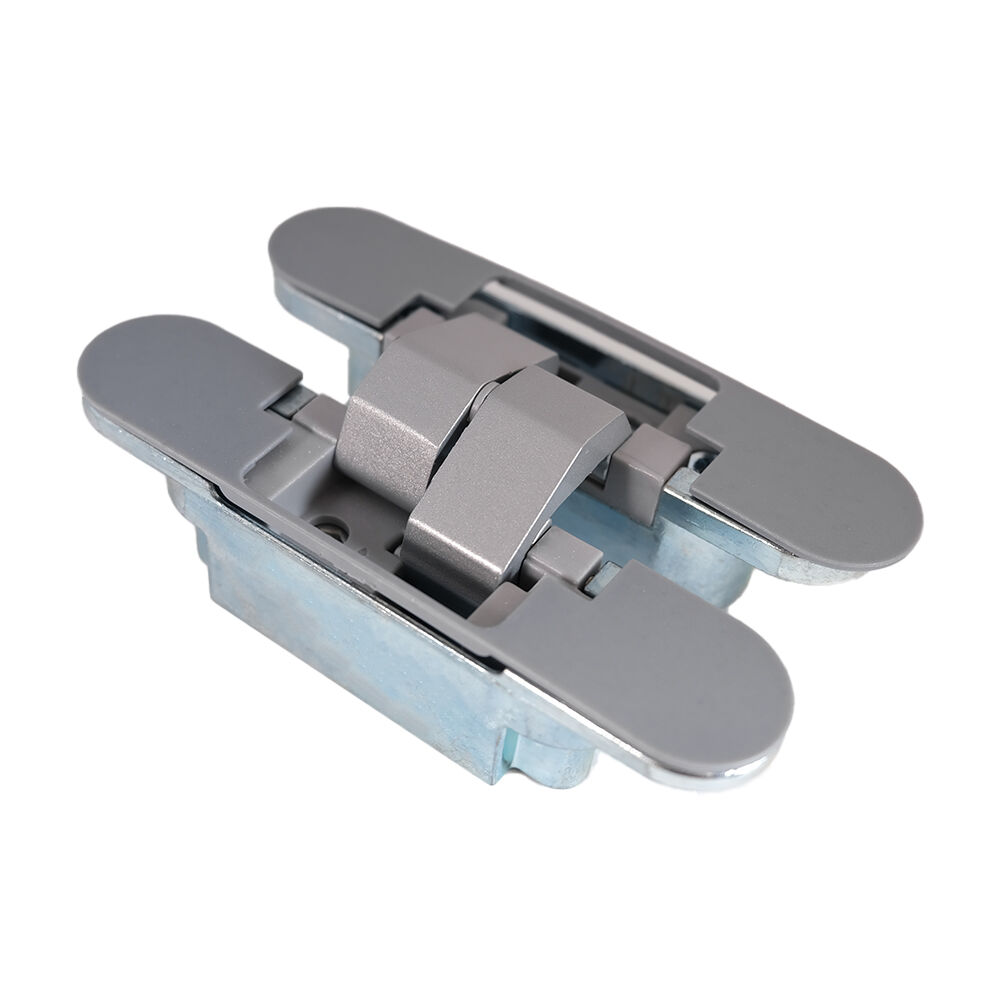

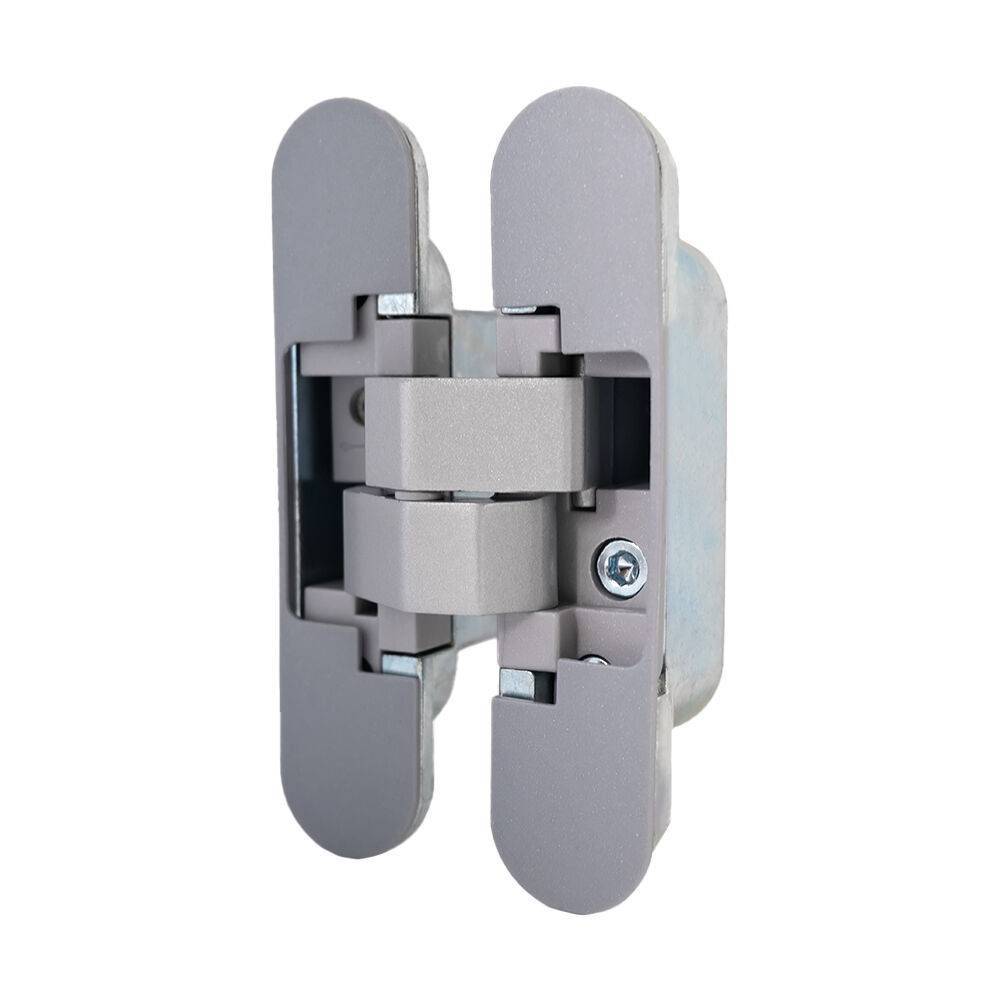

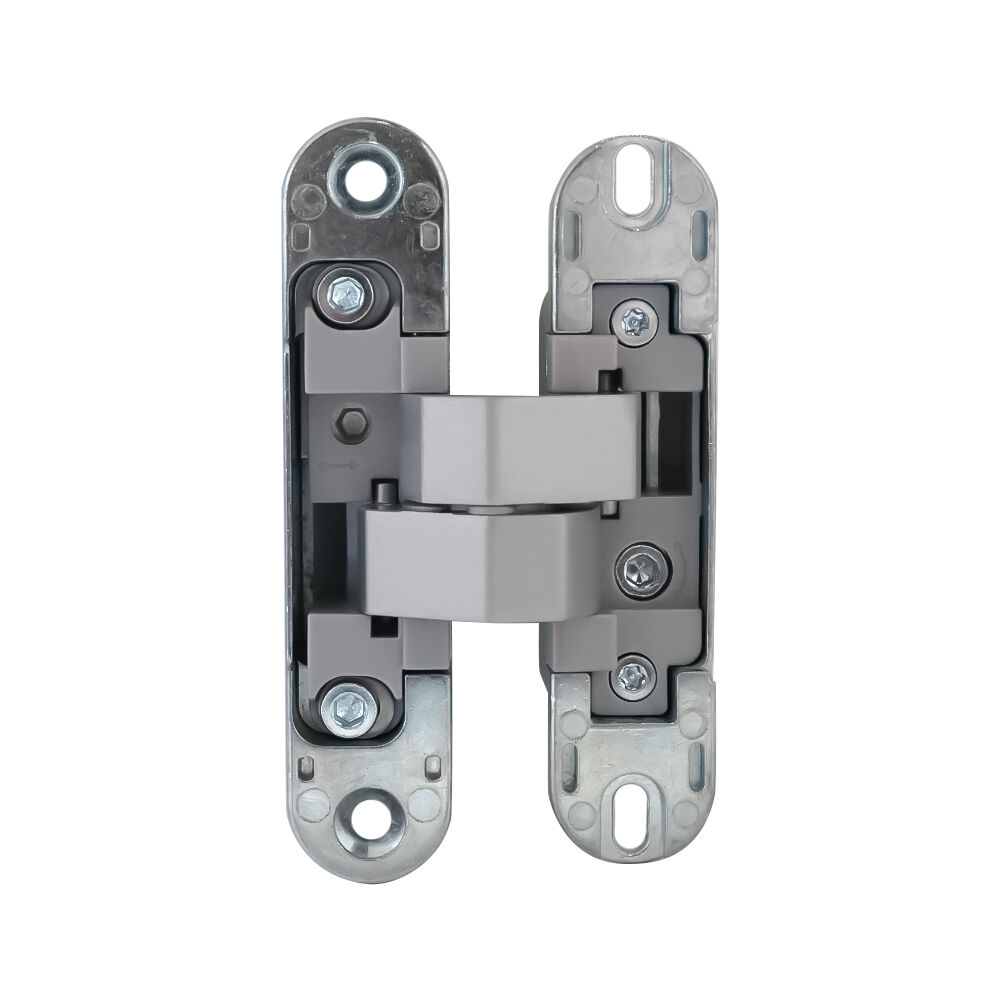

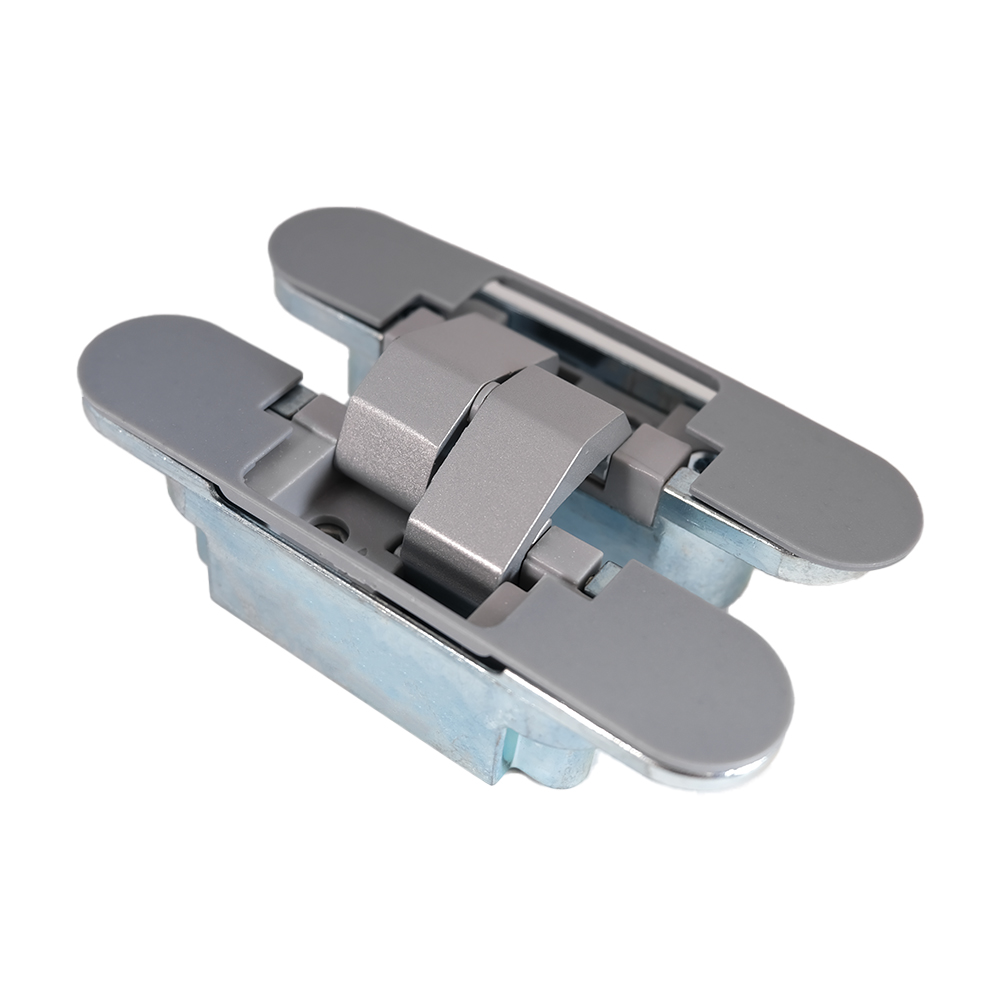

AN140 40KGS L110 W24mm replacemnt  3D ADJUSTABLE HIDDEN HINGE

AN140 40KGS L110 W24mm replacemnt 3D ADJUSTABLE HIDDEN HINGE

·The product is zinc alloy material

· Carry the door weighs 40 kg maximum

· The maximum opening angle is 180 °

· The minimum thickness of door leaf is 35 mm

· Can be realized up and down adjustment ± 2.5 mm

left and right the adjustment + 2.5 / - 2.0 mm, before

and after the adjustment ± 1.0 mm,easy to install and use

  • Overview
  • Parameter
  • Inquiry
  • Related Products

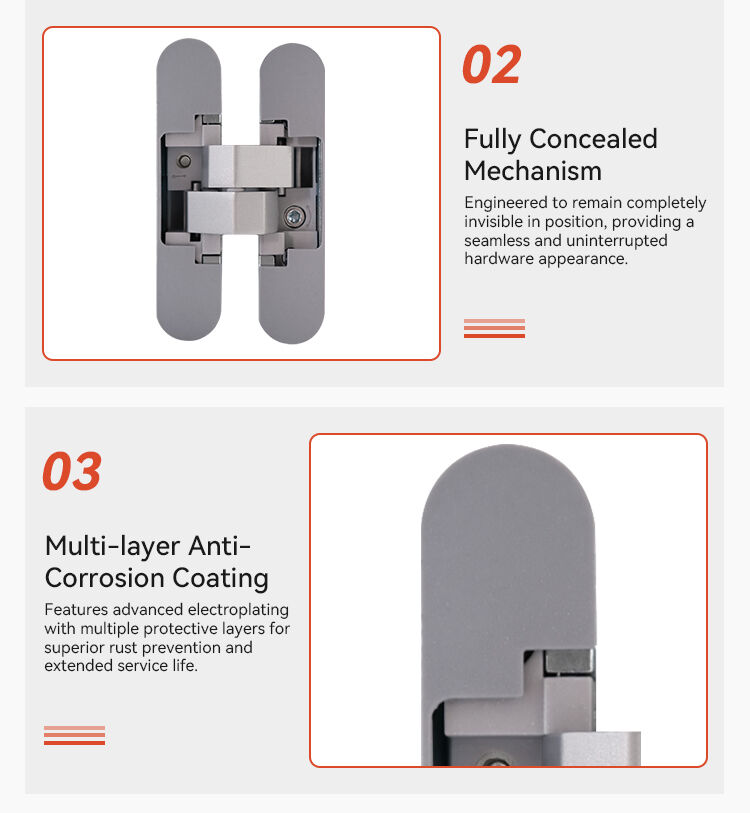

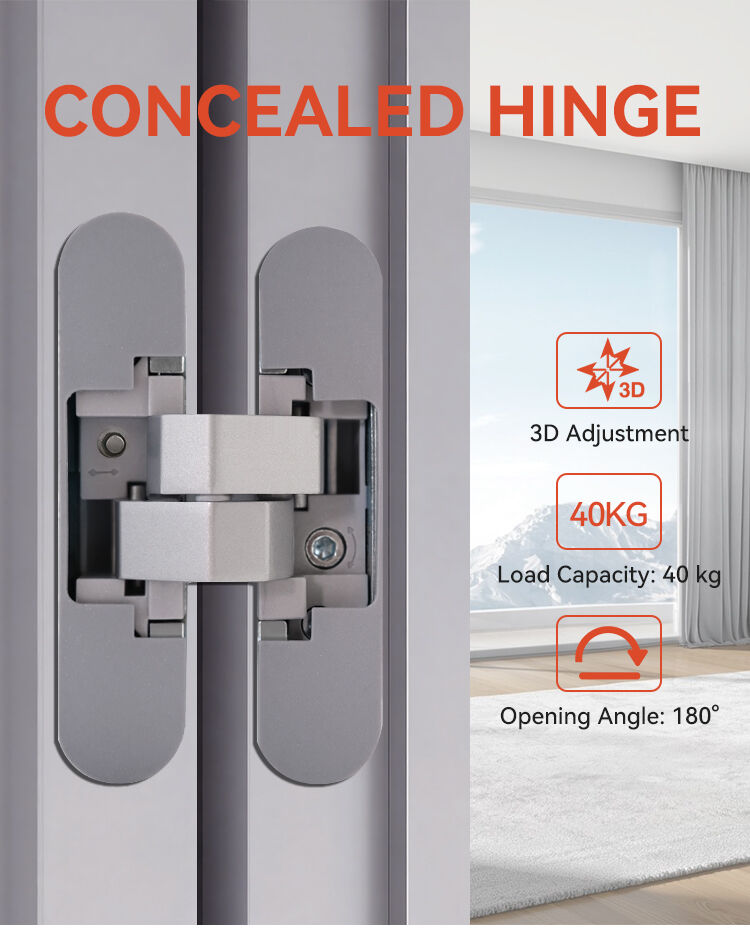

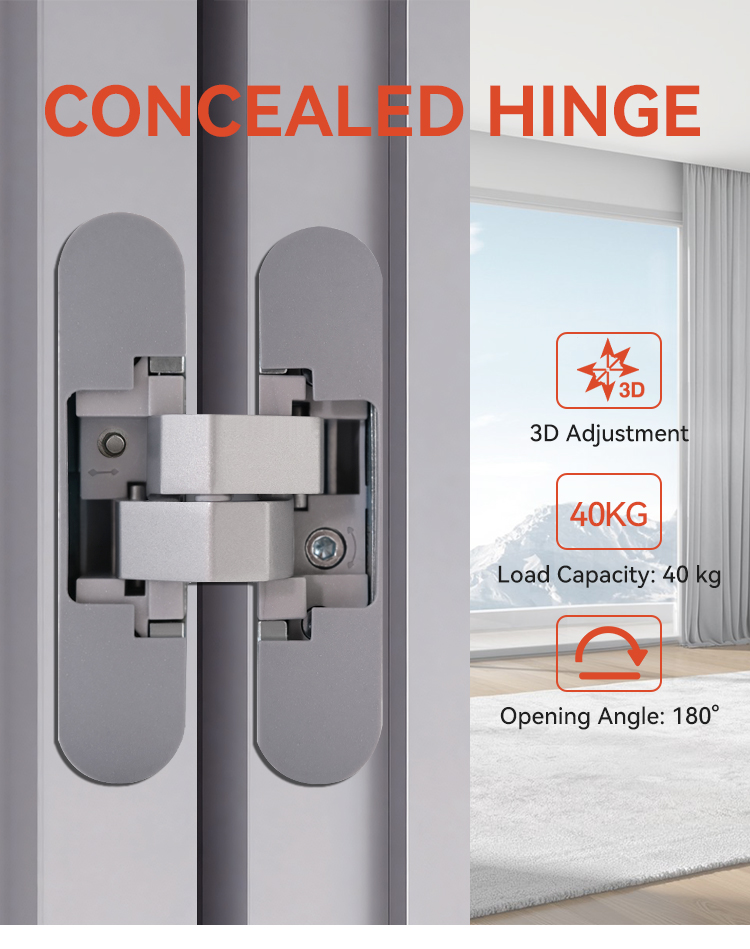

The 3D adjustable door concealed hinges

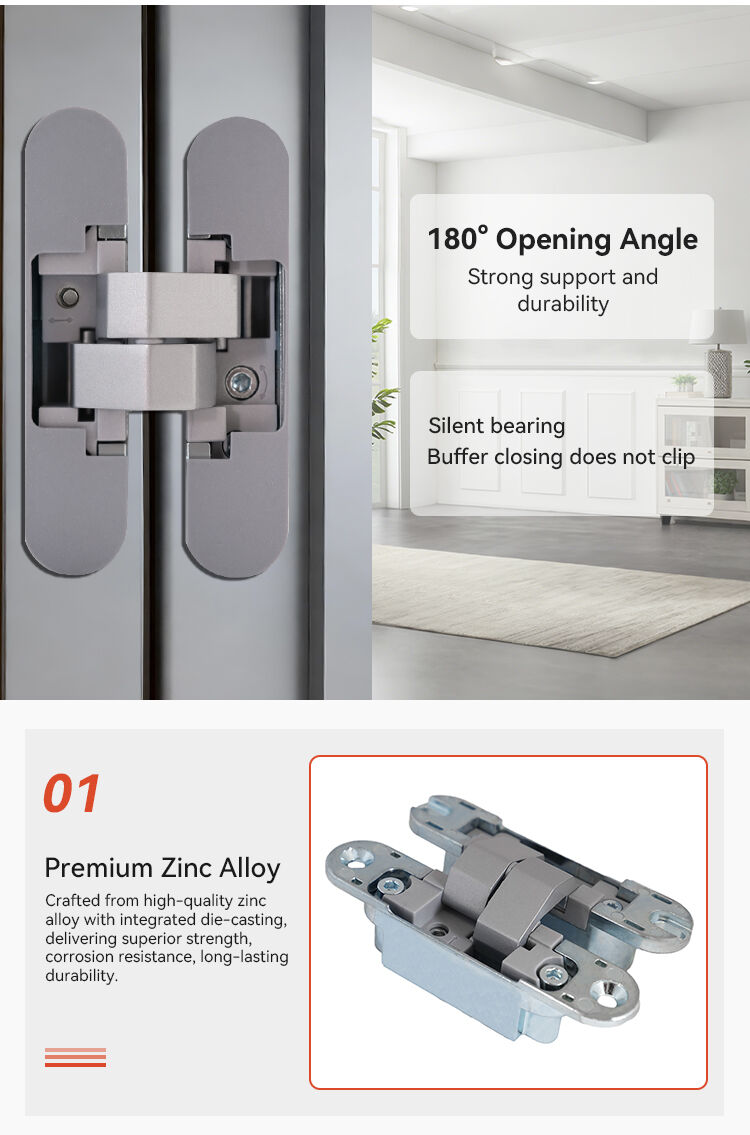

  • The products is zinc alloy #5
  • Carry the door weight:40kgs door
  • The maximum opening angle is 180 degree
  • the mimumum door thickness:30mm
  • Up and down adjsuted:2.5mm
  • left and  right adjustment :2mm
  • before and after adjustment 1mm
  • Easy to install and use

GE35详情页_01.jpgGE35详情页_02.jpgGE35详情页_03.jpgGE35详情页_04.jpgGE35详情页_05.jpgGE35详情页_06.jpgGE35详情页_07.jpg

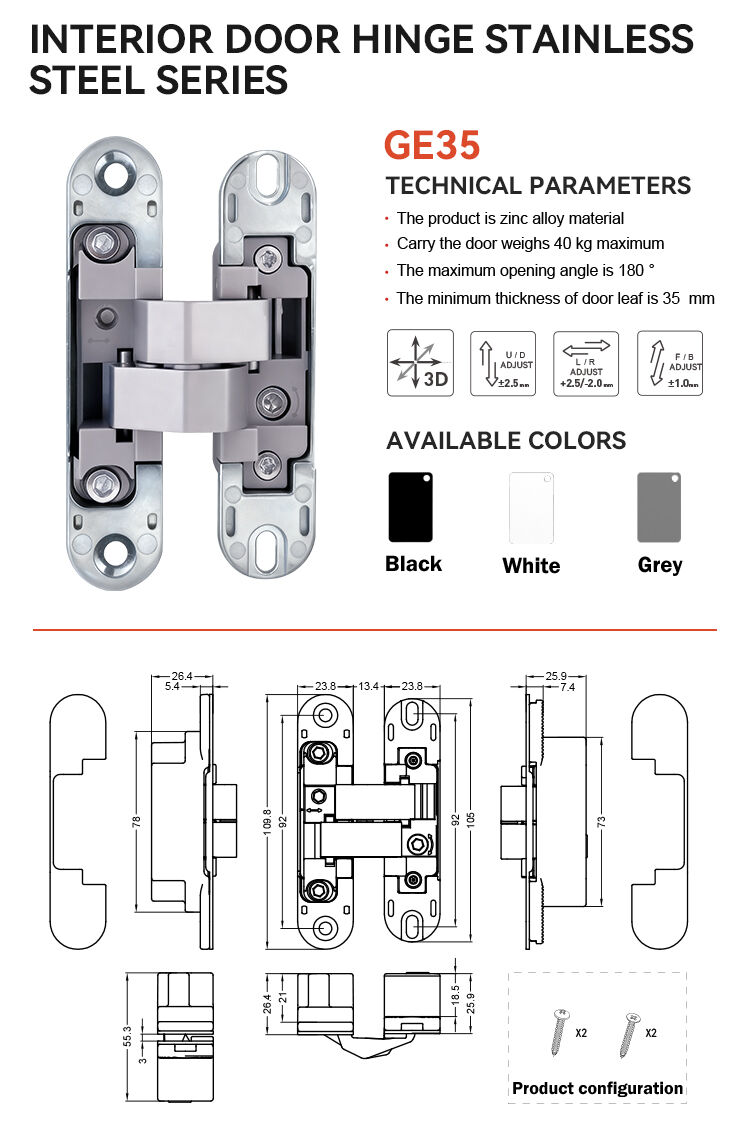

Length(door/frame)

110 / 110 mm

Width(door/frame)

24 / 24 mm

Opening angel

180°
