GE35X 60KG

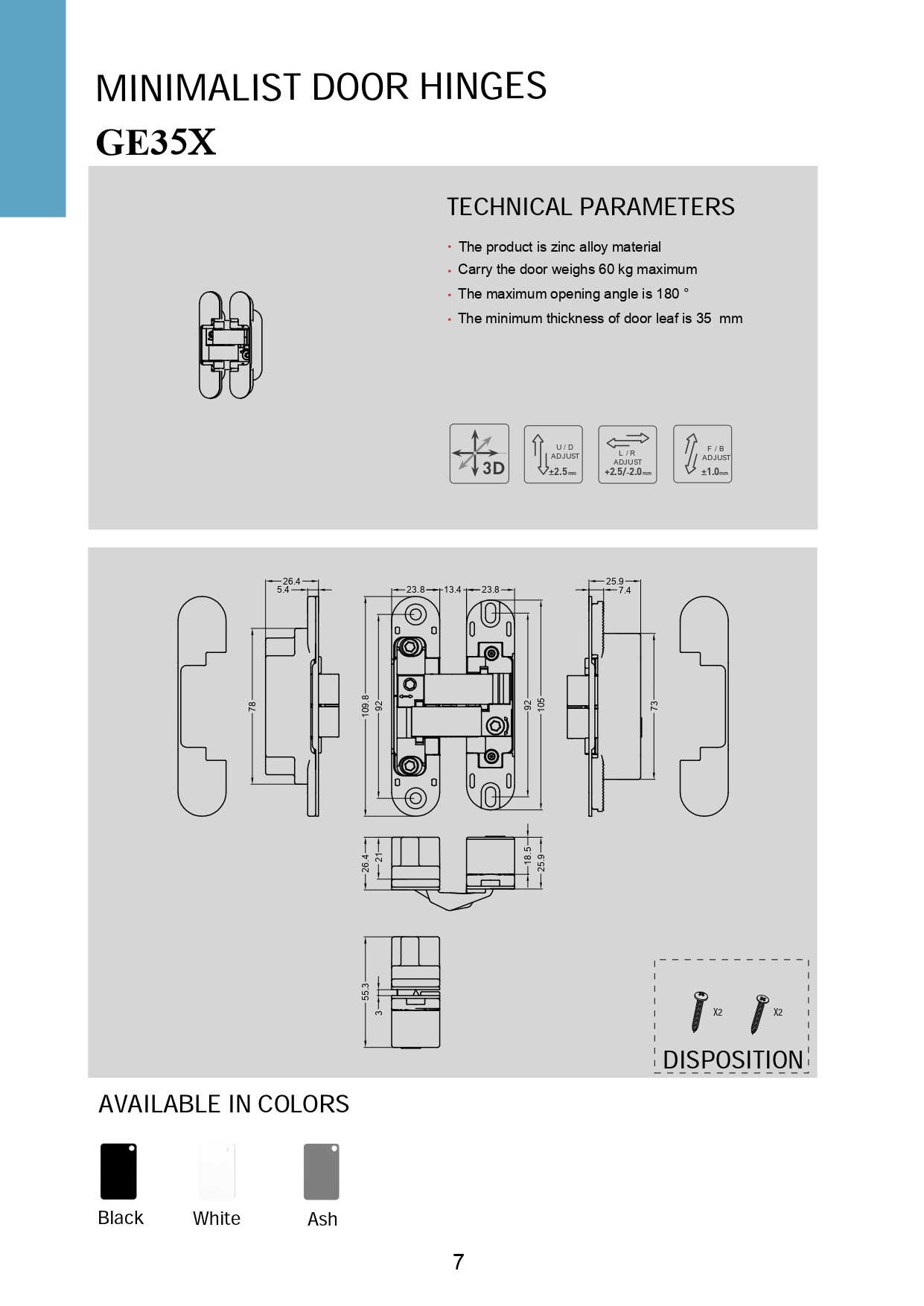

GE35X Minimalist Door Hinge
The GE35X is a premium, 3D adjustable minimalist concealed door hinge engineered from durable zinc alloy. Designed for inner doors, it supports a maximum door leaf weight of 60 kg with a minimum thickness requirement of 35 mm.
Key Technical Specs & Features
-
Maximum Opening: 180°
-

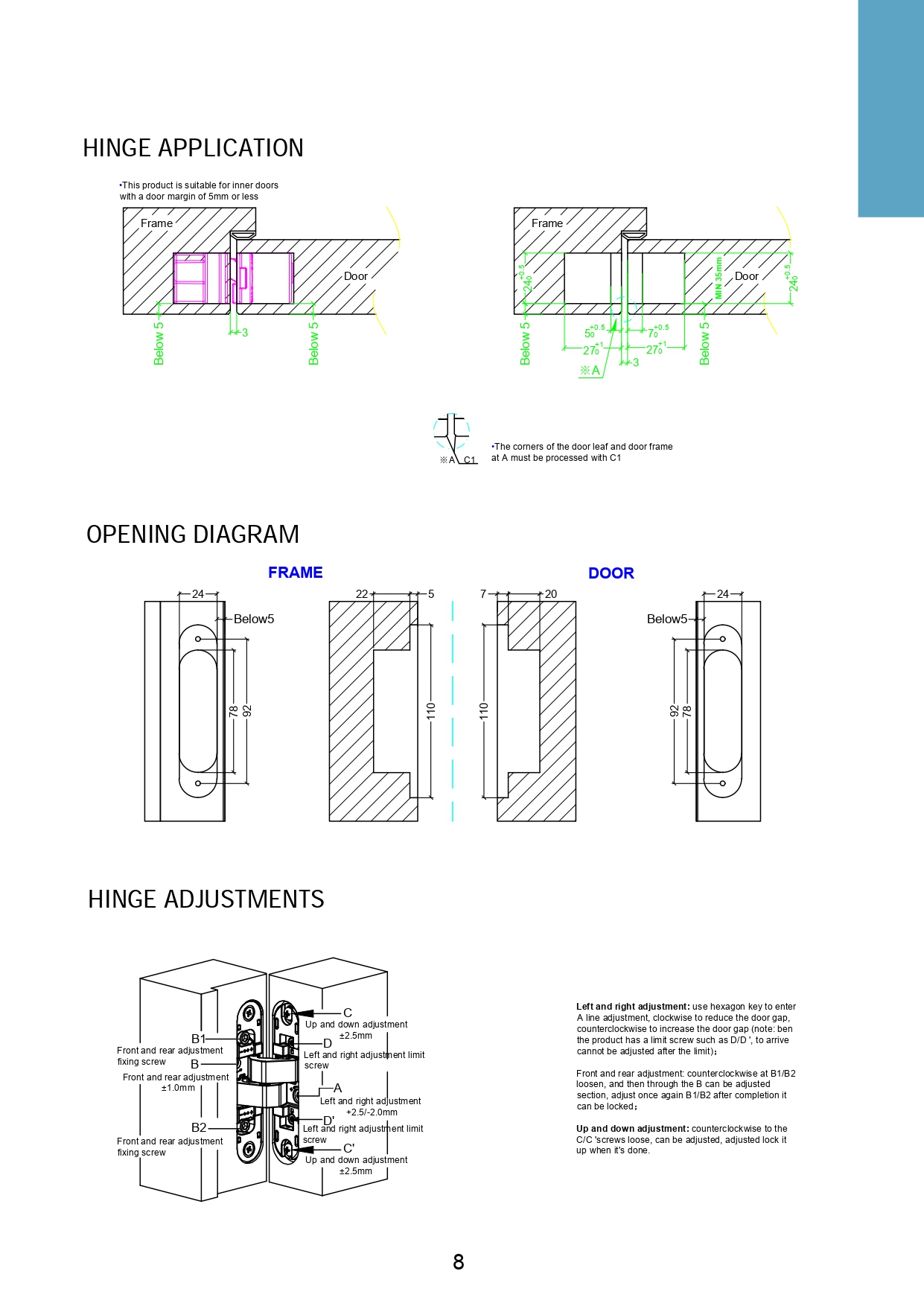

3D Adjustability:
-
Up/Down: ± pm2.5mm
-
Left/Right: +2.5mm -2.0mm
-
Front/Rear: ±1mm
-
-
Application: Perfect for clean aesthetics with a door margin under 5 mm. Available in Black, White, and Ash finishes.
