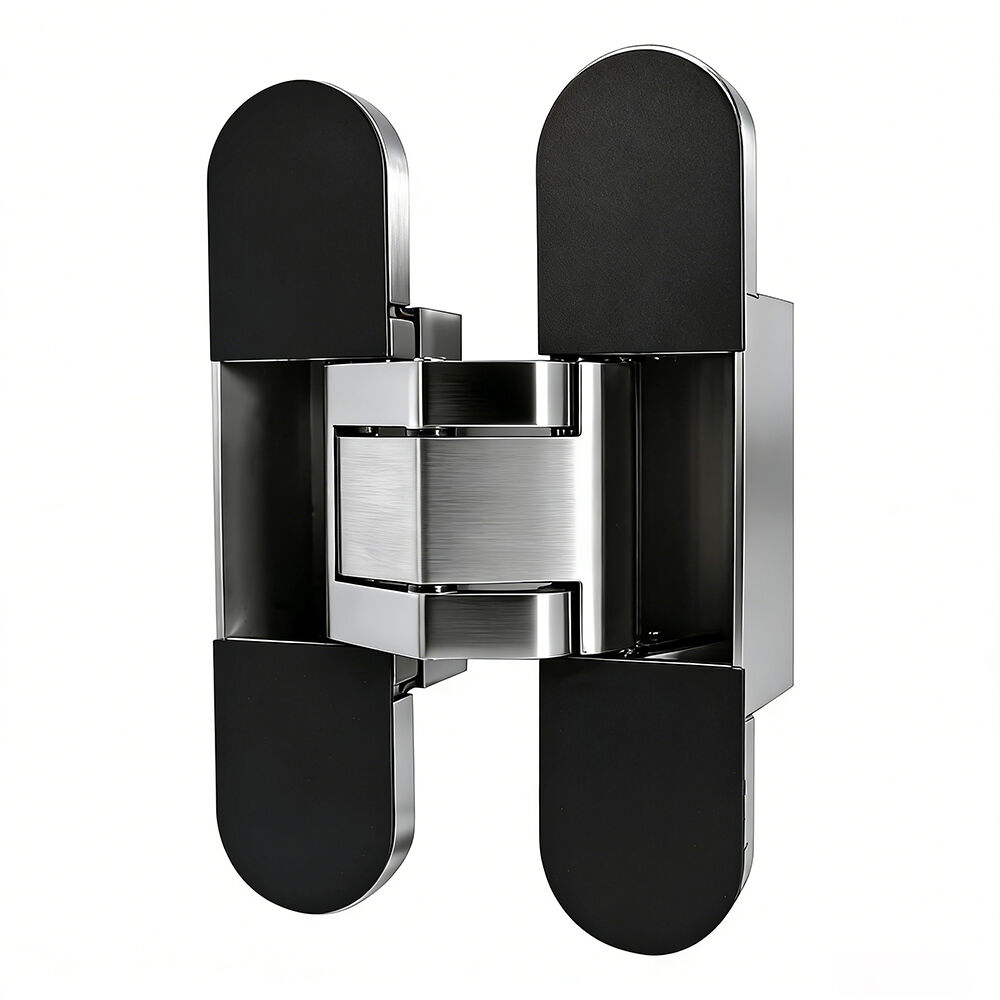

GD235 fireproof door hinges 200KGS Stainless Steel SS304 3D door conceal hinges

Introducing the 2D 55mm Door Leaf Thickness Hidden Hinge-GD235, a superior hinge designed for versatility and ease of use.

This hinge is constructed from SUS304 material, renowned for its durability and corrosion resistance, ensuring a long-lasting performance. It can support doors weighing up to 200 kg, making it suitable for a broad range of applications.

The hinge features a 135° maximum opening angle, providing ample space for door operation. It is compatible with doors having a minimum thickness of 55 mm, offering flexibility in door design.

One of the key advantages of this hinge is its adjustability. It allows for an up and down adjustment of ± 2.5 mm and left and right adjustment of ± 2.0 mm. This feature ensures a smooth operation and makes the installation process easy and convenient.

In addition, the hidden design of the hinge offers a sleek and seamless look, enhancing the aesthetic appeal of your doors.

In summary, the 2D 55mm Door Leaf Thickness Hidden Hinge-GD235 combines robust material, high weight capacity, wide opening angle, adjustability, and a hidden design, making it an excellent choice for your door installation needs. Its superior features and easy installation process make it a standout product in its category.
