GE55 60KG

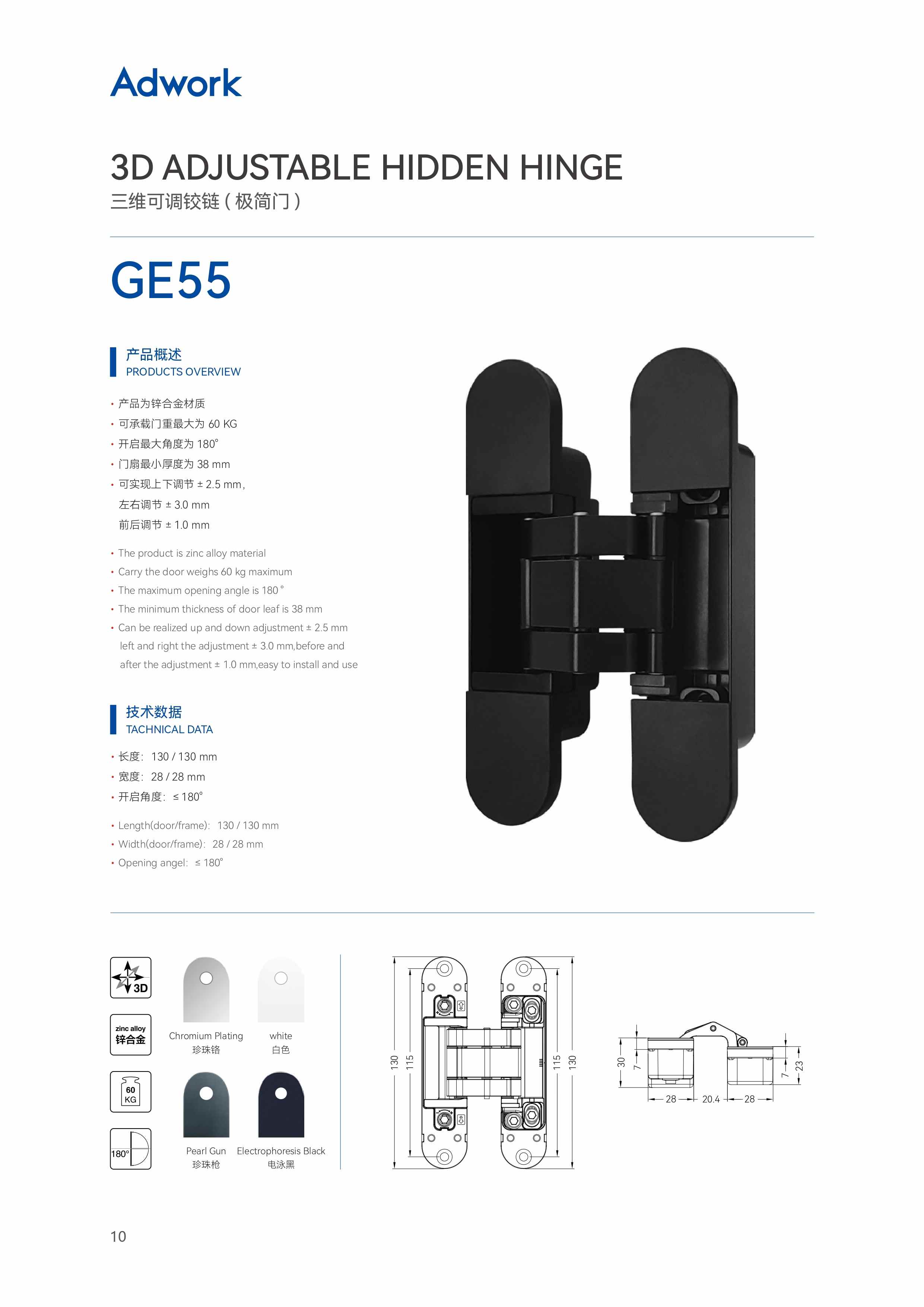

GE55 is an Adwork 3D adjustable hidden hinge made of durable zinc alloy for minimalist doors. It supports a maximum door weight of 60 kg with a minimum door leaf thickness of 38 mm.
Key Technical Specs:
-
Maximum Opening: Offers a full 180° opening angle.
-
Dimensions: Features a length of 130 mm and a width of 28 mm for both door and frame.
-
3D Adjustability: Features Up/Down ± 2.5mm, Left/Right ± 3.0mm and Front/Rear ± pm1.0 manual adjustments for smooth installation.
-
Finishes: Available in Chromium Plating, White, Pearl Gun, and Electrophoresis Black.
- Overview
- Parameter
- Inquiry
- Related Products
Features:

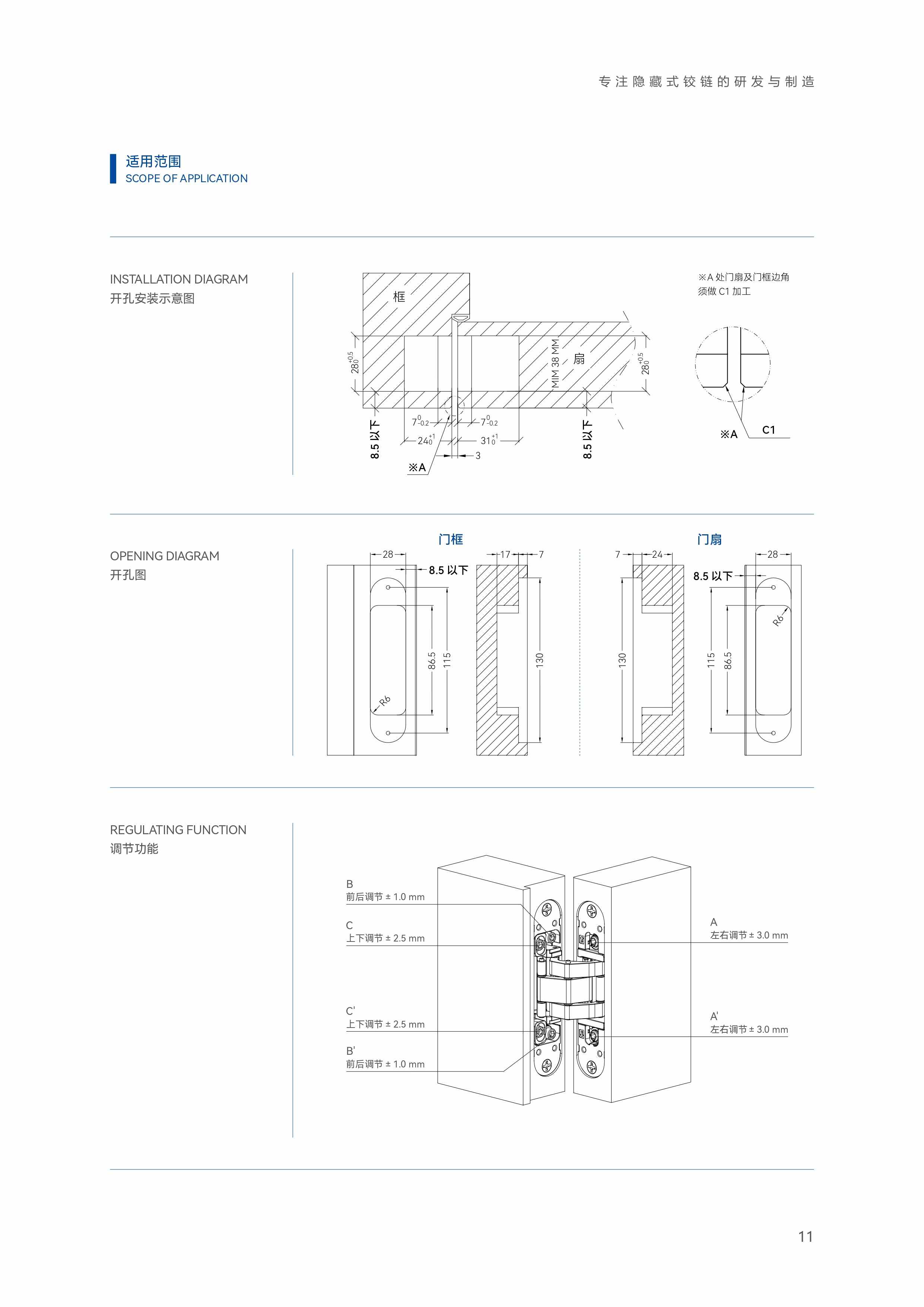

It could be installed into the door middle :hinge to door edge <8.5mm
