GE100 100KG

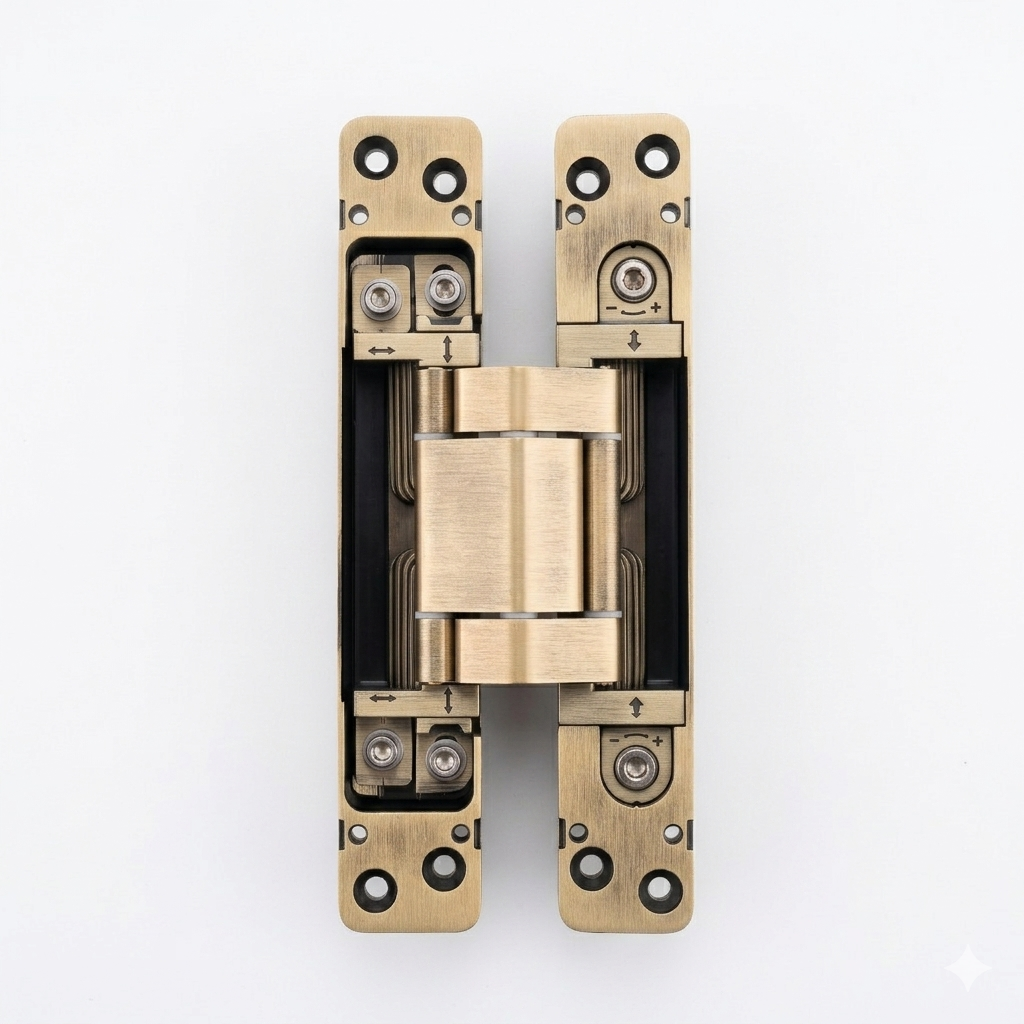

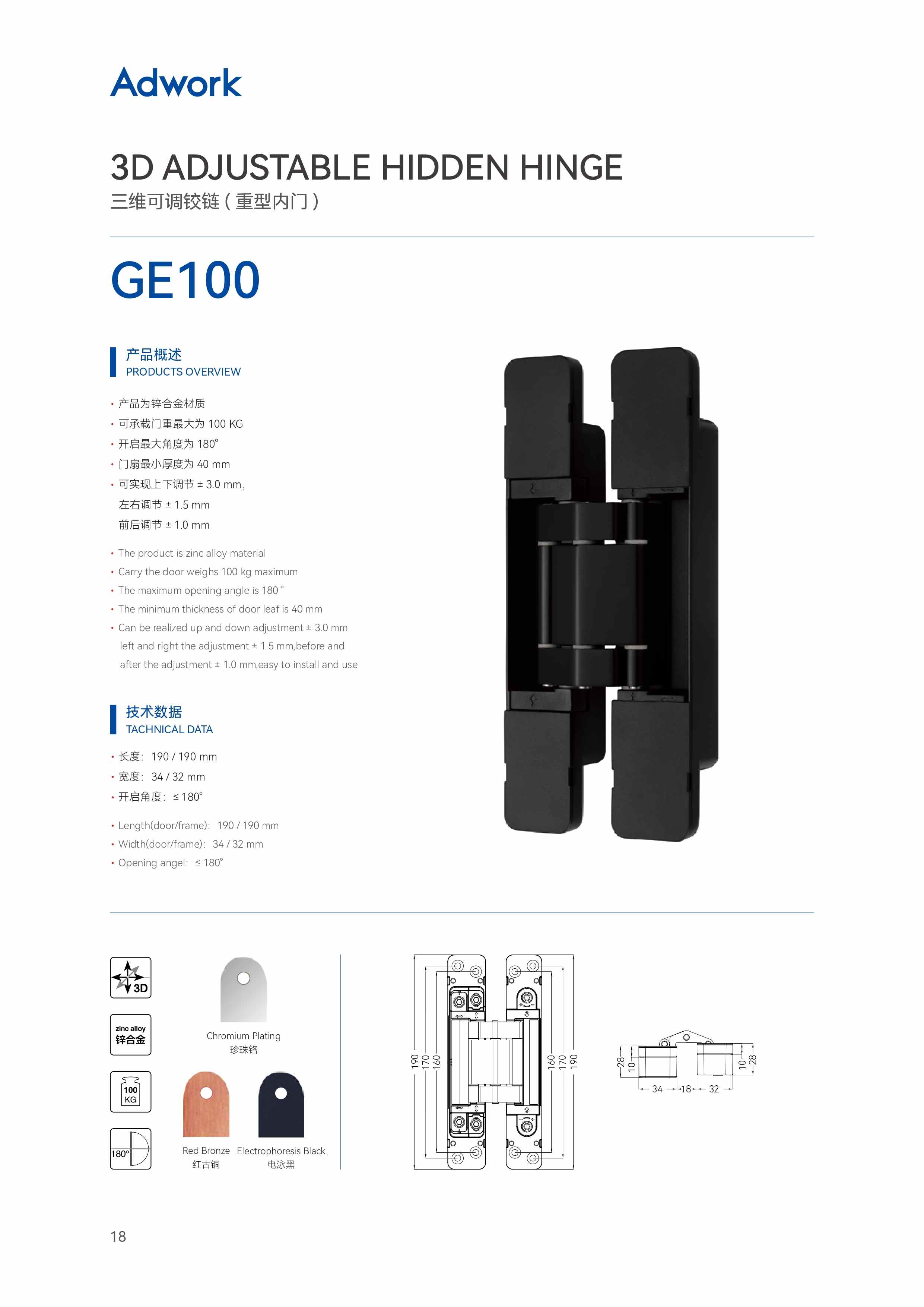

GE100 is a heavy-duty, 3D adjustable hidden hinge made of zinc alloy for interior doors. It is engineered to carry heavy doors weighing up to 100 kg with a minimum thickness of 40 mm.
Key Technical Specs:
-
Maximum Opening: 180 degree angle
-
Dimensions:190mm length and 34 / 32mm door/frame width.
-

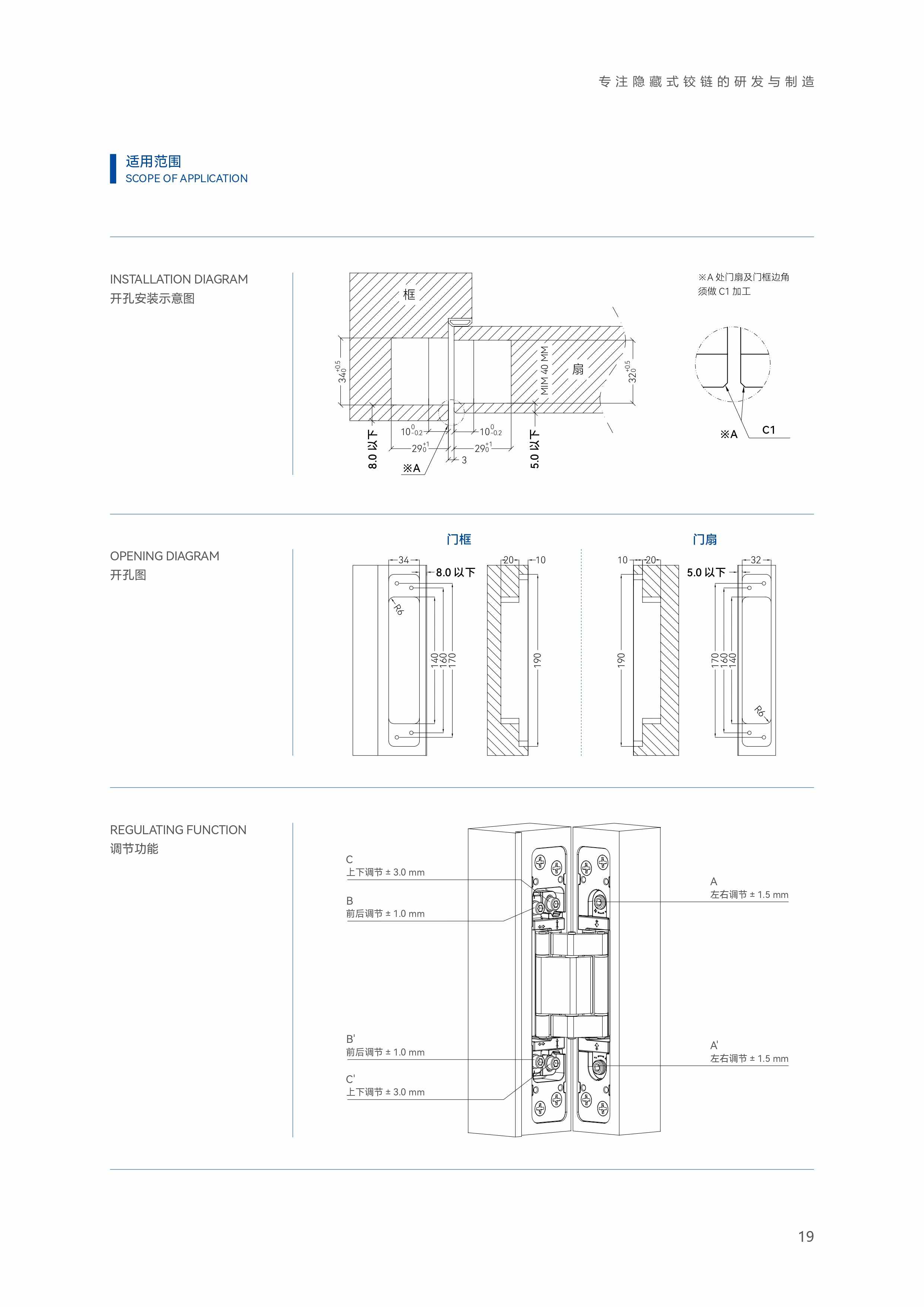

3D Adjustability: Up/Down ± 3.0 mm , Left/Right ± 1.5\text mm, and Front/Rear ± 1.0 mm for effortless alignment.
-

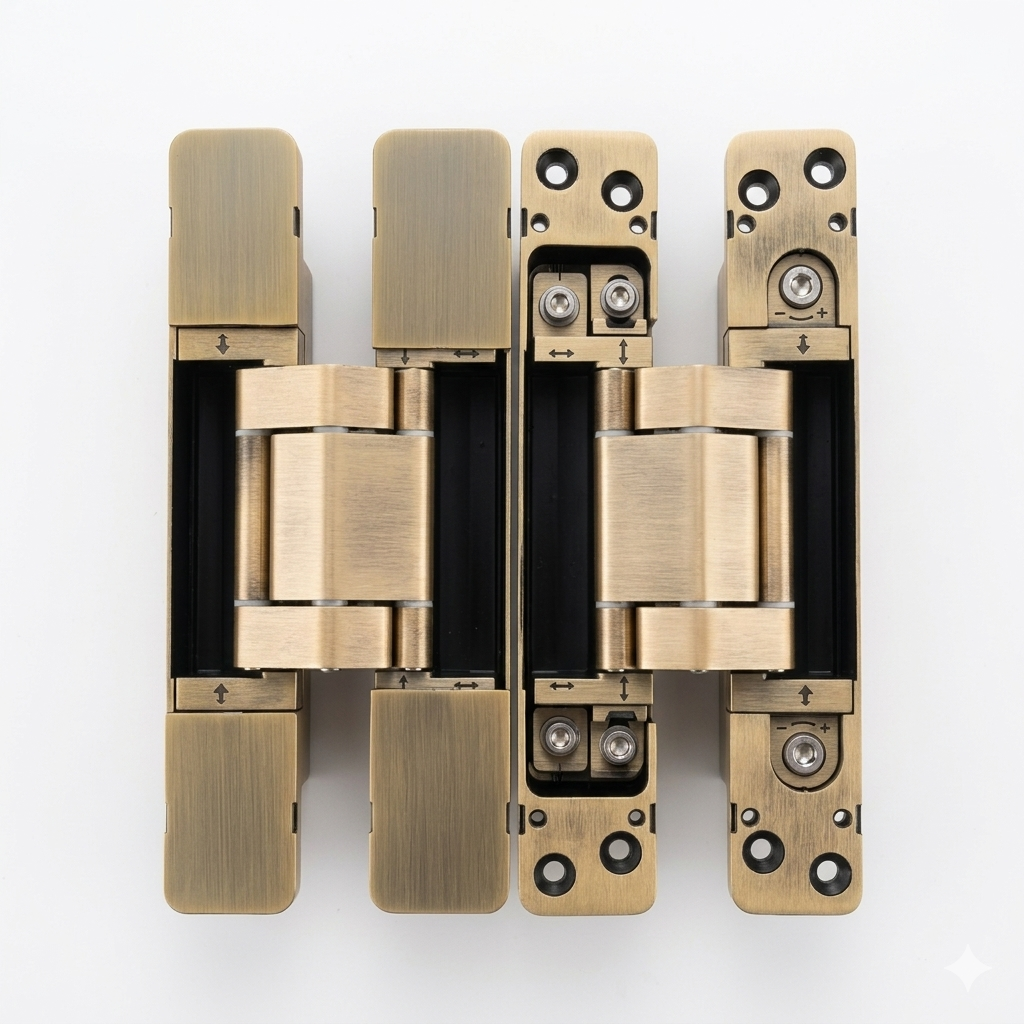

Finishes: Available in Chromium Plating, Red Bronze, and Electrophoresis Black.
- Overview
- Parameter
- Inquiry
- Related Products
| material | zinc alloy#5 |
| maximum loading | 100kgs |
| max open angle | 180 degree |
| 3D ajdust | up/down, left/right,front/rear |
