304 Stainless Steel Material

Home >  Products  >  3D Concealed Door Hinge  >  304 Stainless Steel Material

All

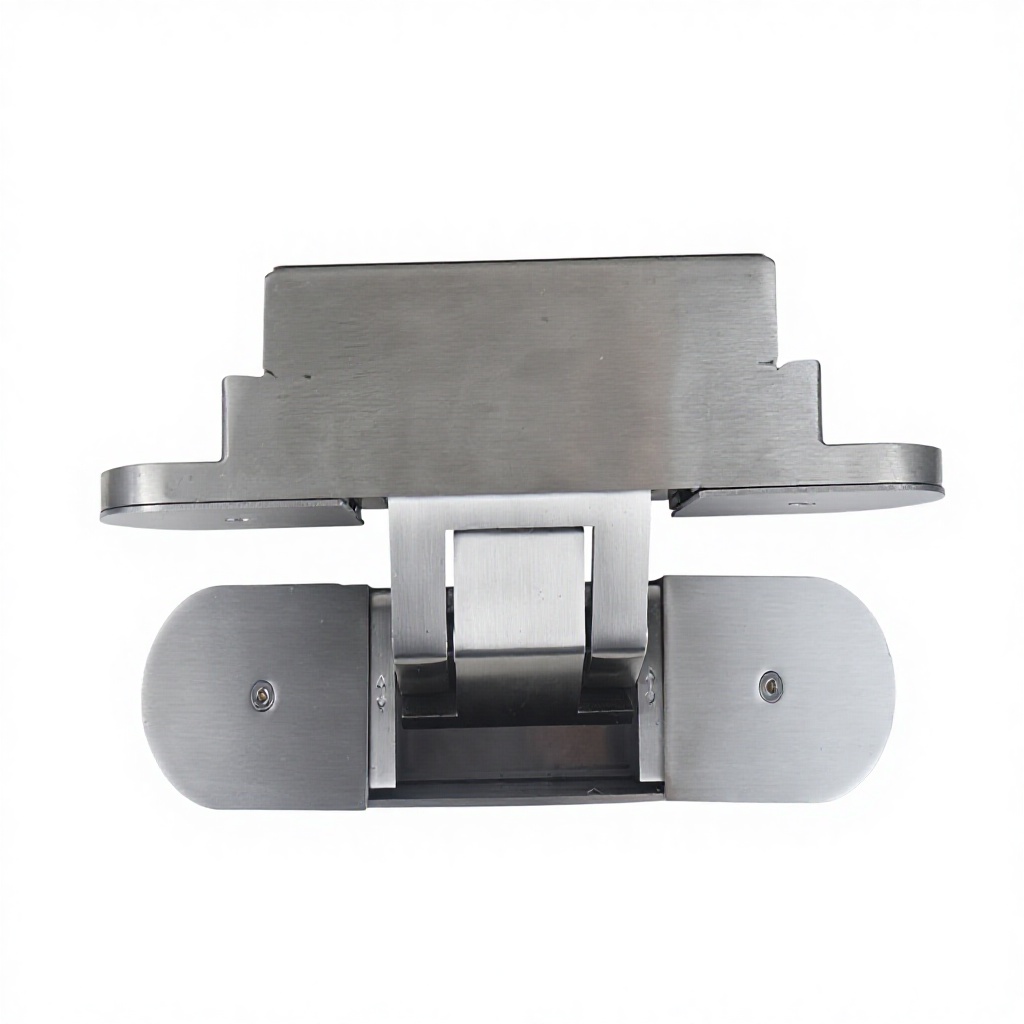

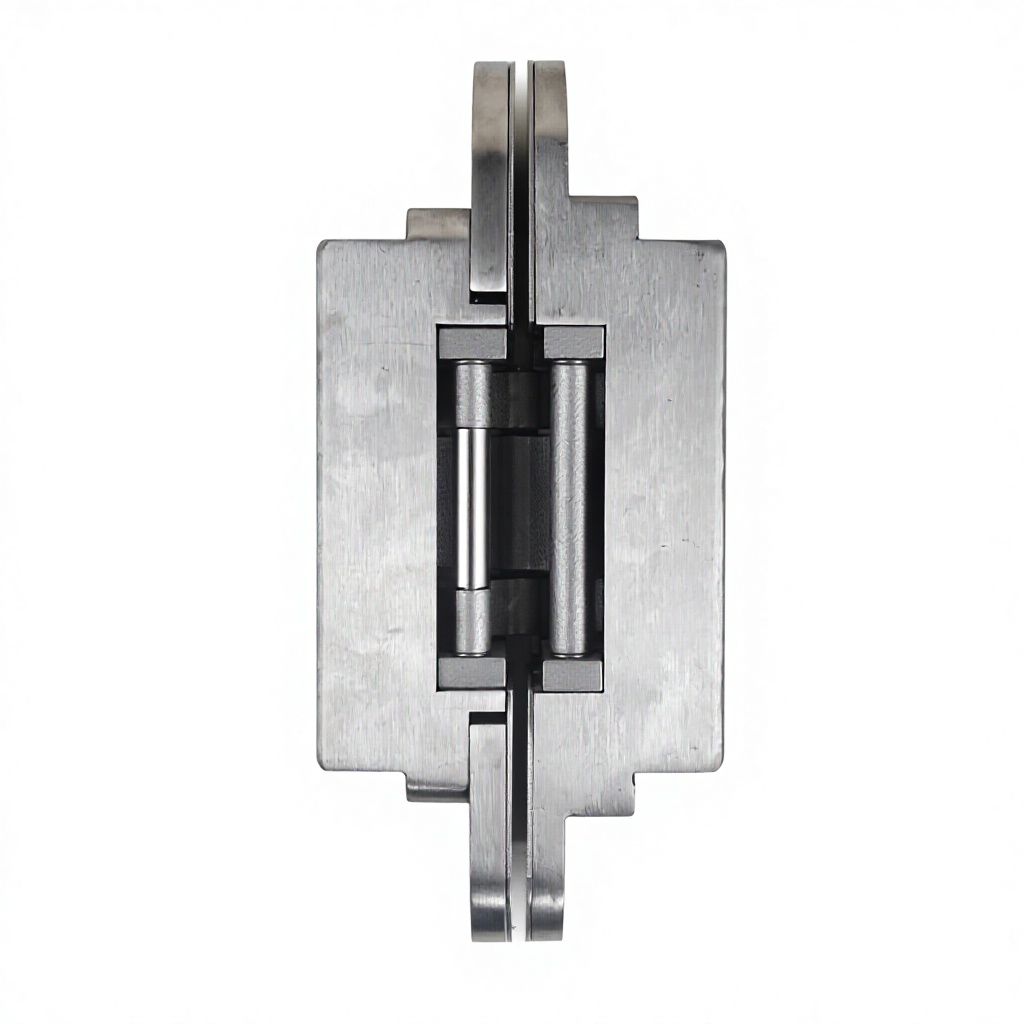

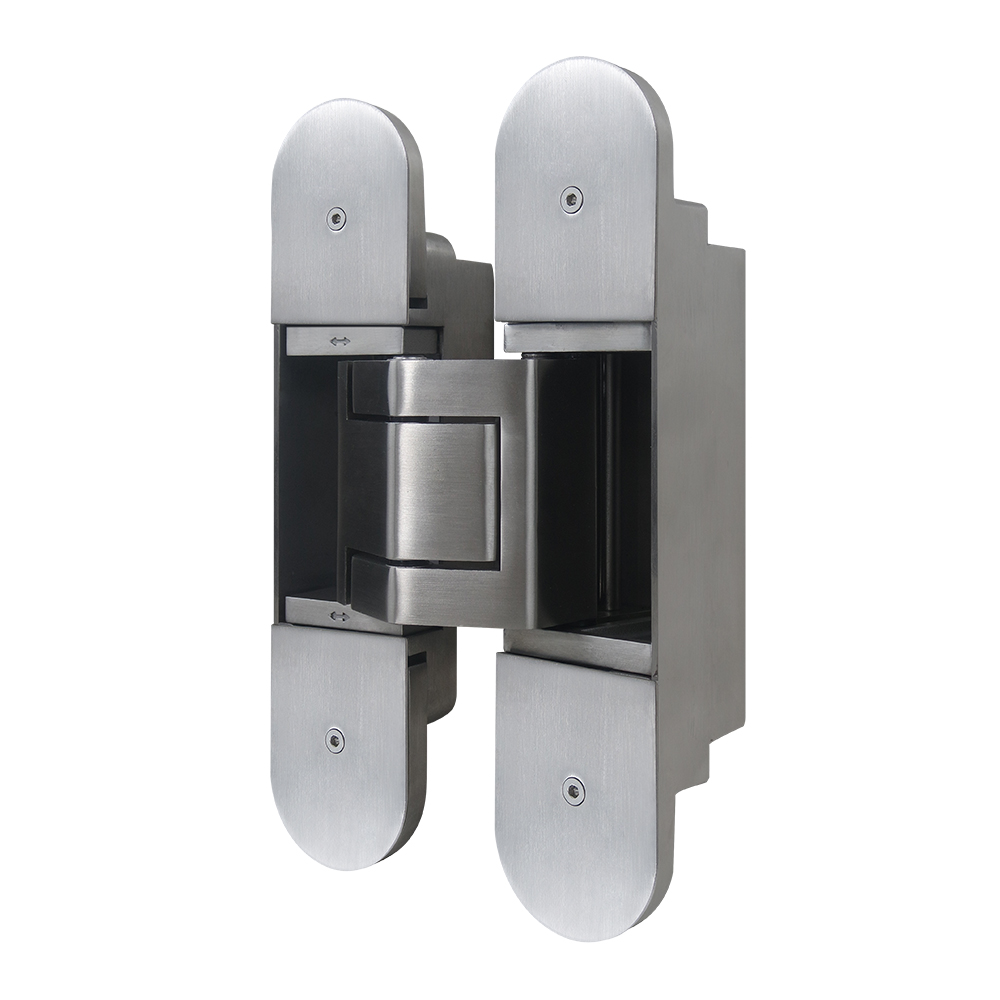

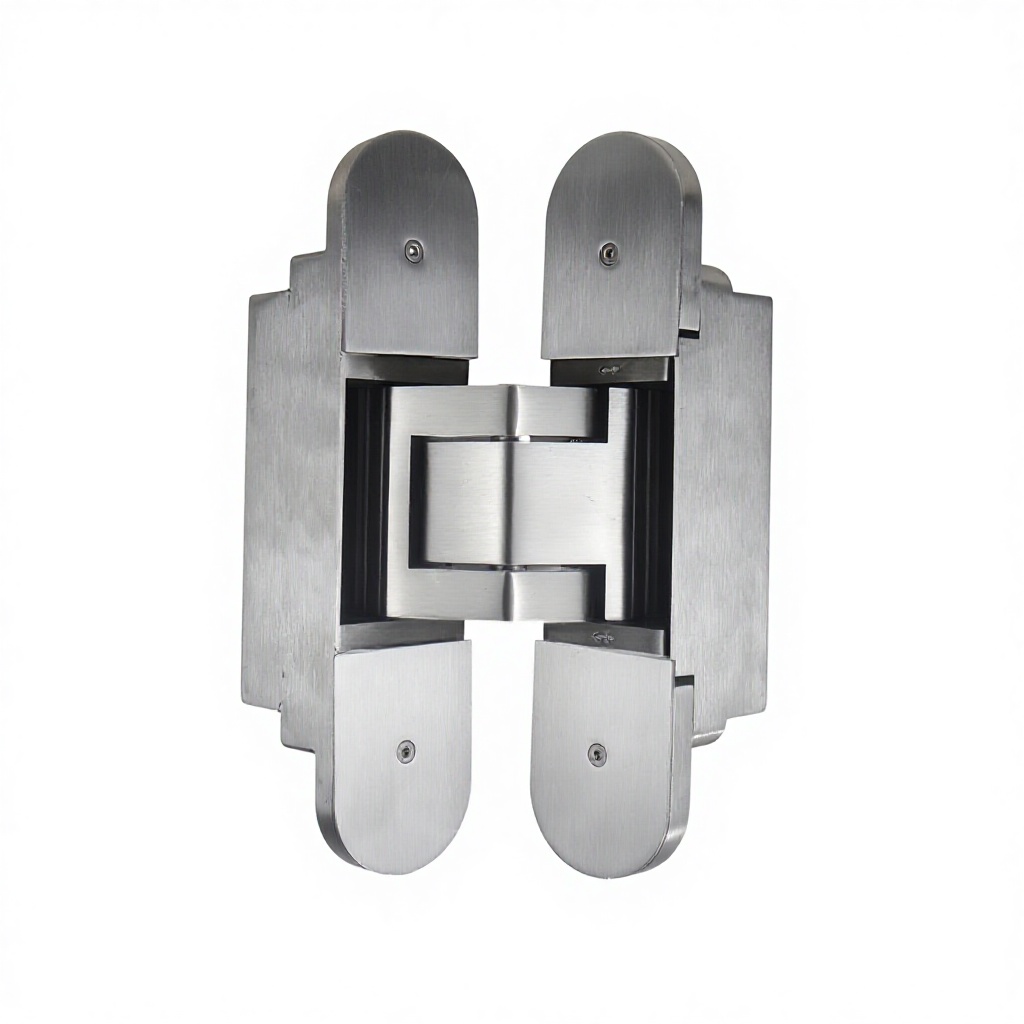

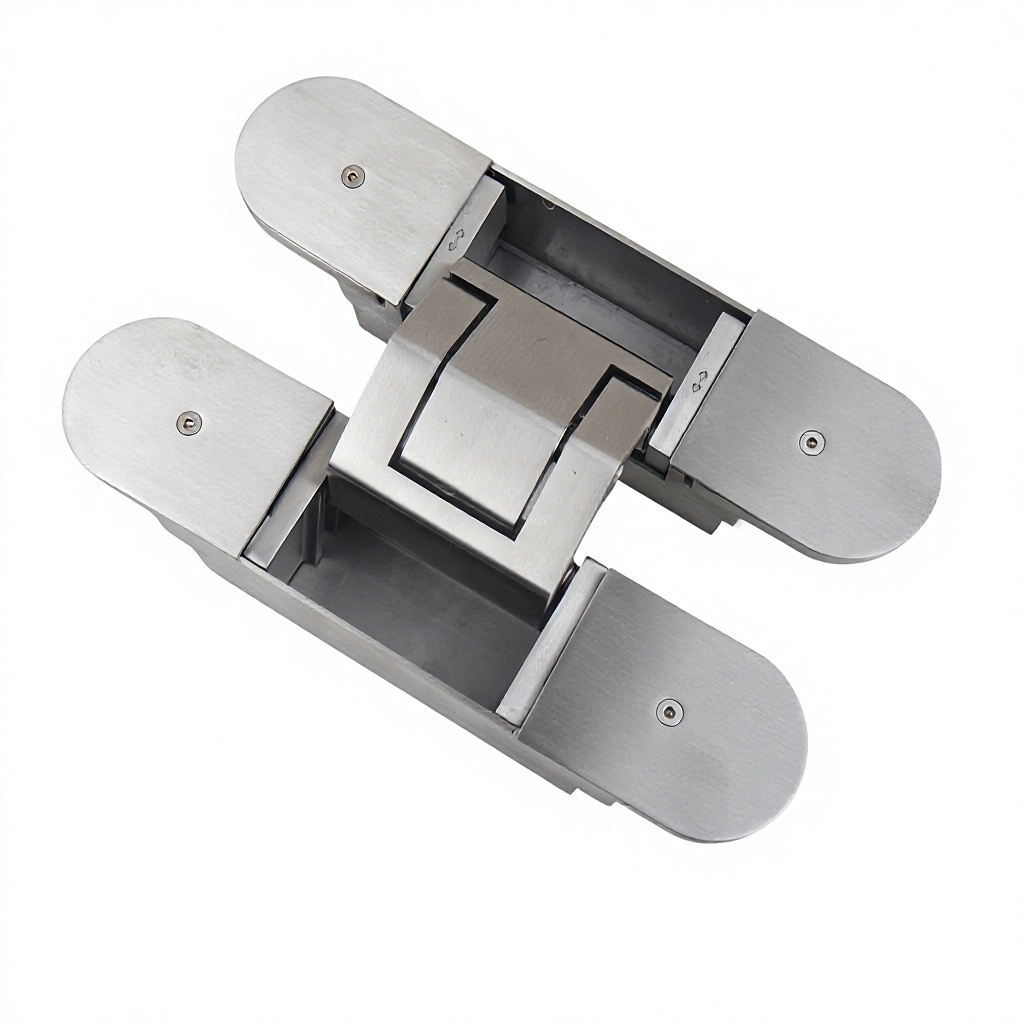

GD300 200KG

GD300 200KG

  • 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
  • Easy installation with LIFT-OFF FEATURE: can be split into two parts (one for the frame and one for the flap), can temporarily be hung and hold position without being affixed with screws.
  • Successfully passed 200,000 open/close private cycle tests.
  • EN1634 Rated, up to 2 Hours.
  • Stainless Steel SUS304
  • Covers hide all screw heads for clean appearance.
  • Door weight : 2hinges for 200KGS 3hinge for 220-240kgs
  • Door Thickness :60mm
  • Max. Door Size : H 2400 mm (94-1/2") × W 915 mm (36").
  • Fast delivery from JISHENG manufacturer
  • Available color:satin or black
Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG
GD300 200KG

Item material:SUS304 material

Loading:200kgs for 2hinges

Size:L230 W51mm

3D adjusted

EN634 Fire rated yes

Specification as following:


Length(door/frame)

230 / 230 mm

Width(door/frame)

51 / 51 mm

Opening angel

≤ 180°
