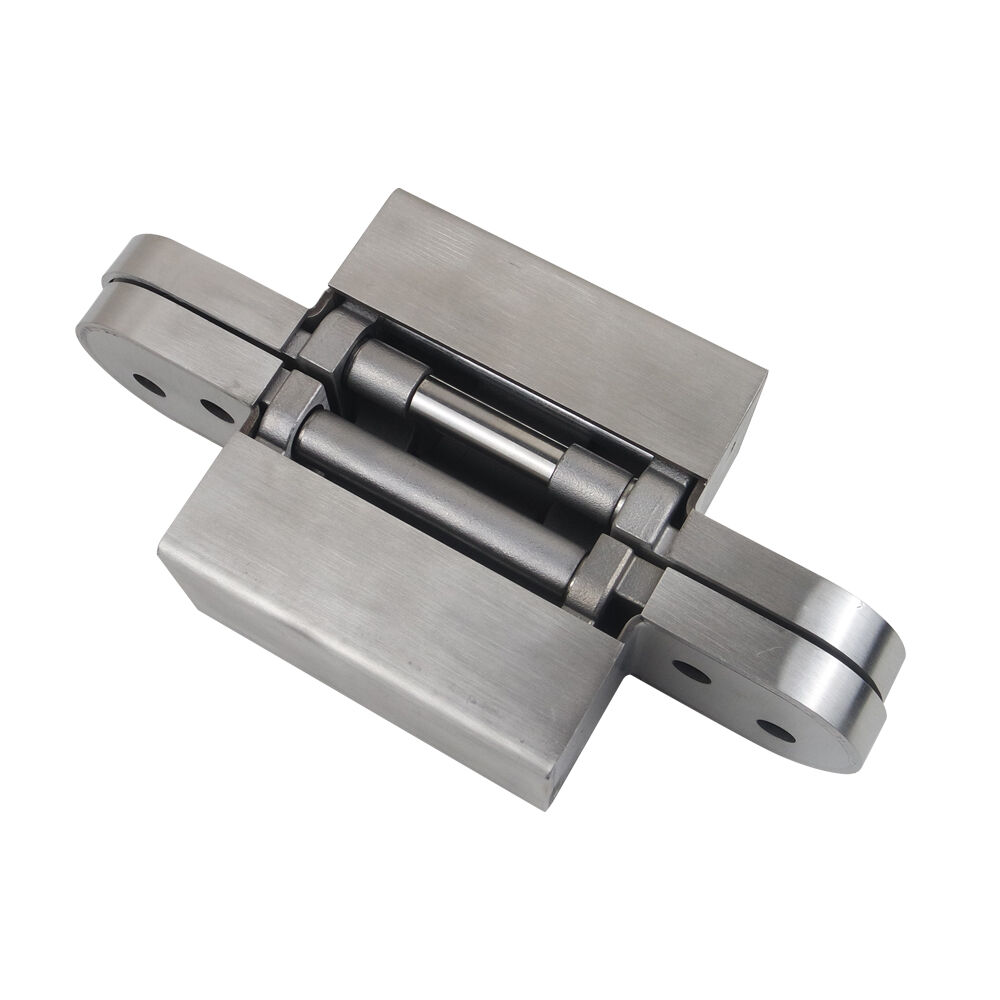

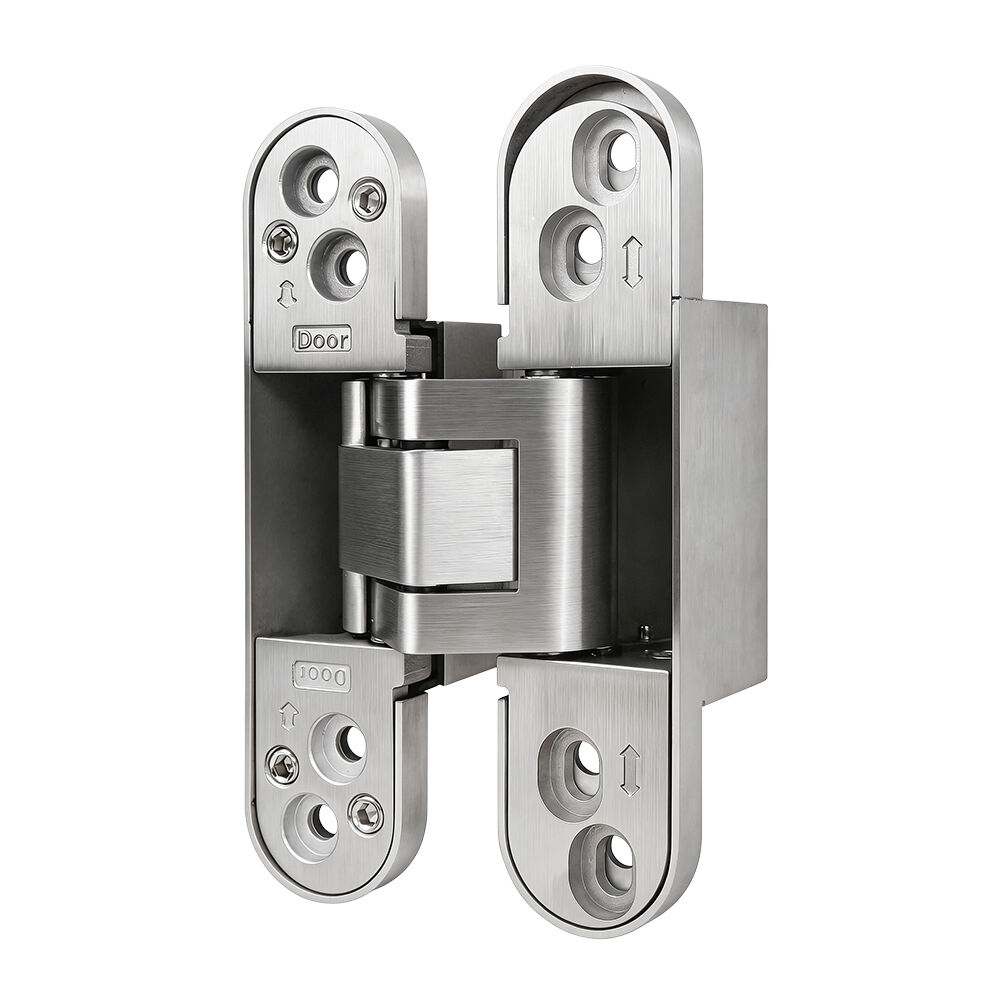

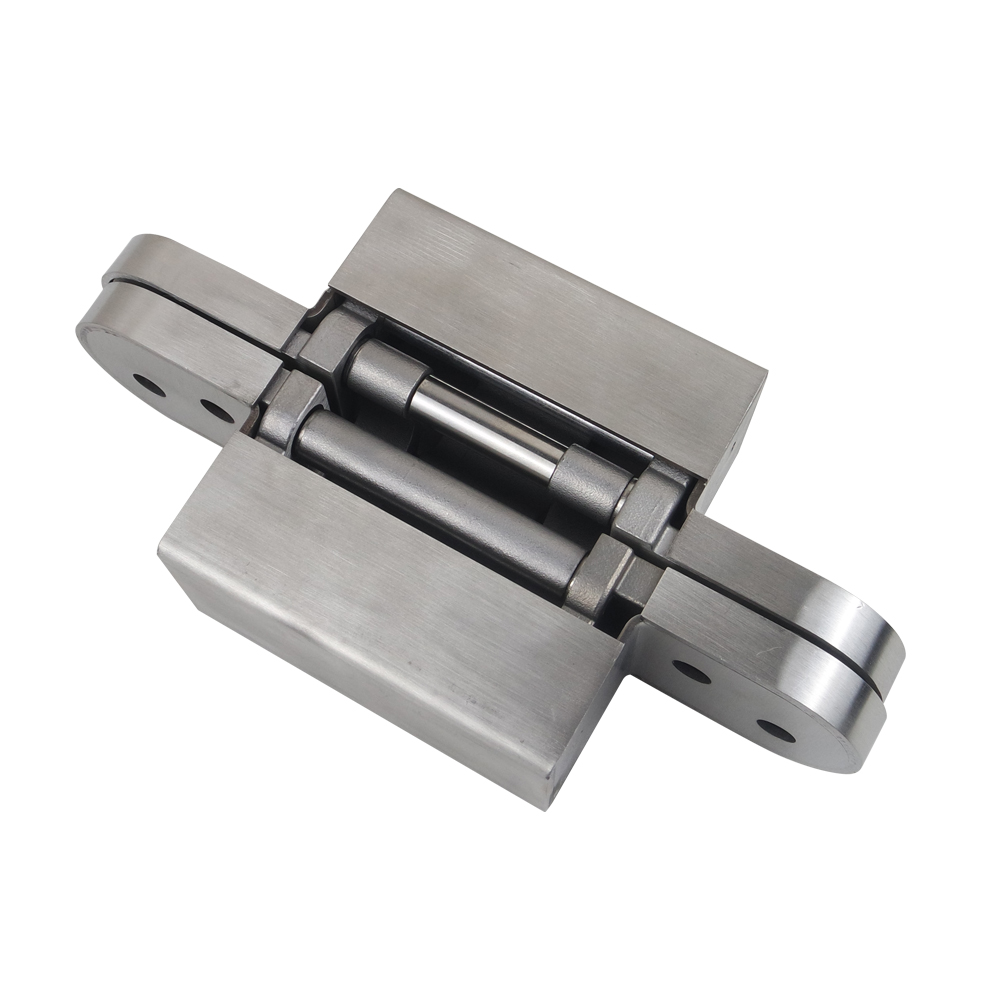

GD200 door hinges for fire doors 200kgs 3D conceal hinges

GD200 door hinges for fire doors 200kgs 3D conceal hinges

· The product is SUS304 material

· Carry the door weighs 200 kg maximum

· The maximum opening angle is 180 °

· The minimum thickness of door leaf is 55 mm

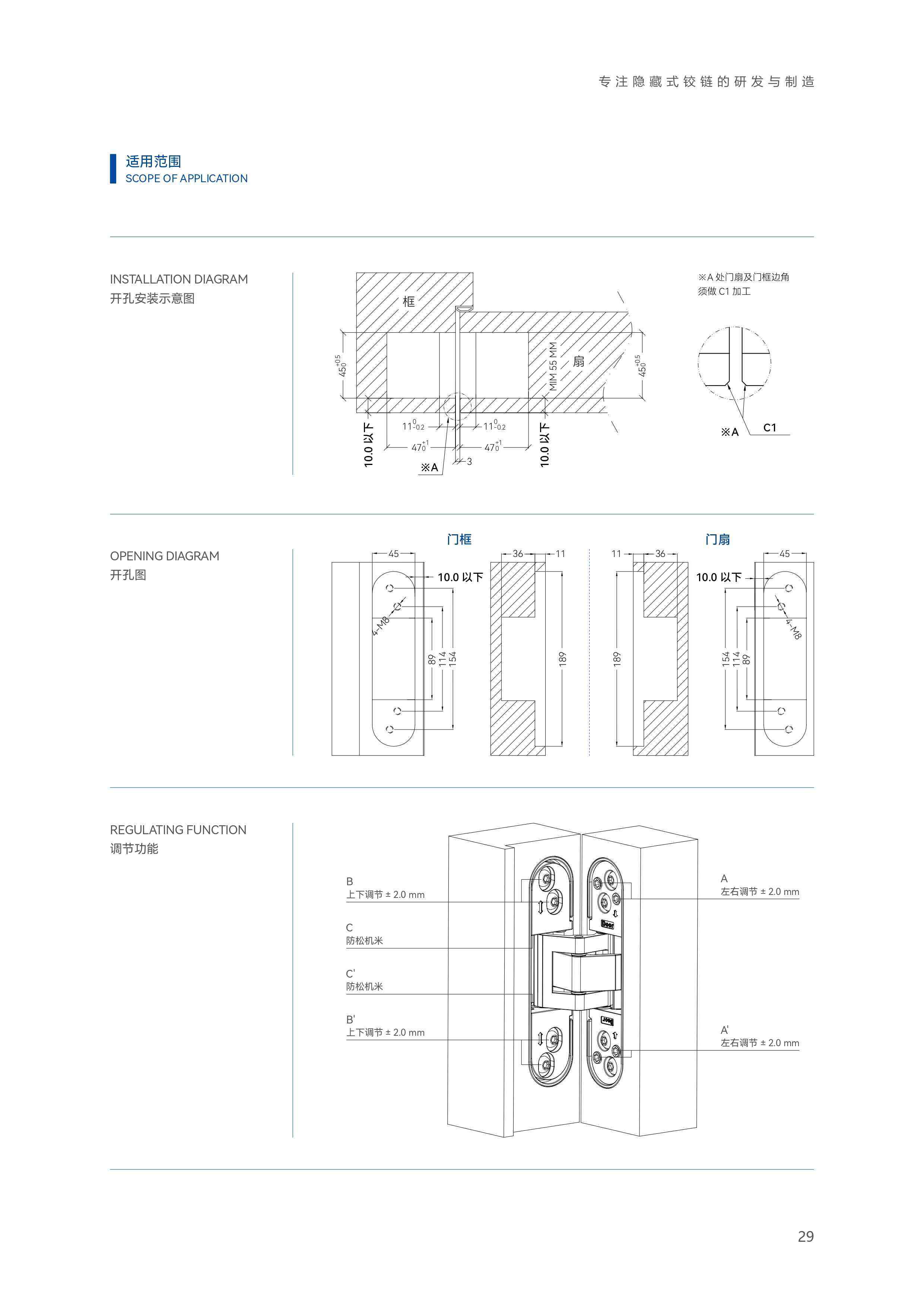

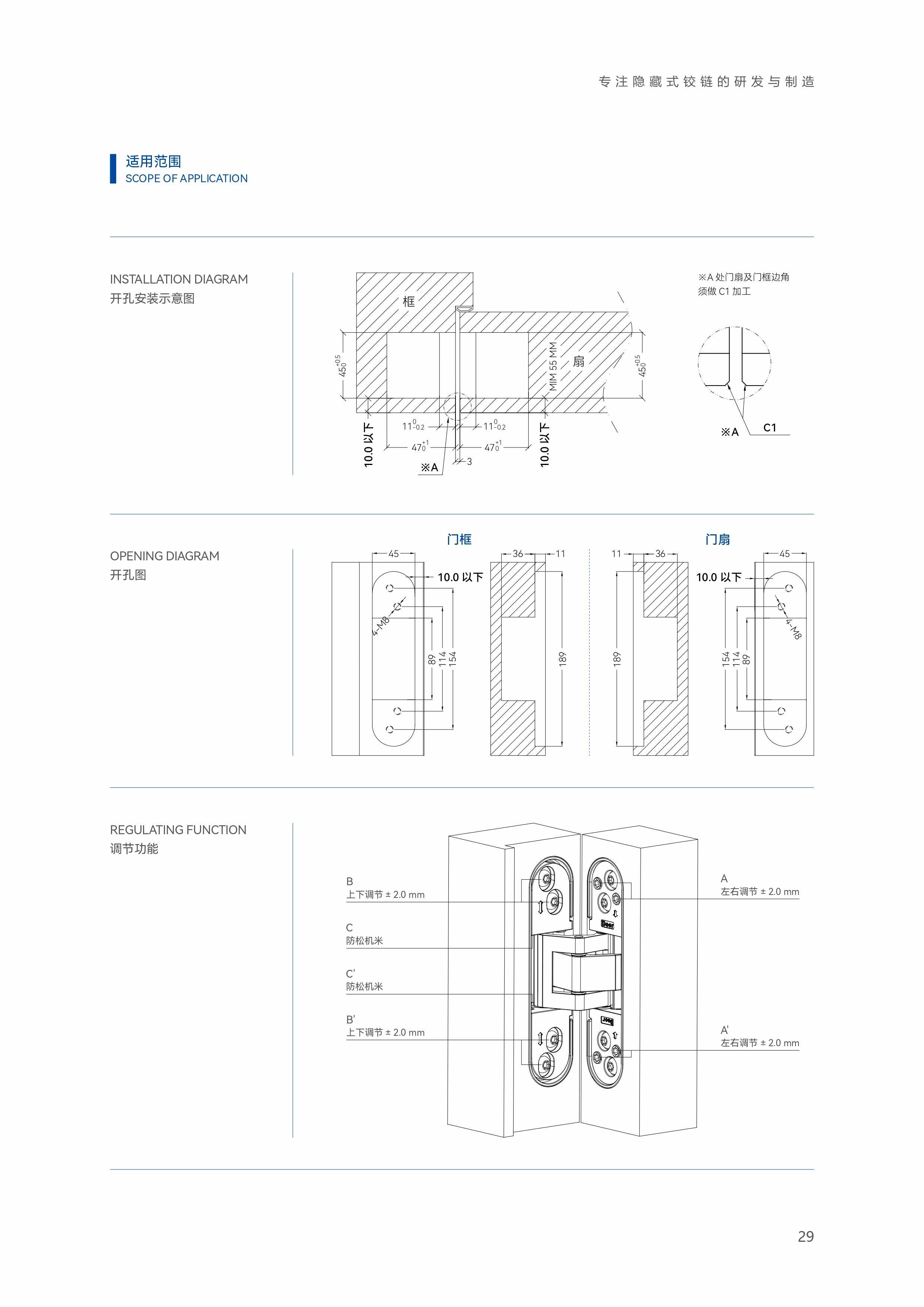

· Can be realized up and down adjustment ± 2.0 mmleft and right the adjustment ± 2.0 mm,easy to install and use

  • Supply from wax lost casting manufacturer directly
  • 10 years warranty

Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products
GD200 door hinges for fire doors 200kgs 3D conceal hinges
GD200 door hinges for fire doors 200kgs 3D conceal hinges
GD200 door hinges for fire doors 200kgs 3D conceal hinges
GD200 door hinges for fire doors 200kgs 3D conceal hinges
GD200 door hinges for fire doors 200kgs 3D conceal hinges
GD200 door hinges for fire doors 200kgs 3D conceal hinges

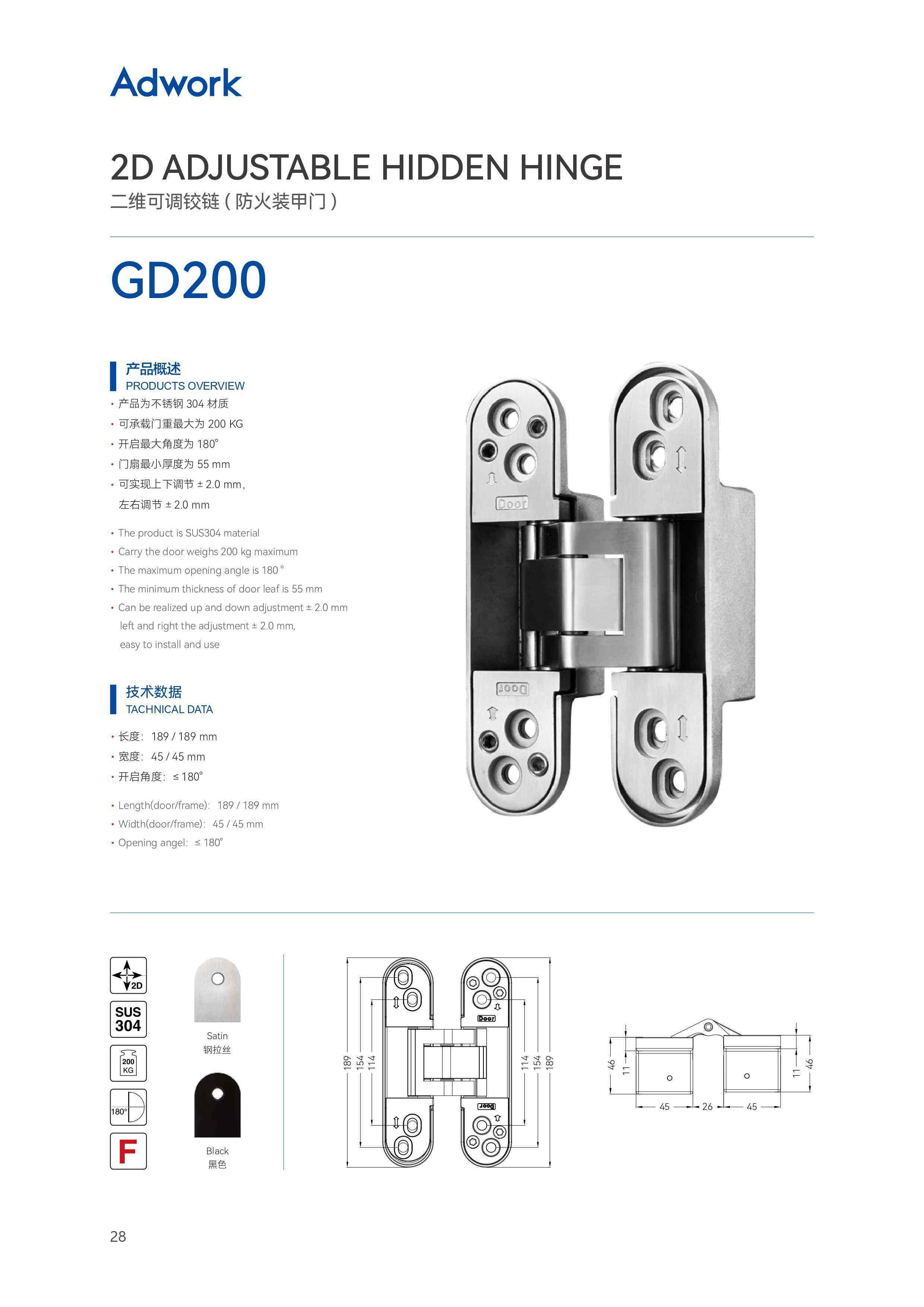

GD200 Fire rated conceal hinges

Stardared color:satin or black

3D adjusted

200kgs loading

Max open angle 180 degree


Length(door/frame)

189 / 189 mm

Width(door/frame)

45 / 45 mm

Opening angel

≤ 180°
