GD100 120KG
GD100 EN1634 Fire rated conceal hinge

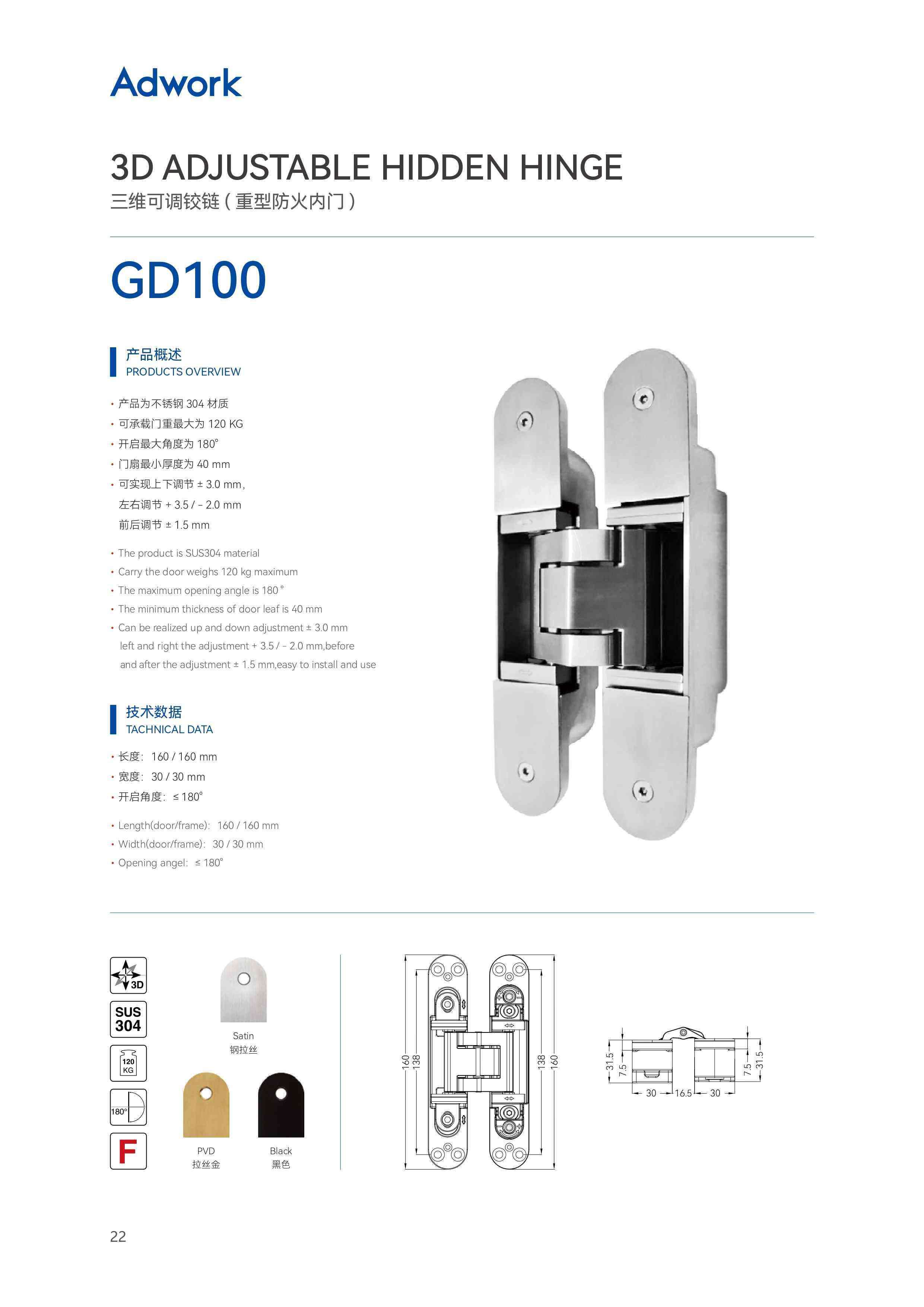

This catalog page features the GD100 3D Adjustable Hidden Hinge by Adwork, designed for heavy-duty fireproof interior doors. Manufactured from SUS304 stainless steel, it supports a maximum door weight of 120 kg and offers a 180° opening angle.

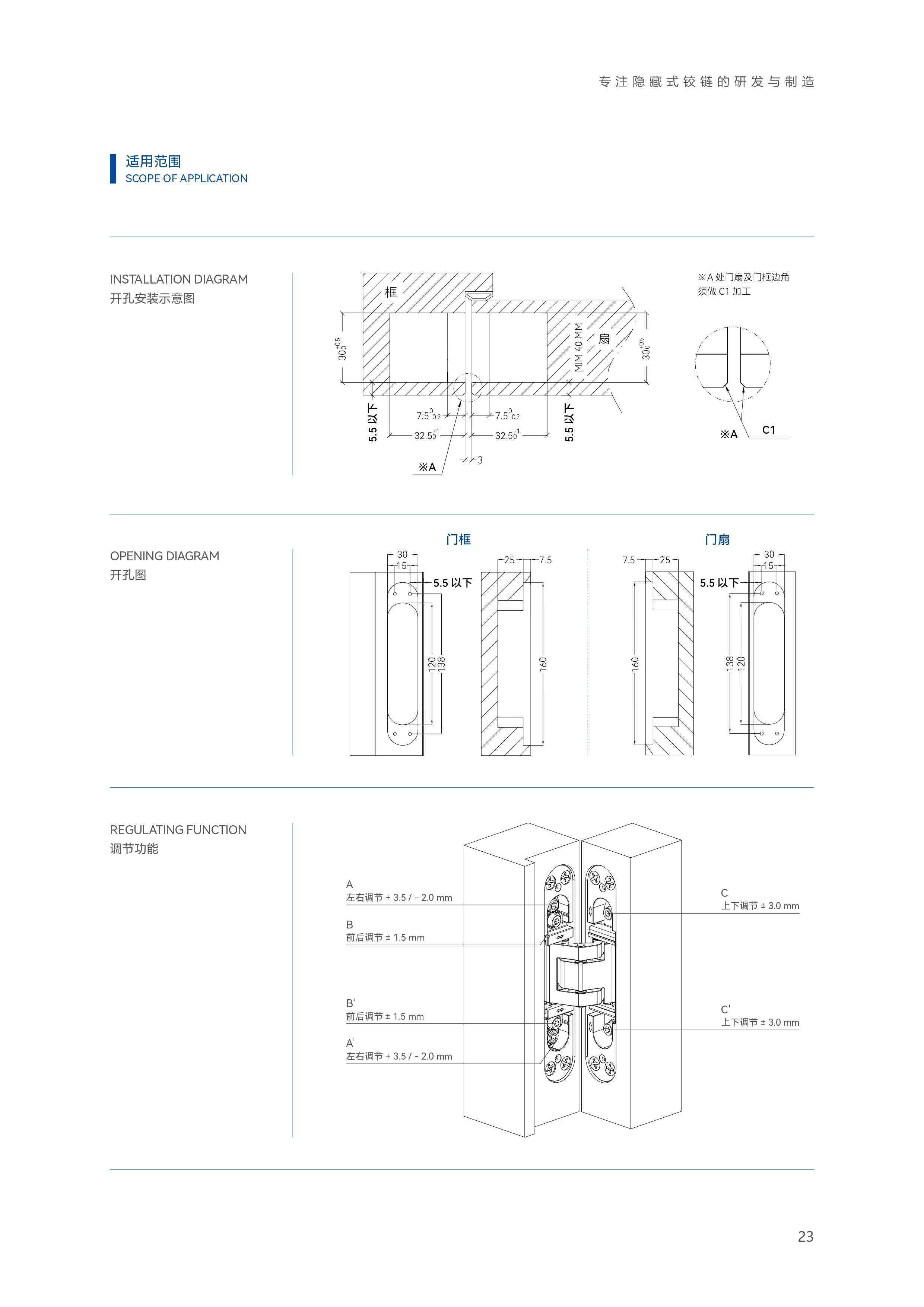

The hinge provides precise 3D calibration:
-
Vertical: $\pm 3.0$ mm
-
Horizontal: $+3.5 / -2.0$ mm
-
Depth: $\pm 1.5$ mm

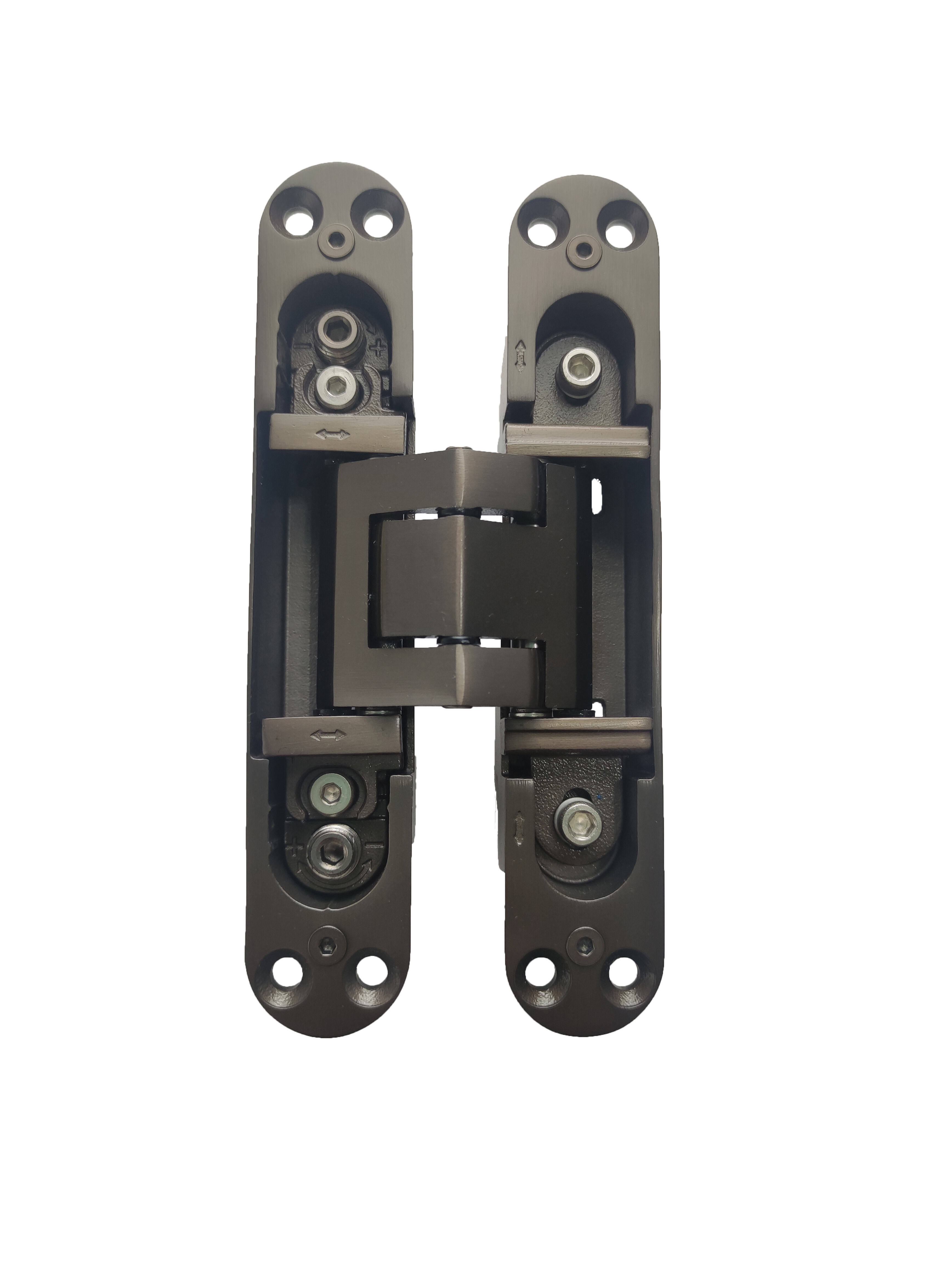

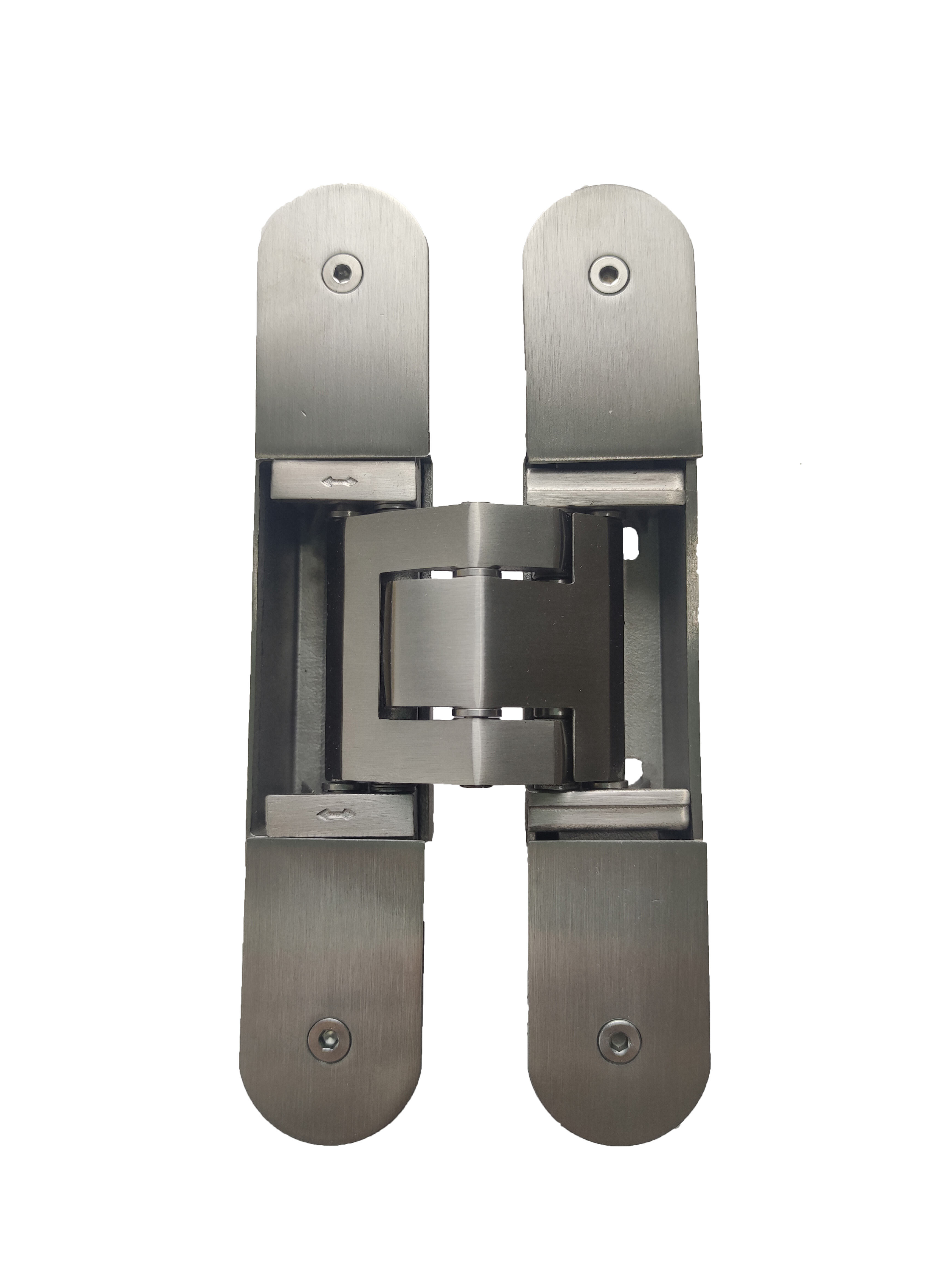

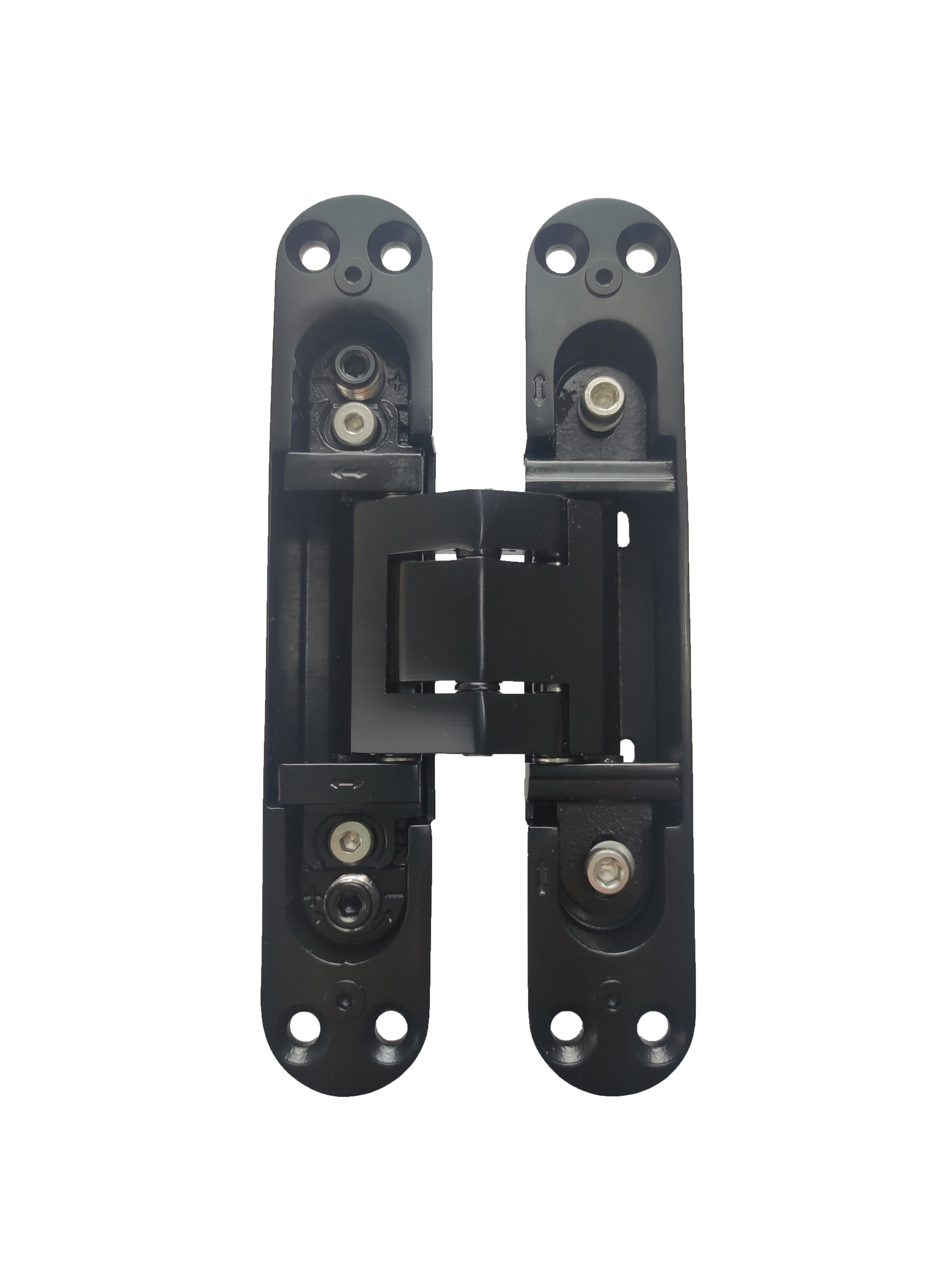

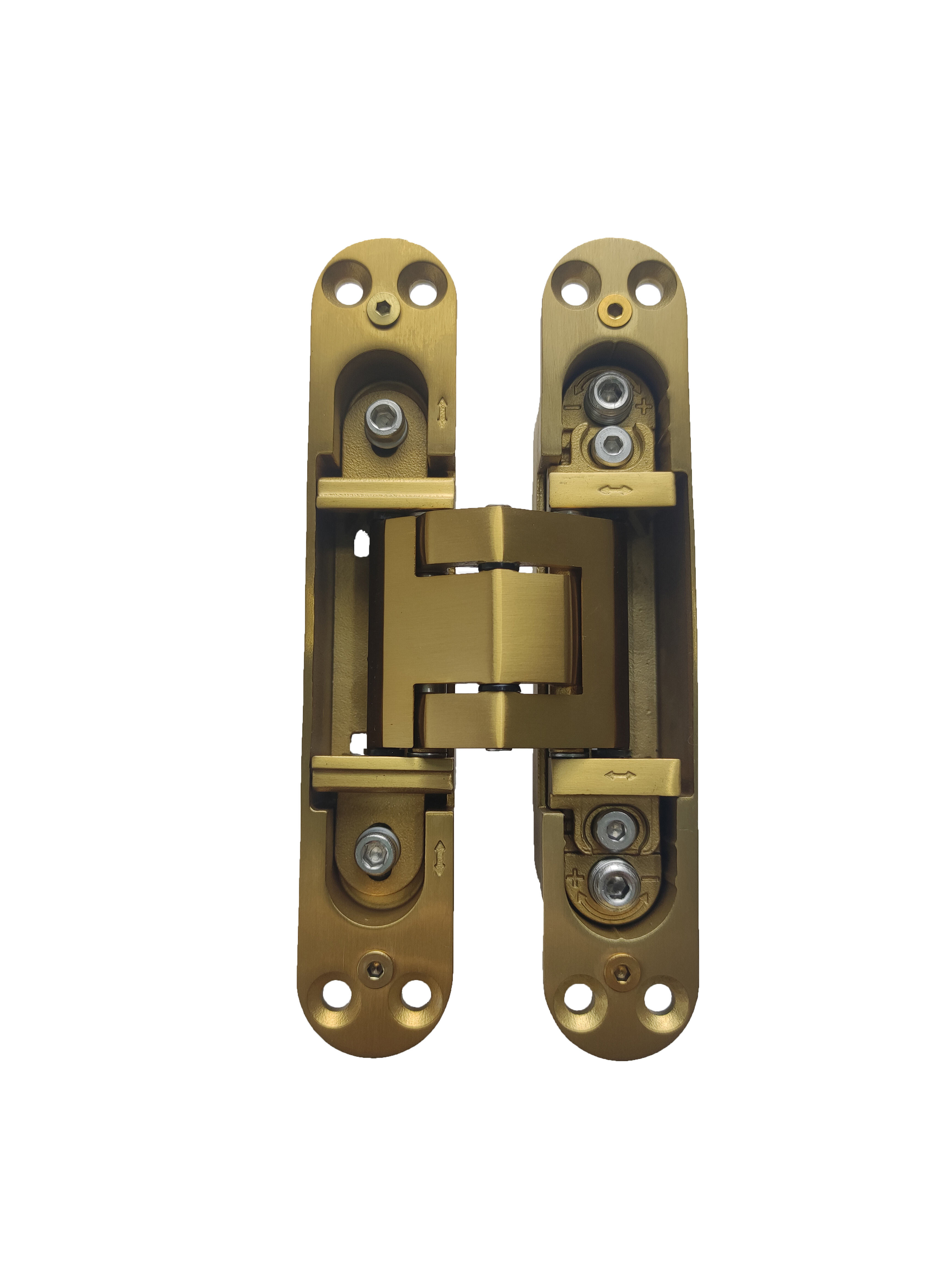

Available in Satin, PVD Gold, and Black finishes, it fits doors with a minimum thickness of 40 mm.
- Overview
- Parameter
- Inquiry
- Related Products
|
Length(door/frame) |
230 / 230 mm |
|
Width(door/frame) |
32 / 32 mm |
|
Material |
SS304 |
|
EN1634 fire rated |
yes |
|
Available color |
satin,black,PVD |
|
Opening angel |
≤ 180° |
