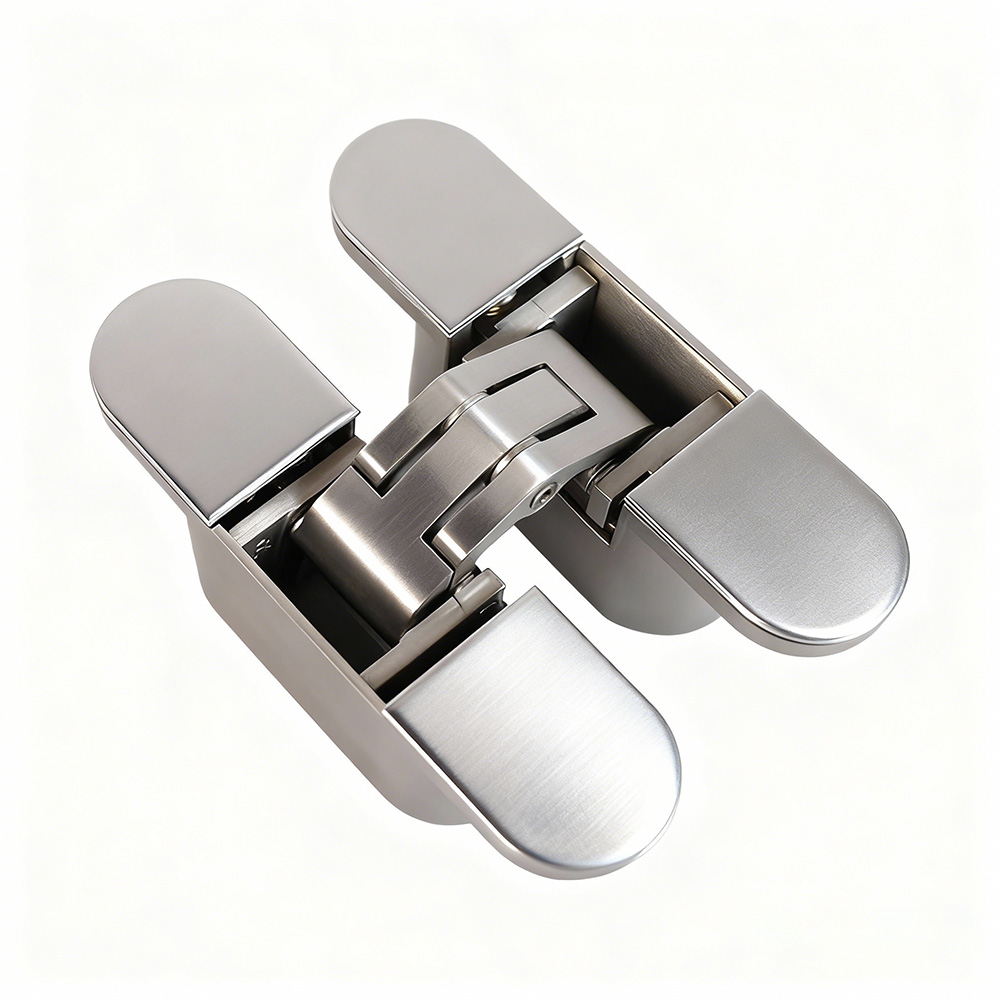

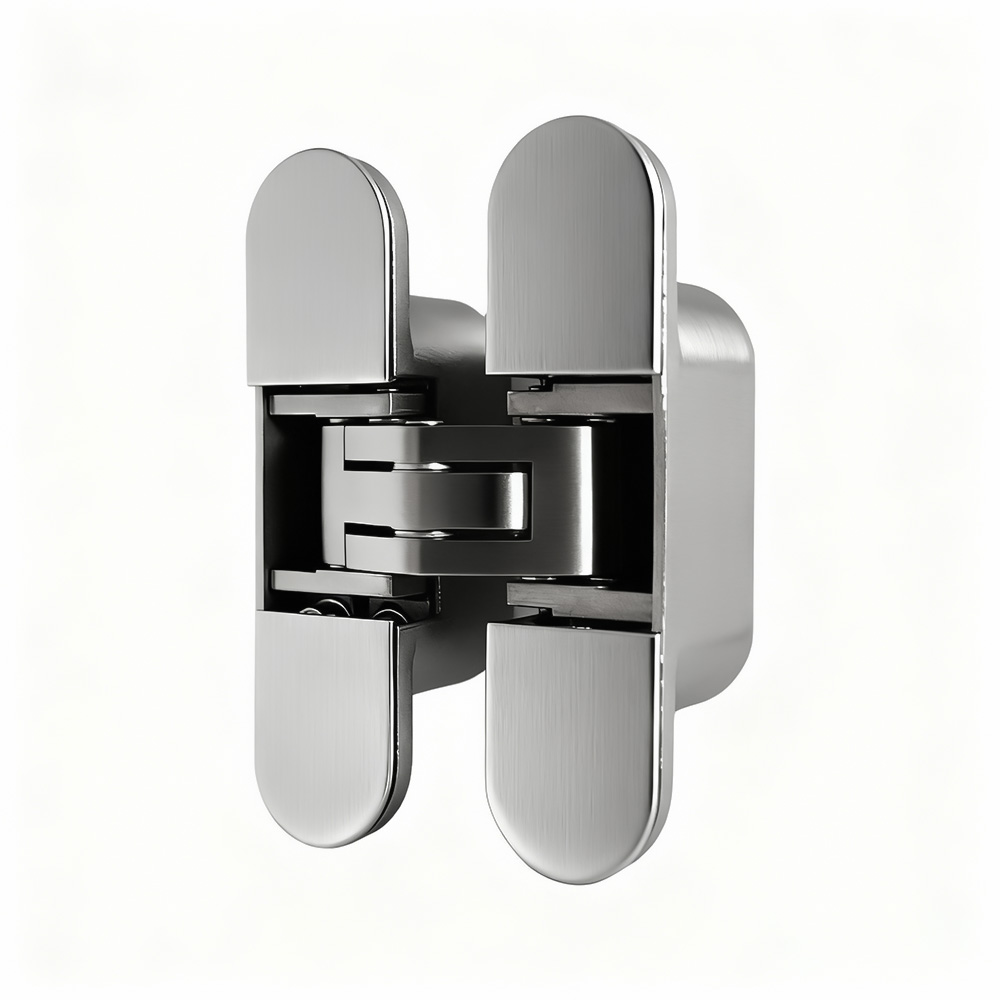

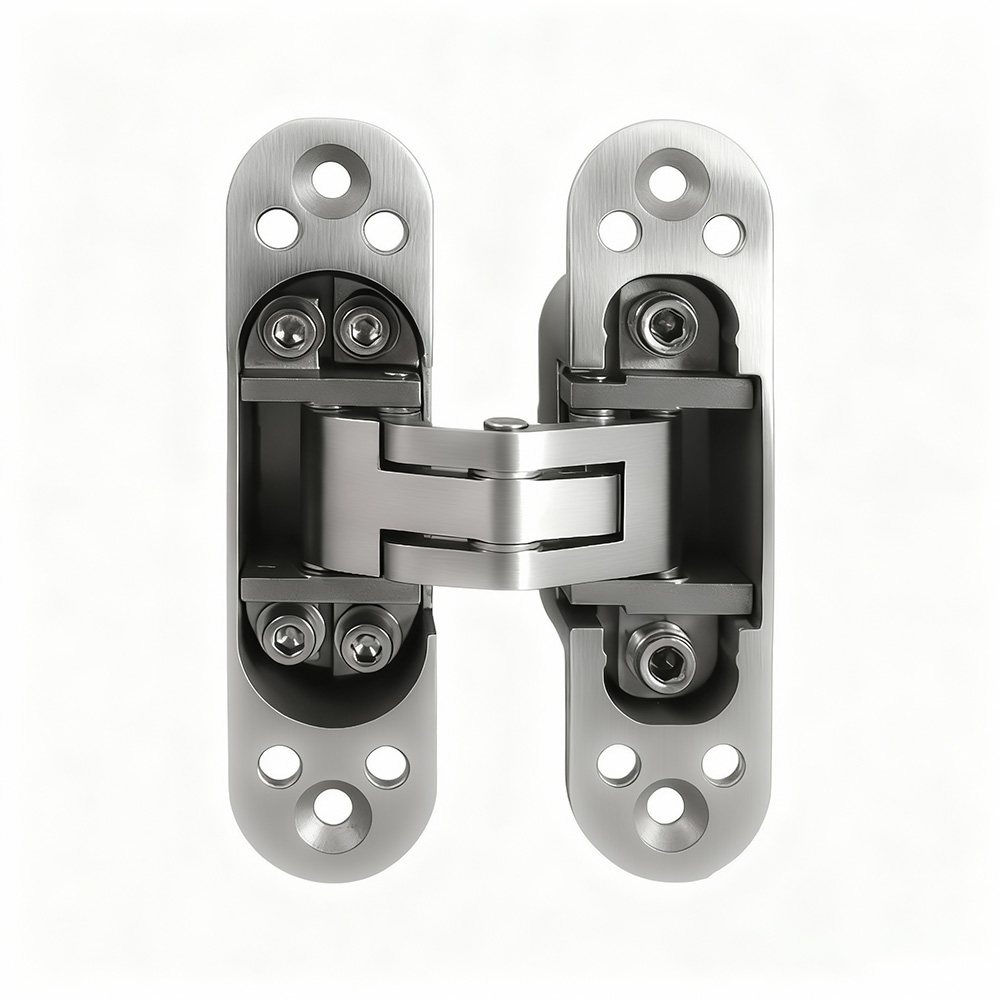

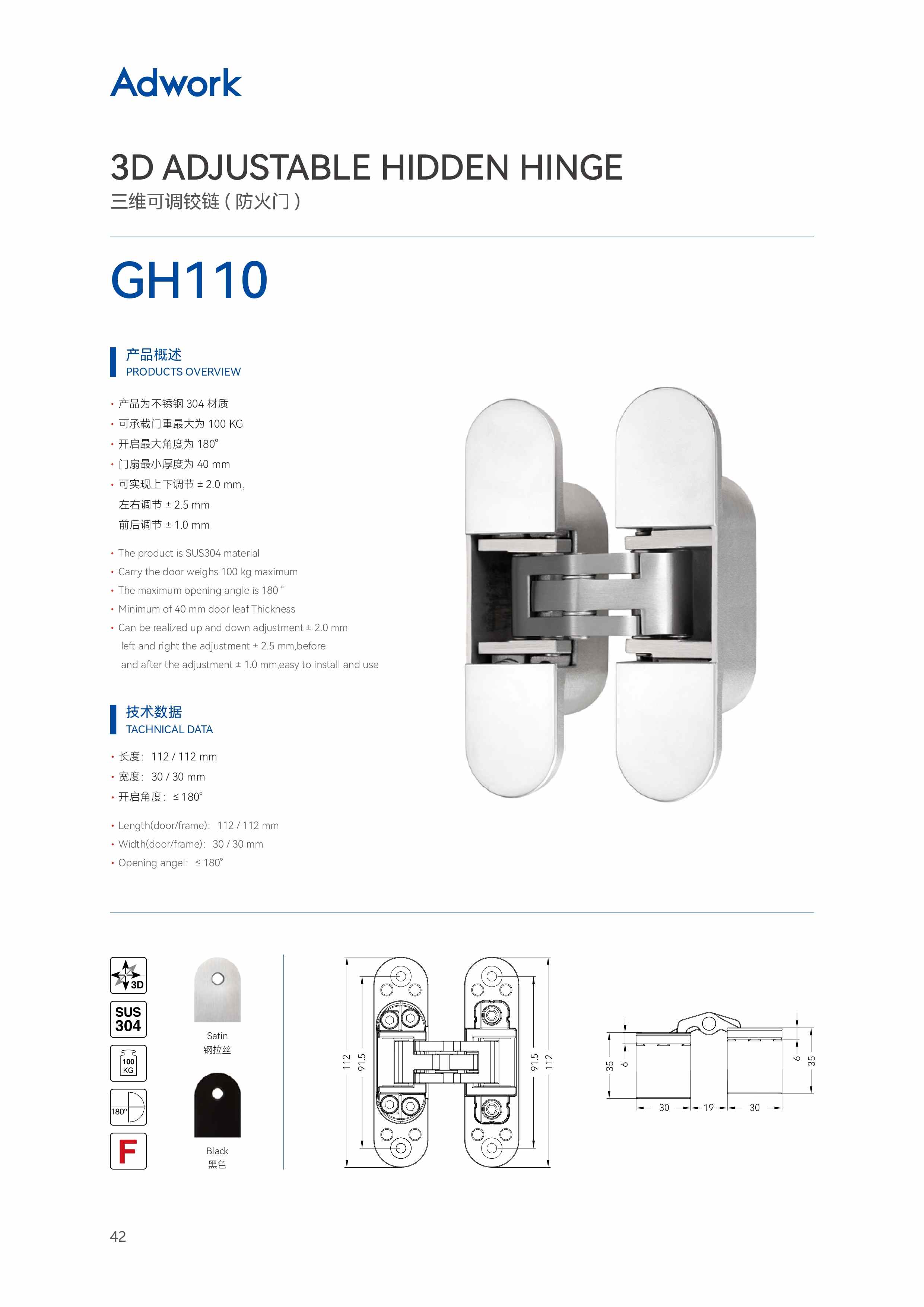

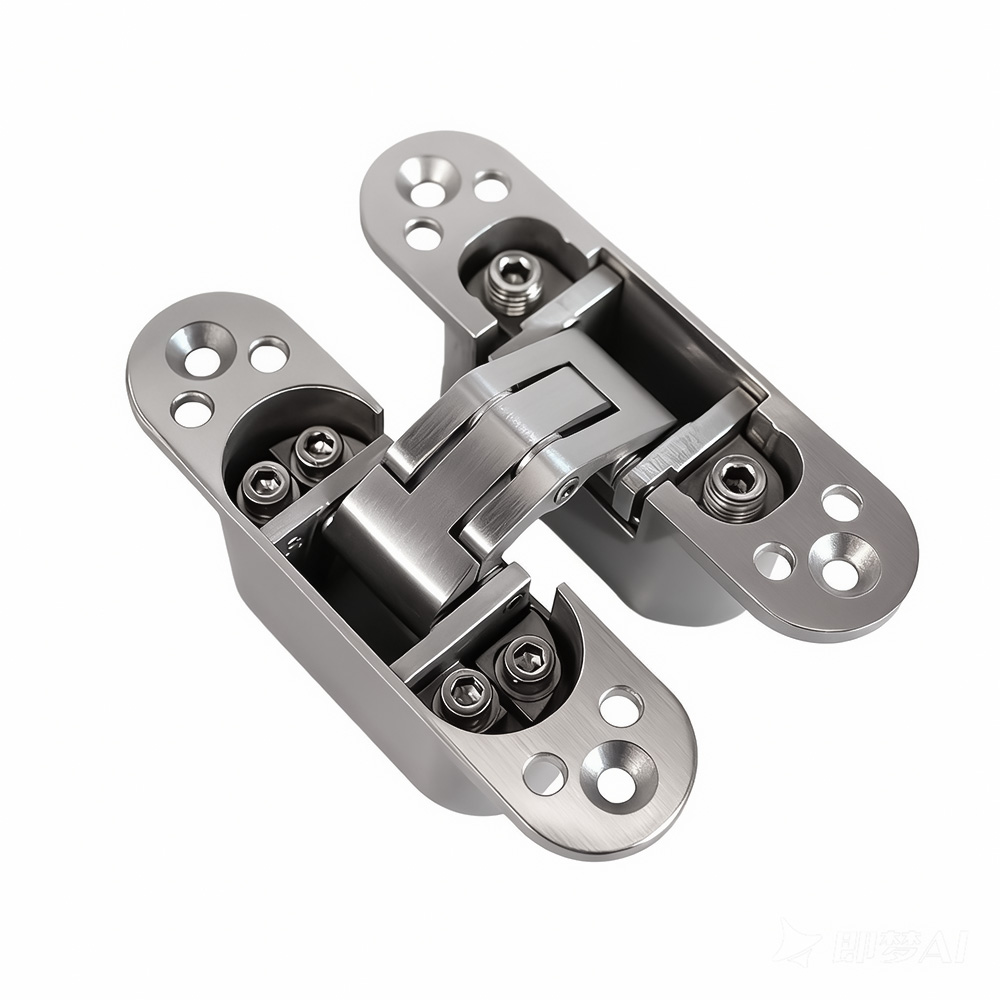

GH110 100KG
- EN1634 FR-132 fire proof conceal hinge
- Stainless Steel material
- Max loading:100kgs for 2 hings
- Minumum door thickness:40mm
- Max open angle:180 degree
- In stock for fast delivery
- Size:L112 W30mm in compact drilling
- OEM based on MOQ:1000 pieces in private label box
- Overview
- Parameter
- Inquiry
- Related Products
|
Length(door/frame) |
112 / 112 mm |
|
Width(door/frame) |
30 / 30 mm |
|
Available color |
Satin or Black |
|
3D adjusted |
Yes |
|
Drilling deepth |
35mm |
|
Opening angel |
≤ 180° |
