GE60 60KGS cerniere a scomparsa per porte interne

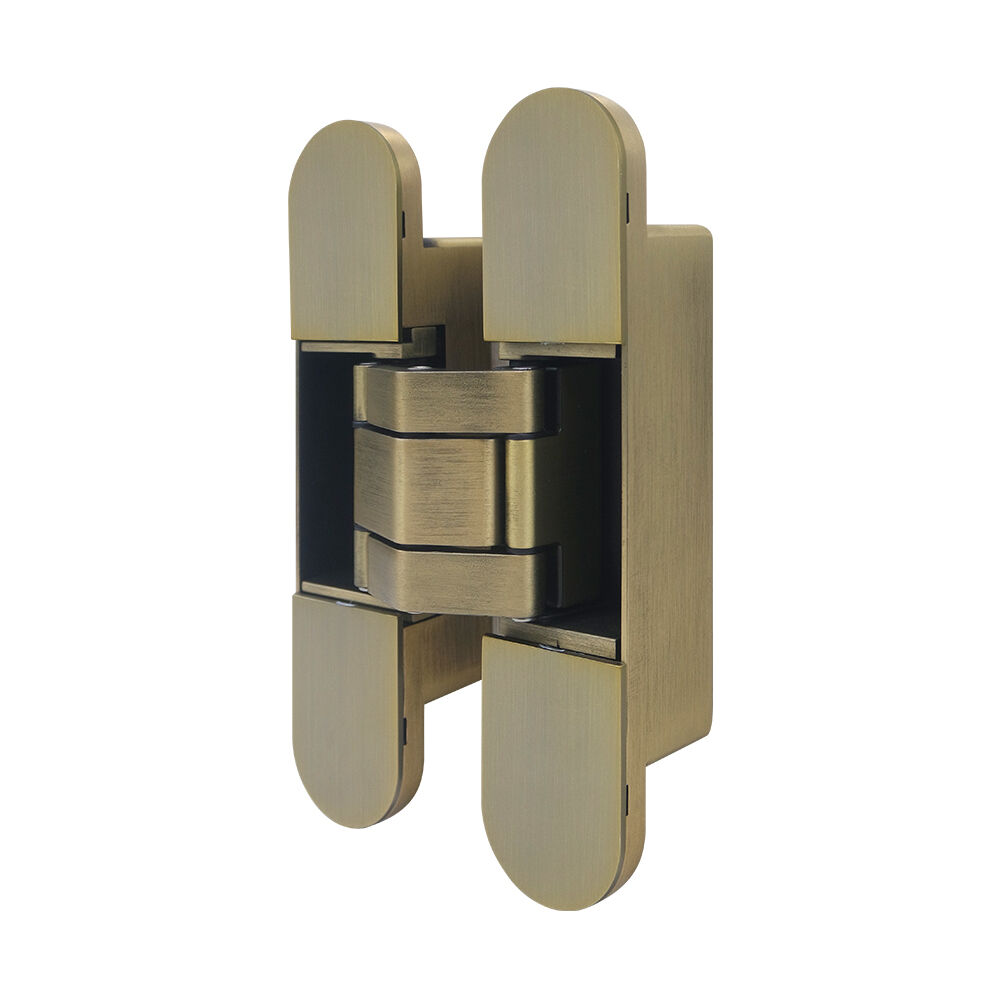

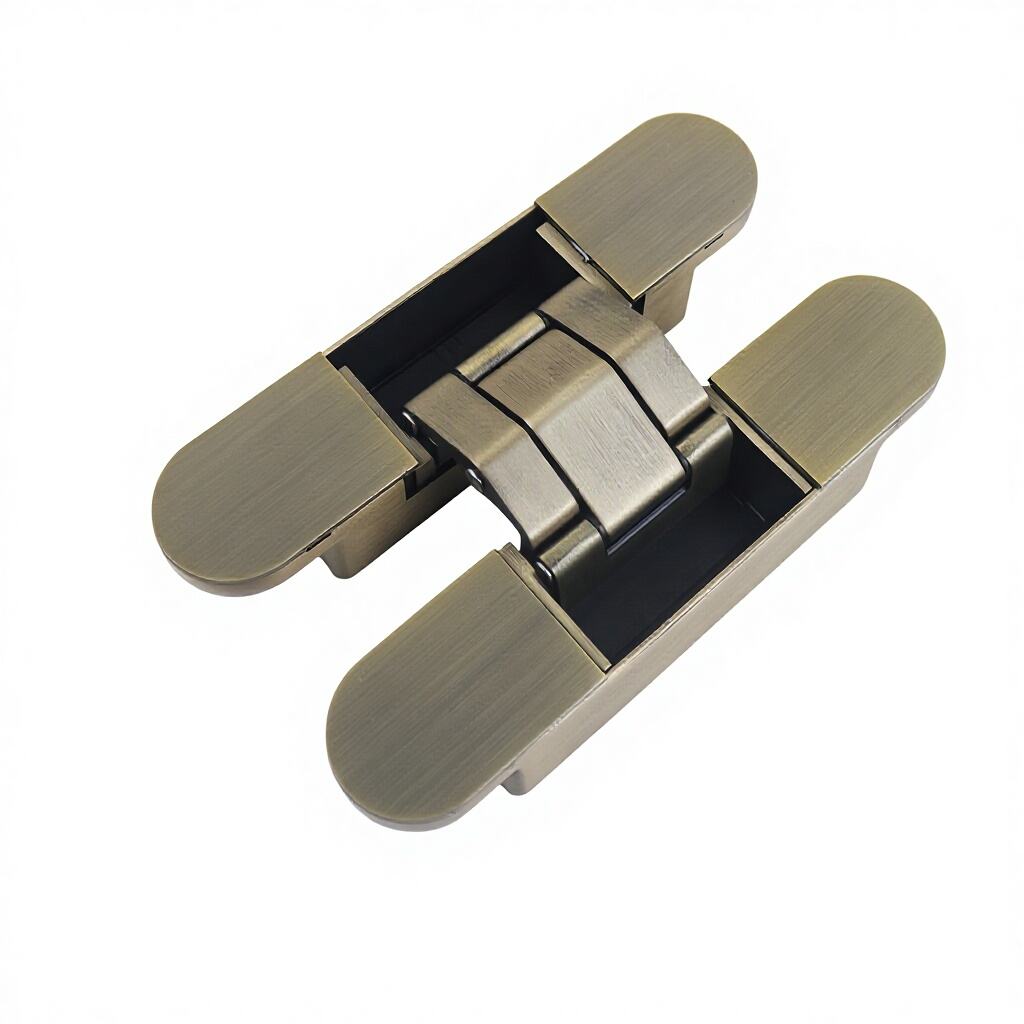

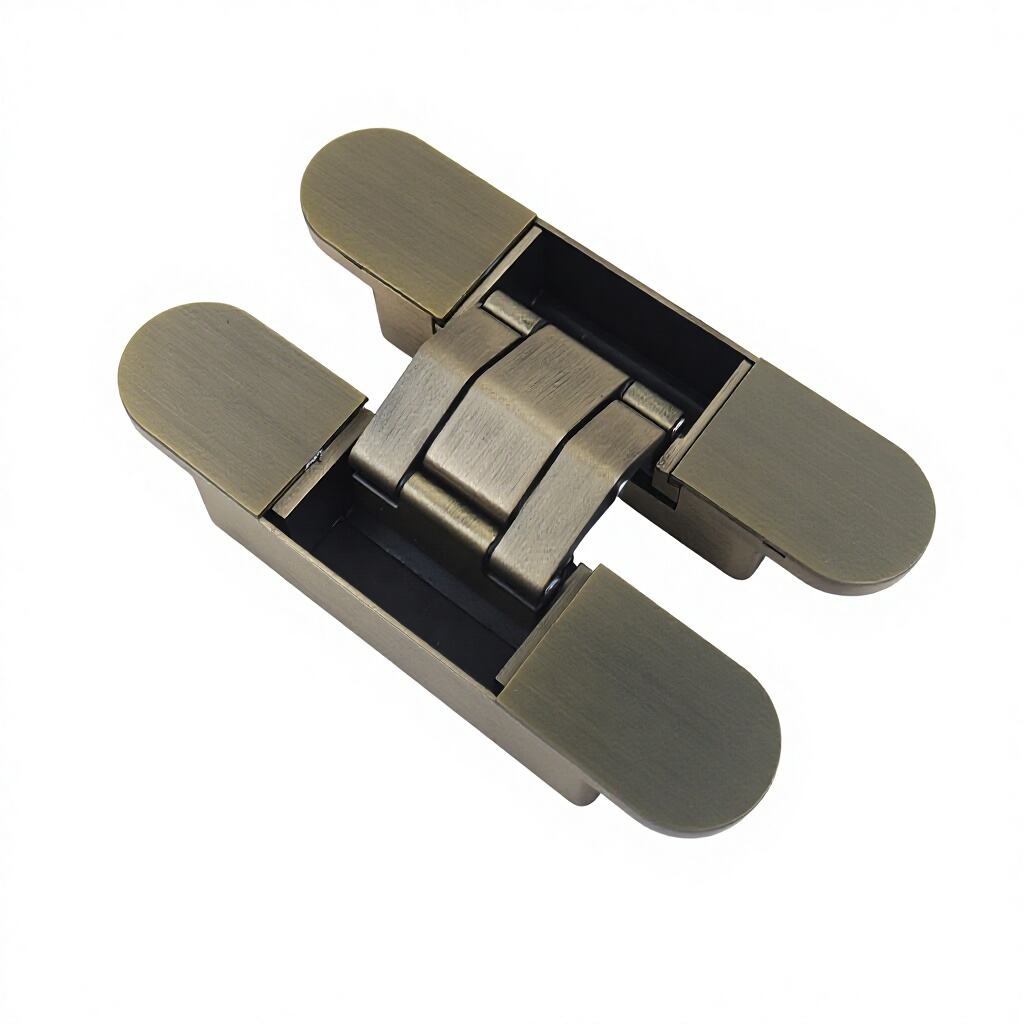

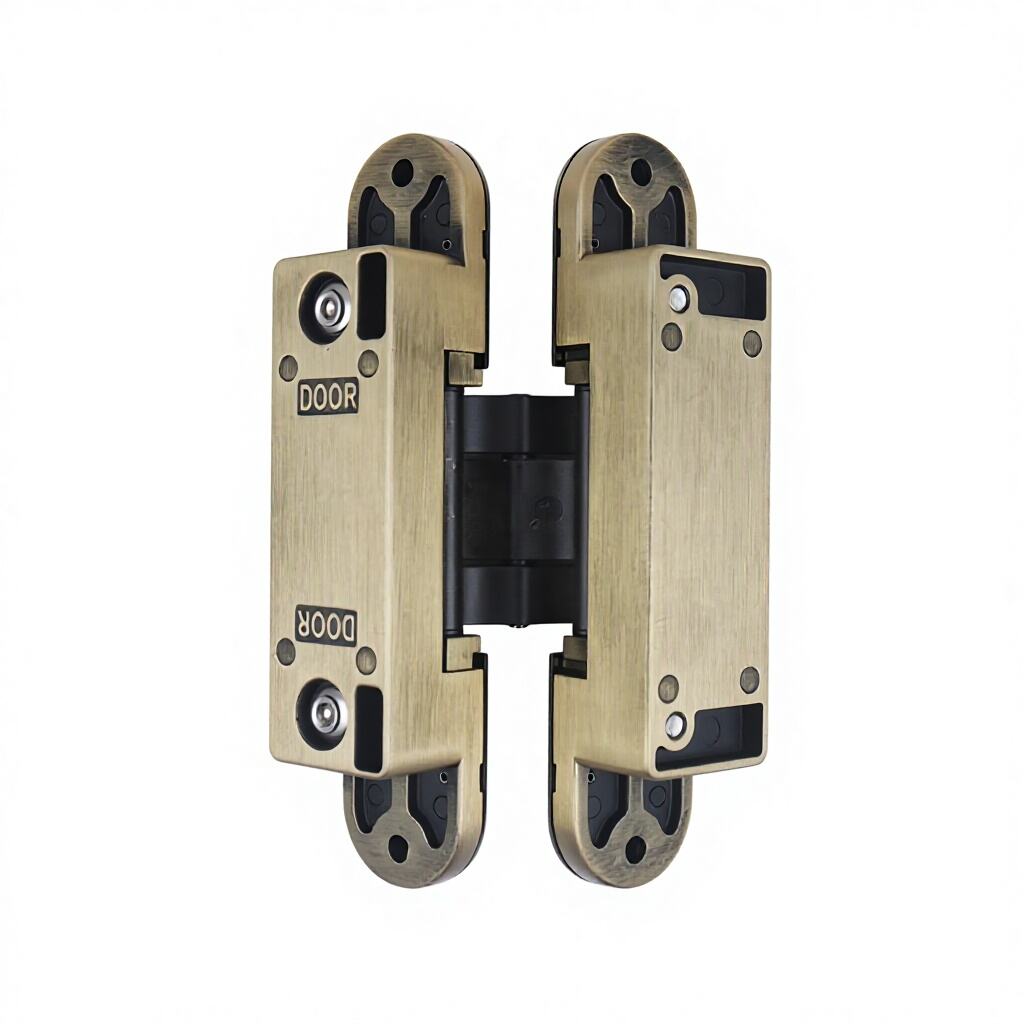

This document specifies the Adwork GE60, a 3D Adjustable Hidden Hinge designed for interior doors. Constructed from durable zinc alloy, it supports a maximum door weight of 60 kg and offers a full 180° opening angle.

Key technical features include:

• 3D Adjustability: Vertical ($\pm 2.5\text{ mm}$), horizontal ($\pm 1.5\text{ mm}$), and depth ($\pm 1.0\text{ mm}$) for precise alignment.

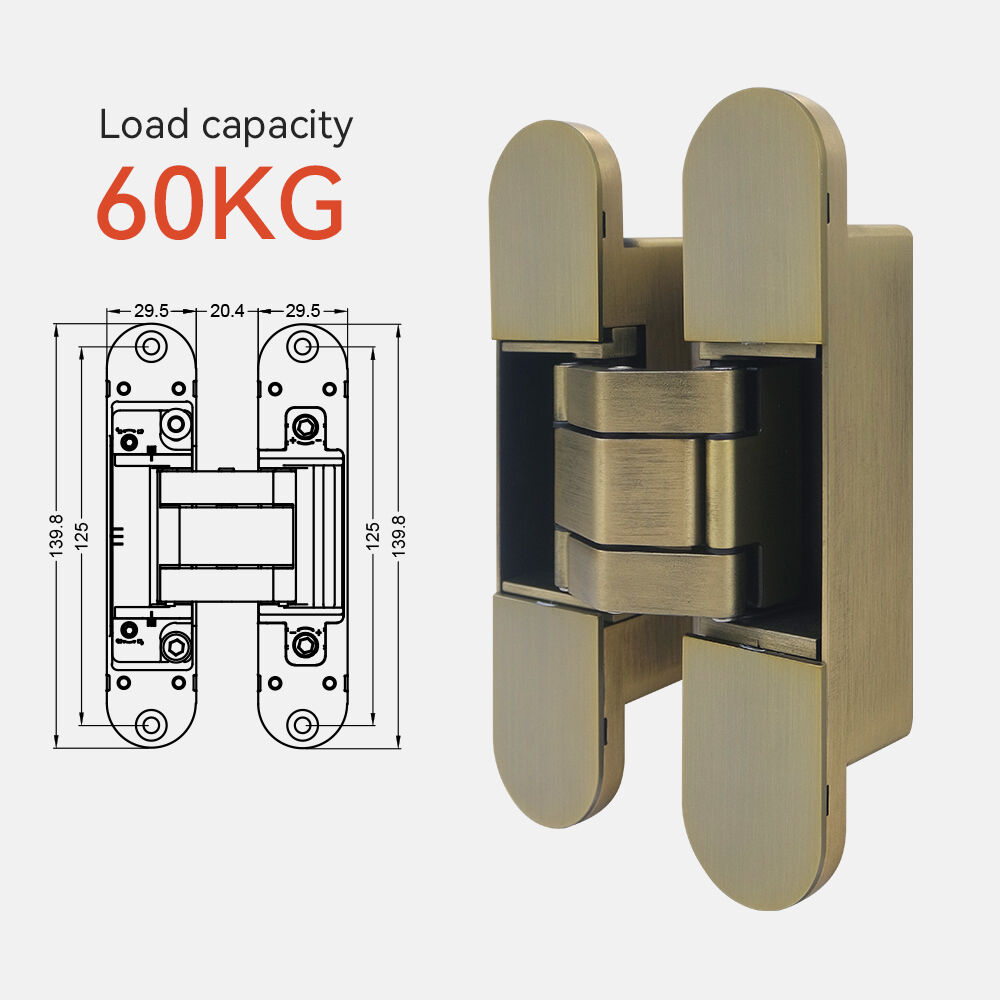

• Dimensions: A length of 140 mm and a width of 30 mm.

• Requirements: Suitable for door leaves with a minimum thickness of 40 mm.

The hinge is available in multiple finishes, including Chromium Plating, White, Pearl Gun, and Electrophoresis Black.
