GE60 60KG

Key words:3D ajusted door hinge,

This document specifies the Adwork GE60, a 3D Adjustable Hidden Hinge designed for interior doors. Constructed from durable zinc alloy, it supports a maximum door weight of 60 kg and offers a full 180° opening angle.
Key technical features include:
3D Adjustability: Vertical (±2.5 mm), horizontal (±1.5 mm), and depth (±1.0 mm) for precise alignment.

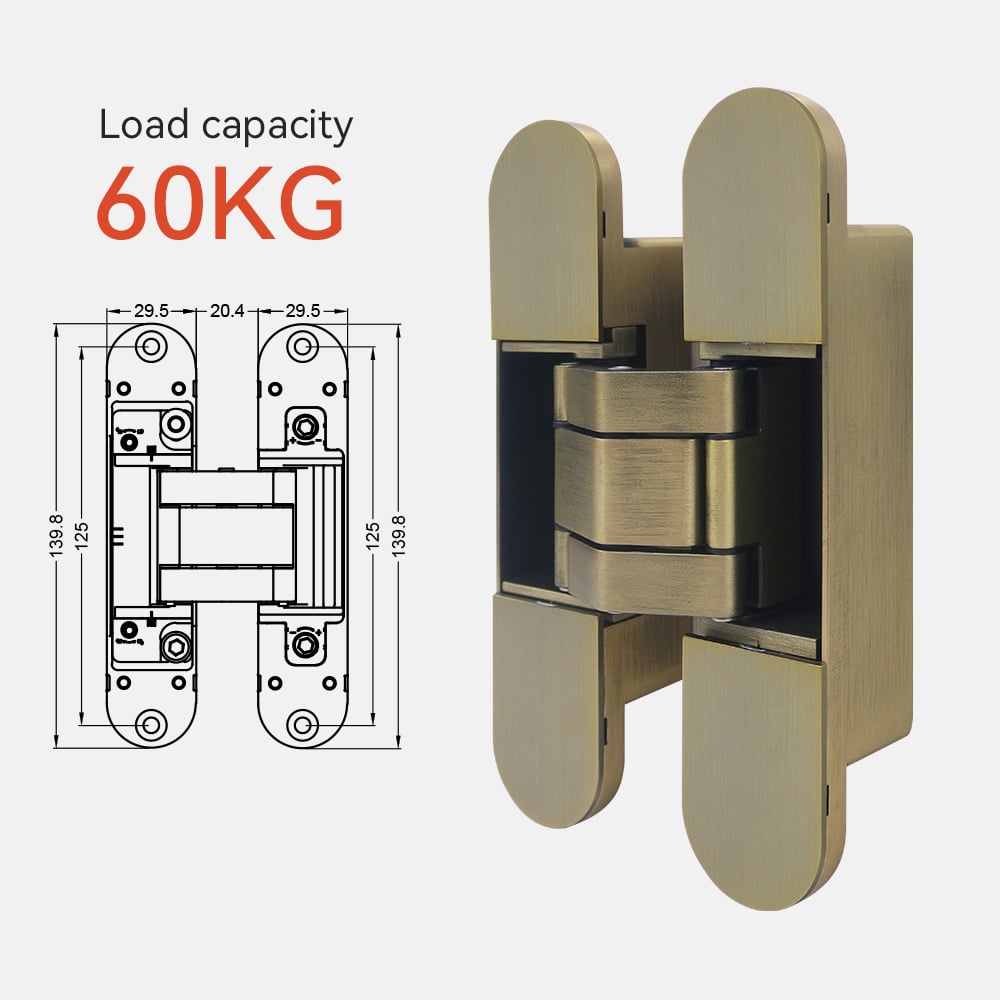

Dimensions: A length of 140 mm and a width of 30 mm.
Requirements: Suitable for door leaves with a minimum thickness of 40 mm.
The hinge is available in multiple finishes, including Chromium Plating, White, Pearl Gun, and Electrophoresis Black.

Inquiry

Overview
Parameter
Inquiry
Related Products

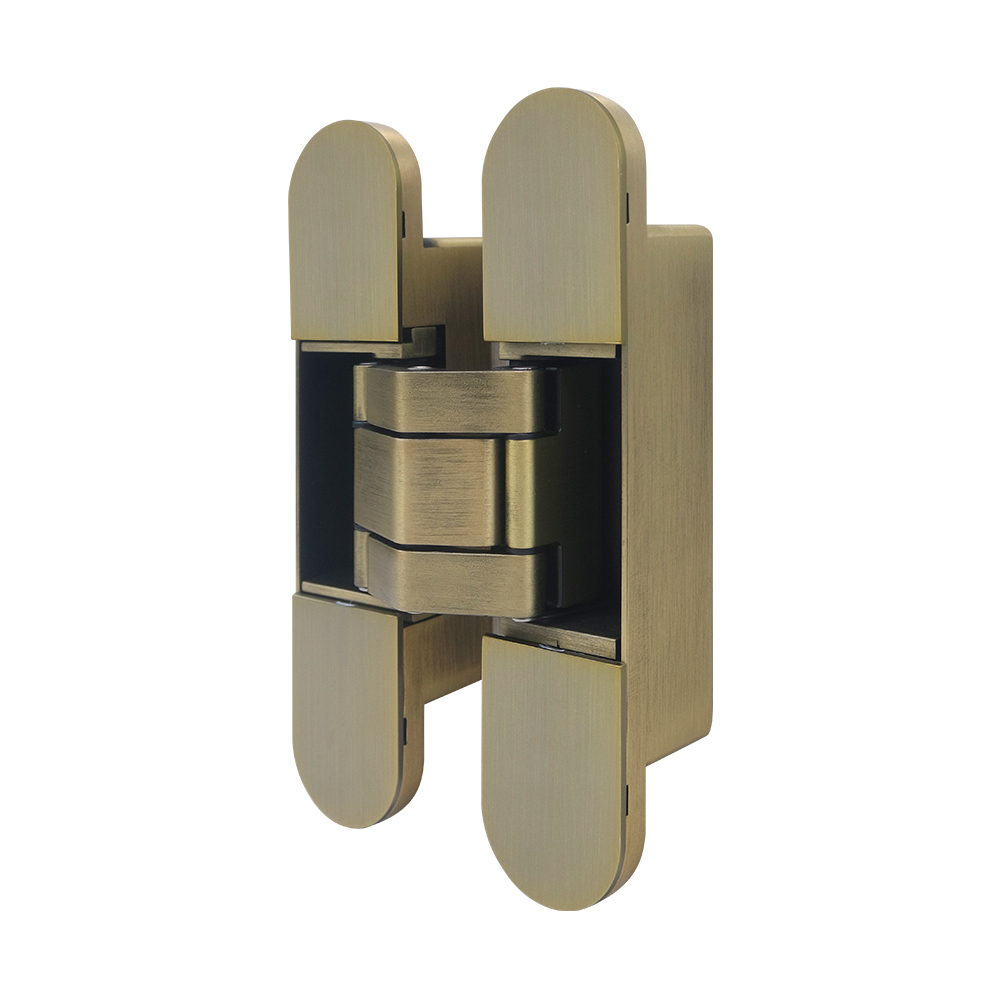

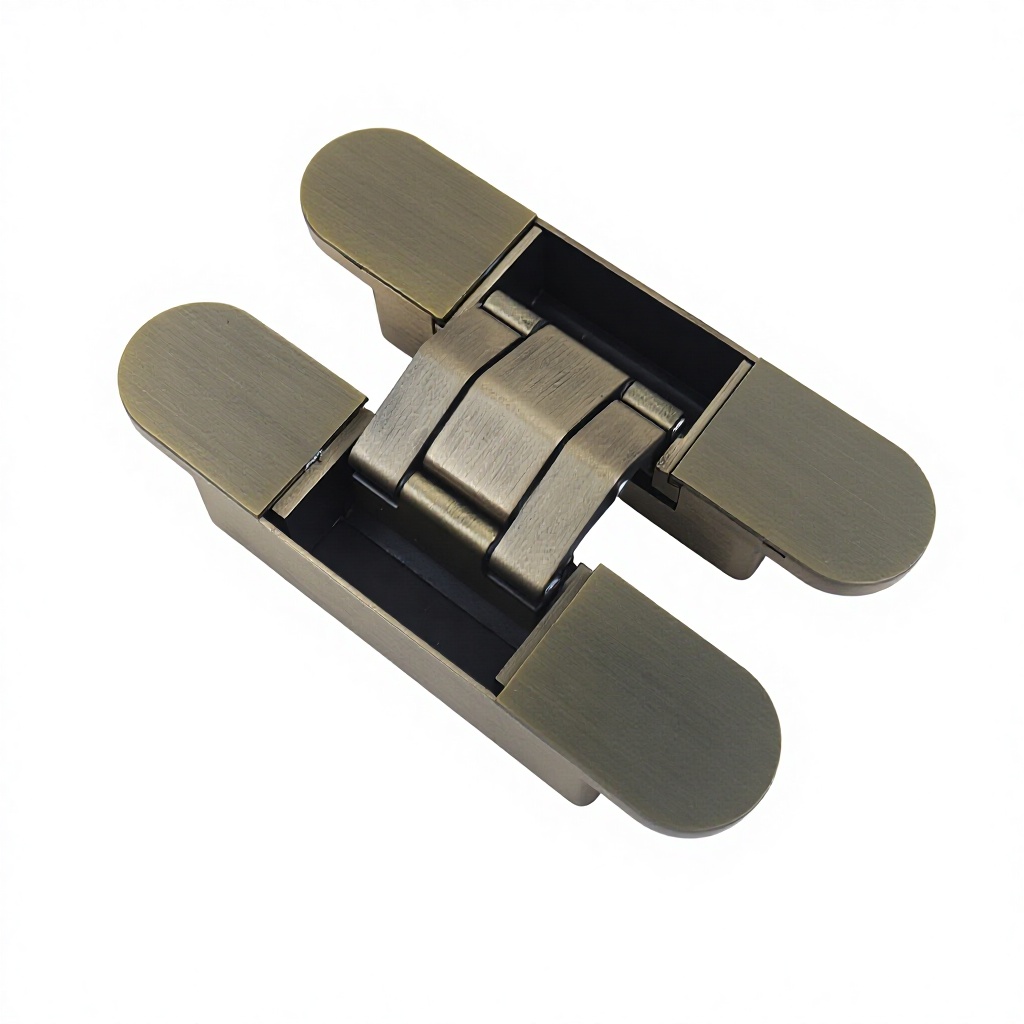

Antique bronze 3D adjusted door hidden hinge GE60 60KGS cerniere a scomparsa per porte interne

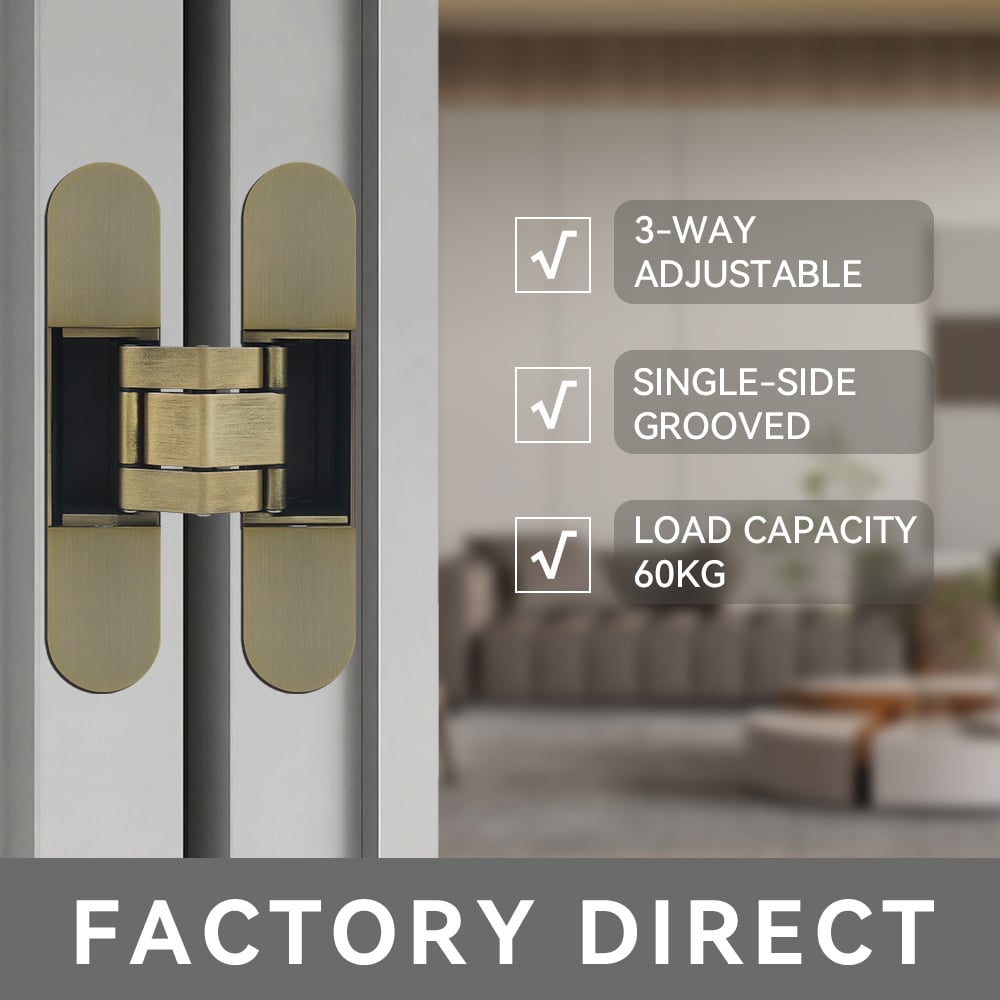

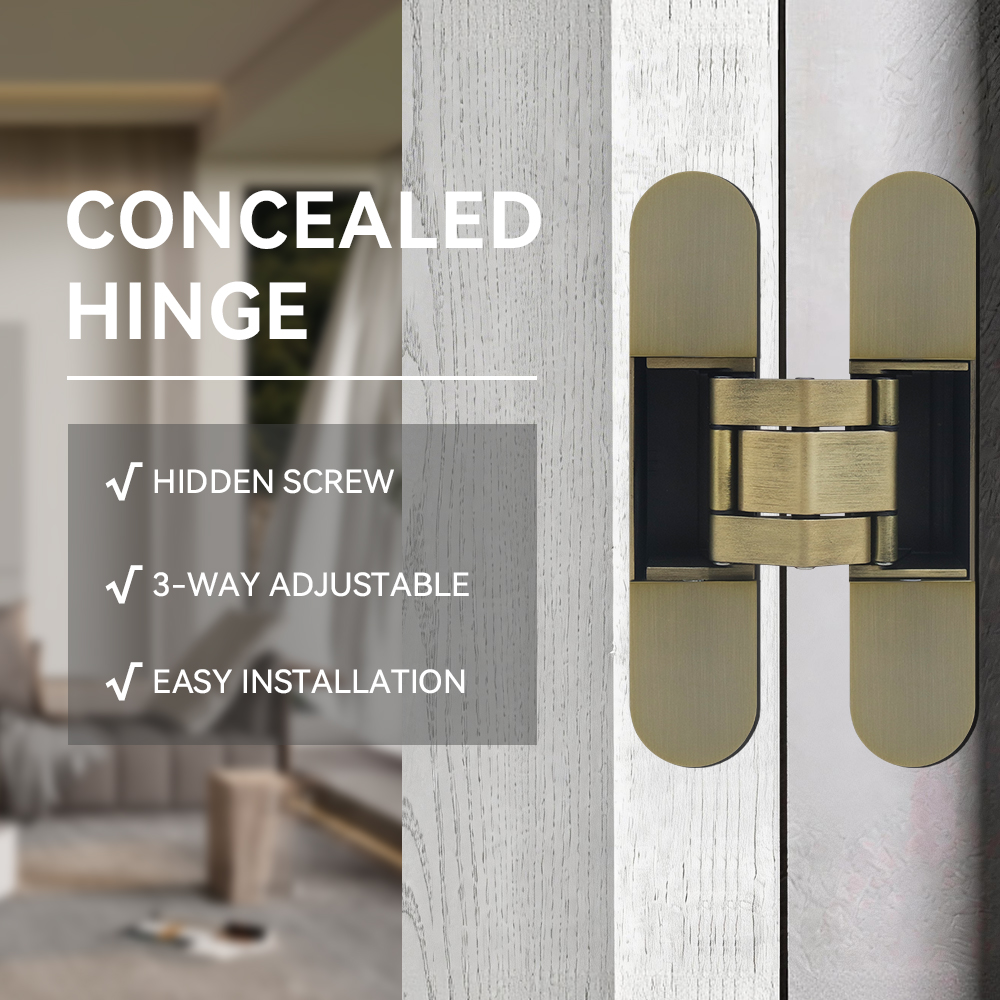

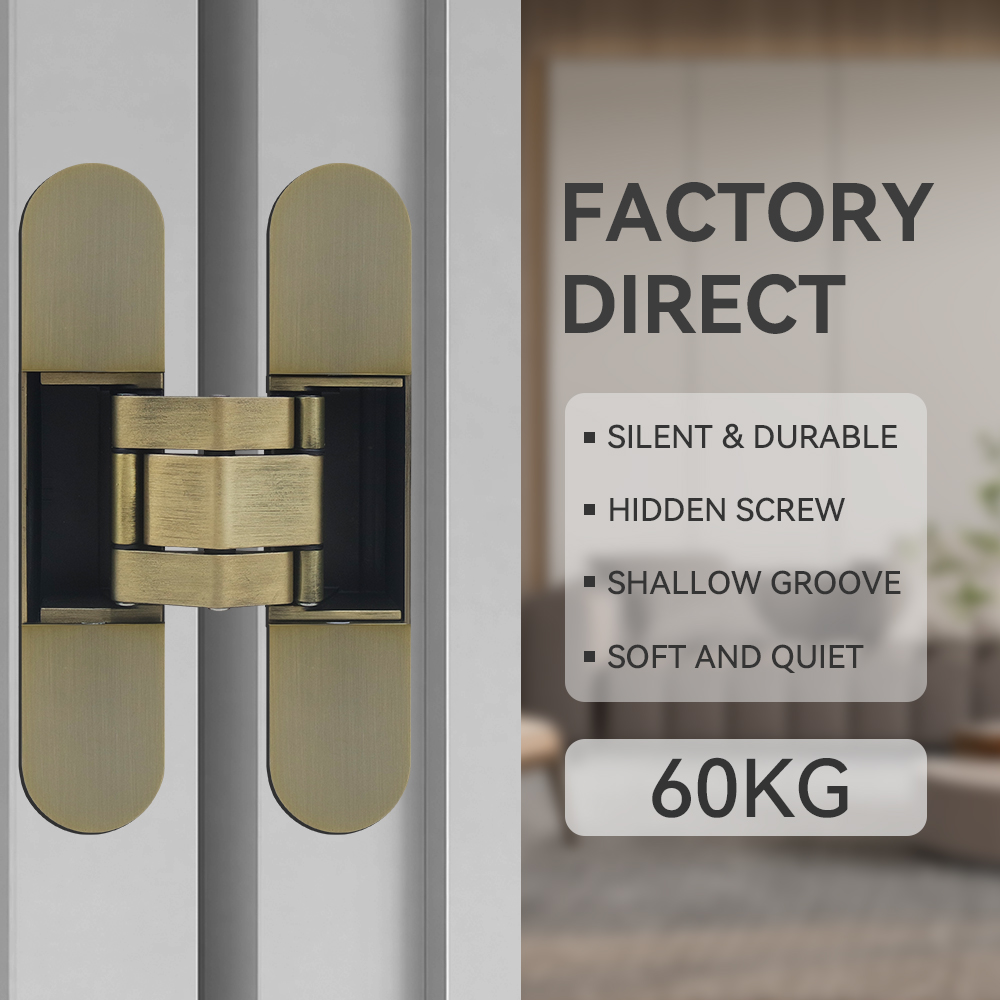

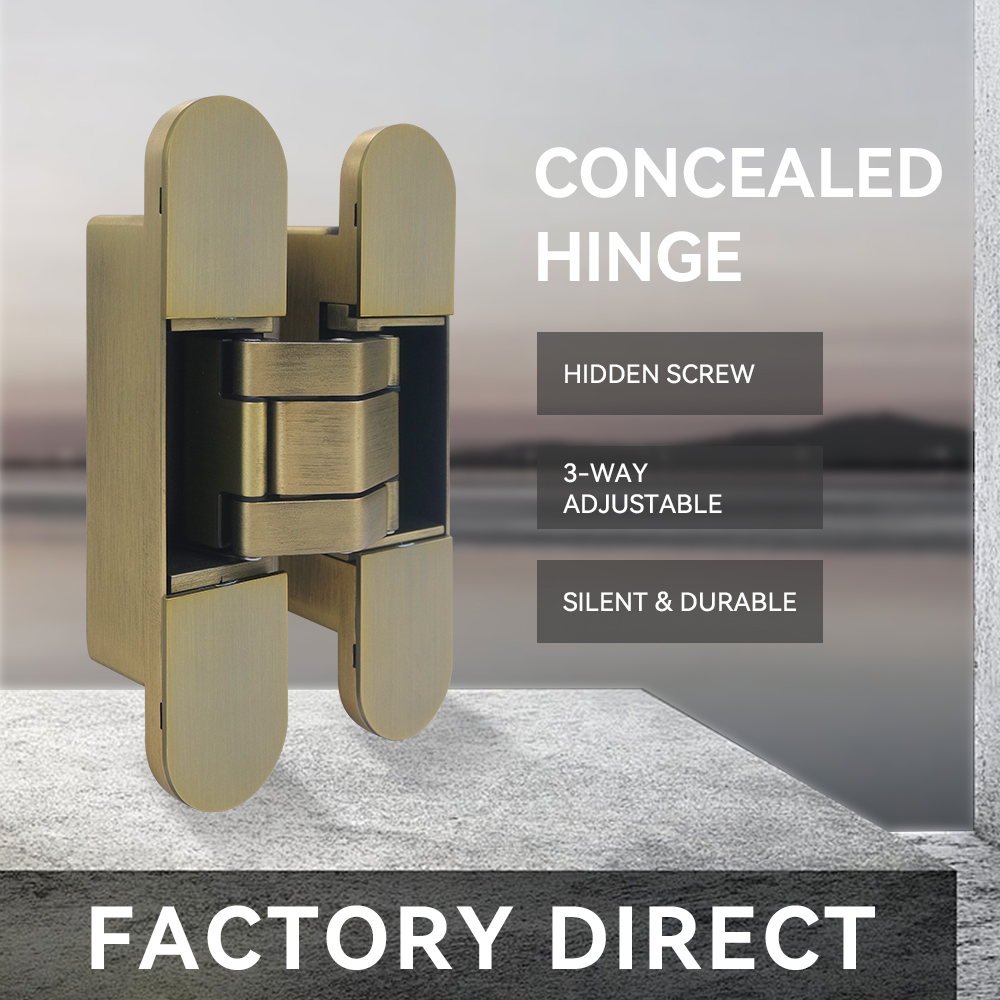

GE60青铜-1.jpg GE60青铜-2.jpg GE60青铜色.jpg GE60青铜色-3.jpg GE60青铜色主图1.jpg

Item	Door hidden hinge
Material	zinca alloy 5#
loading	2 hinges for 60kgs
open angle	180 degree
door thickness	40mm
up down adjusted	2.5mm
left right adjust	1.5mm
front and back adjust	1mm
available color	Silver,white,peal gun,black
Origin	Made in China
