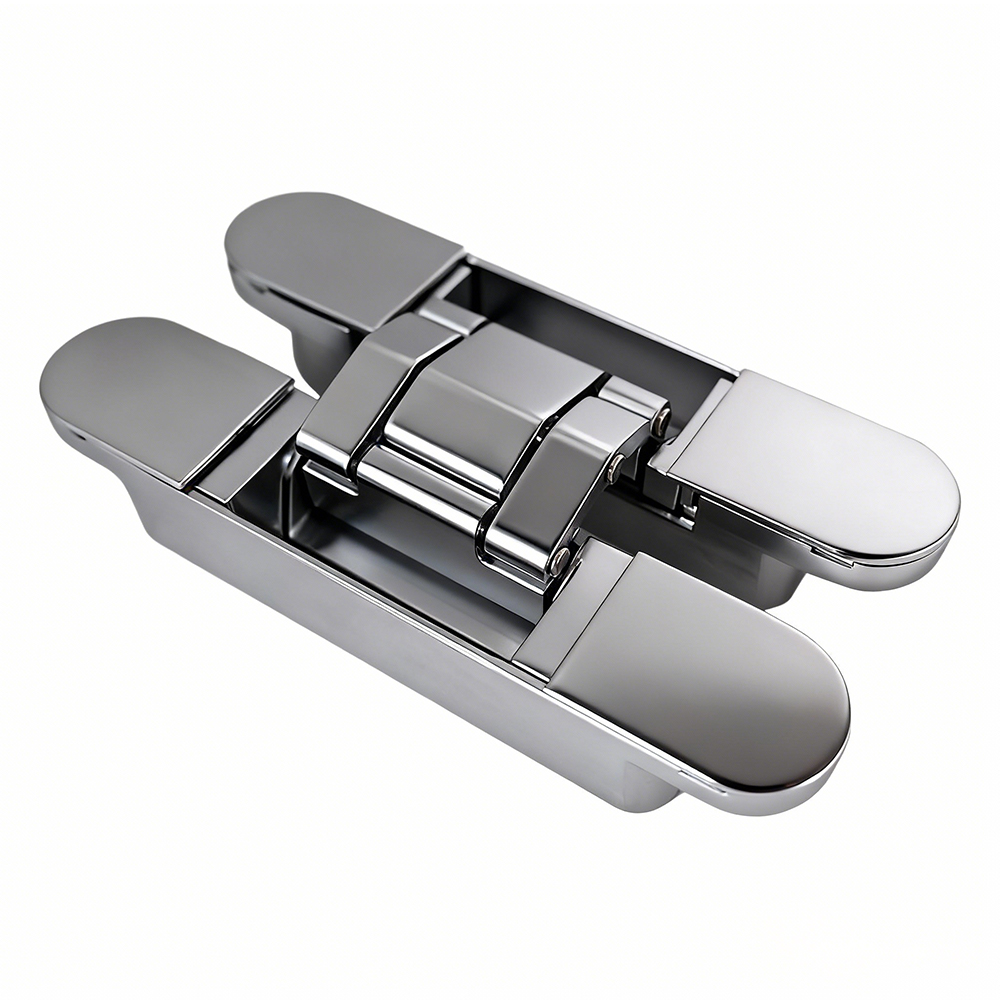

GE45 40KG

GE45 40KG

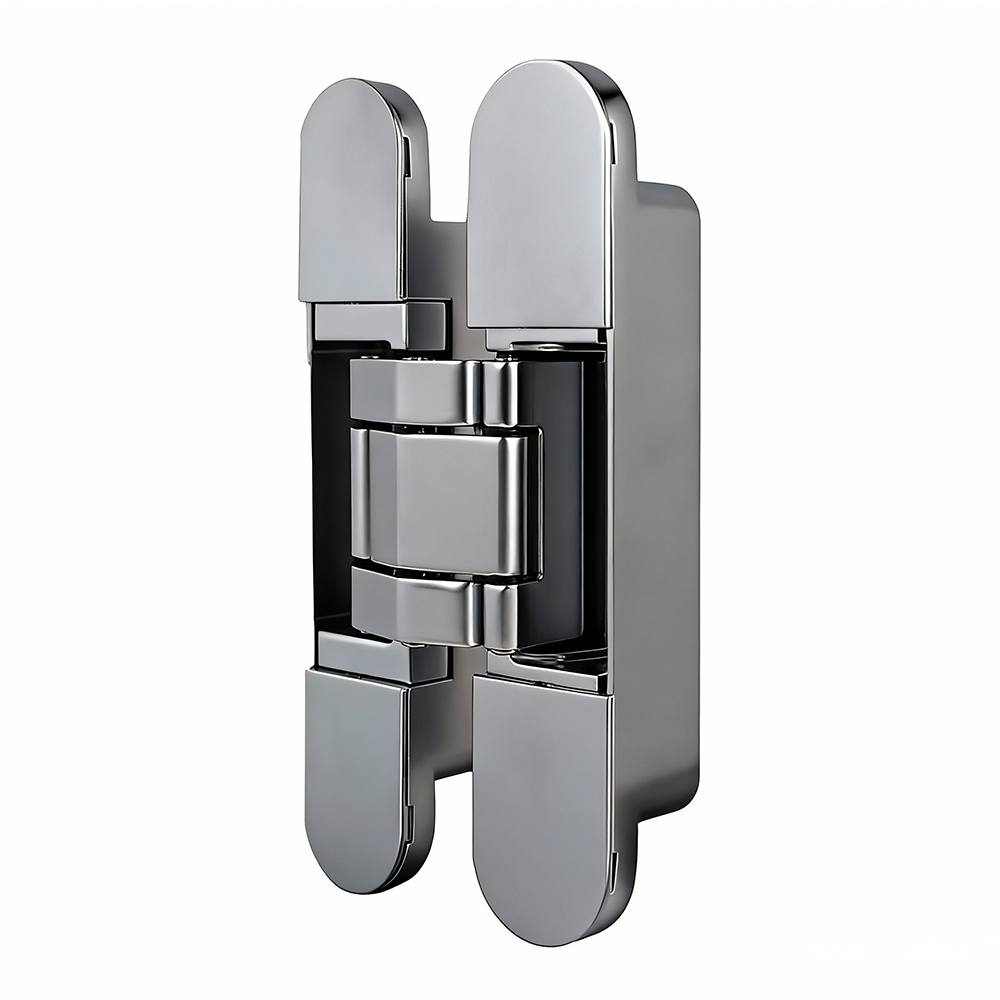

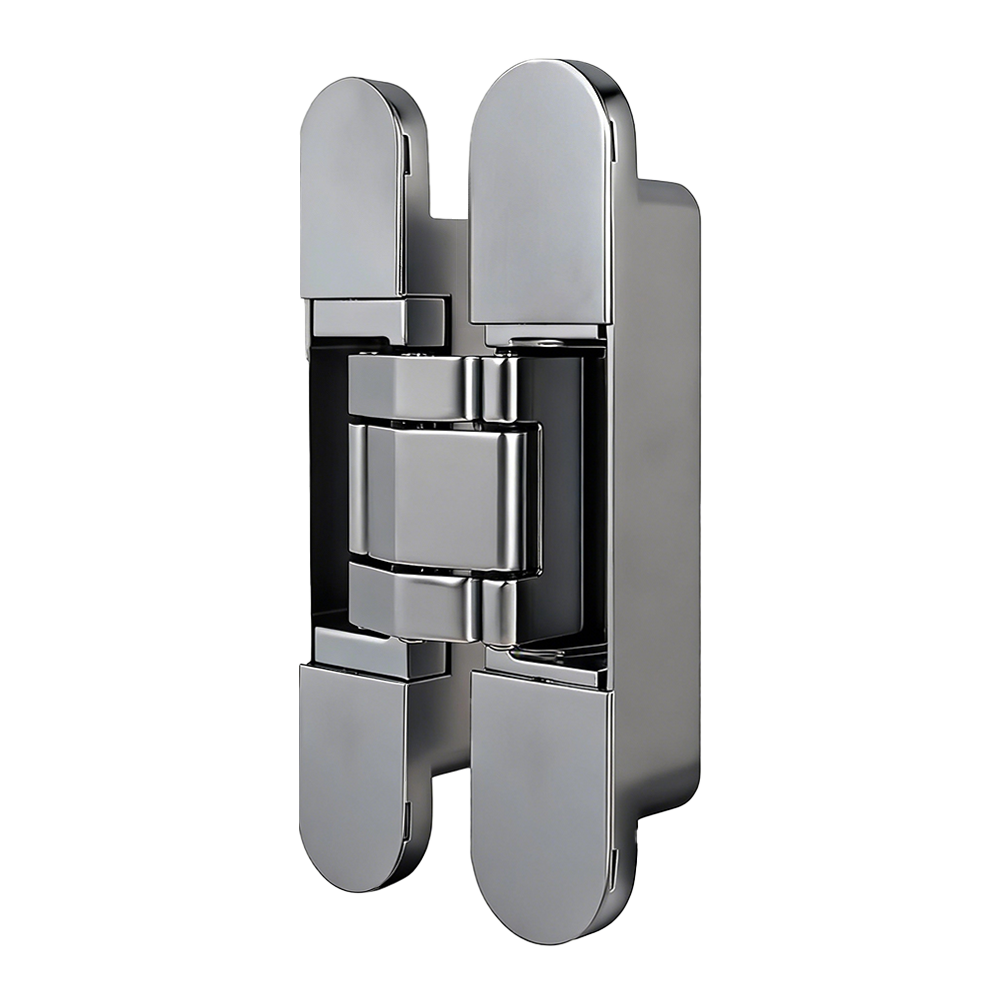

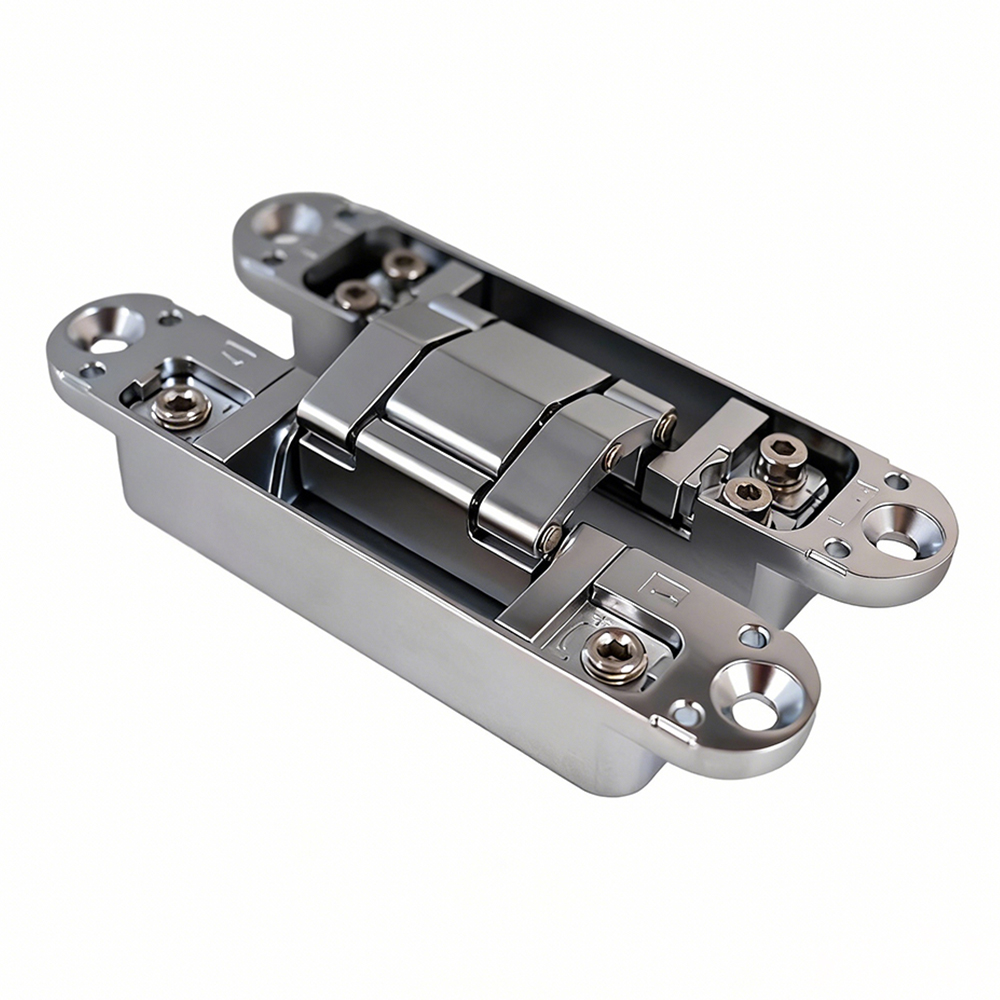

· The product is zinc alloy material

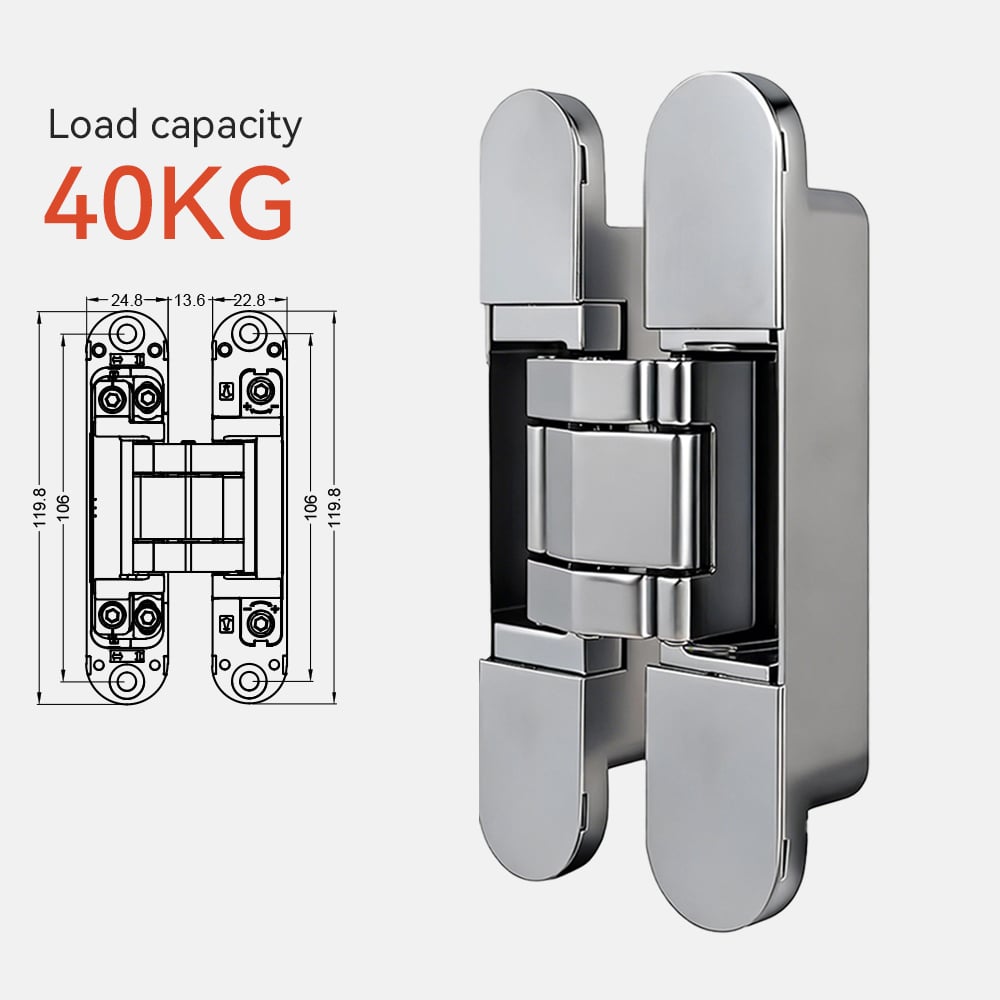

· Carry the door weighs 40 kg maximum

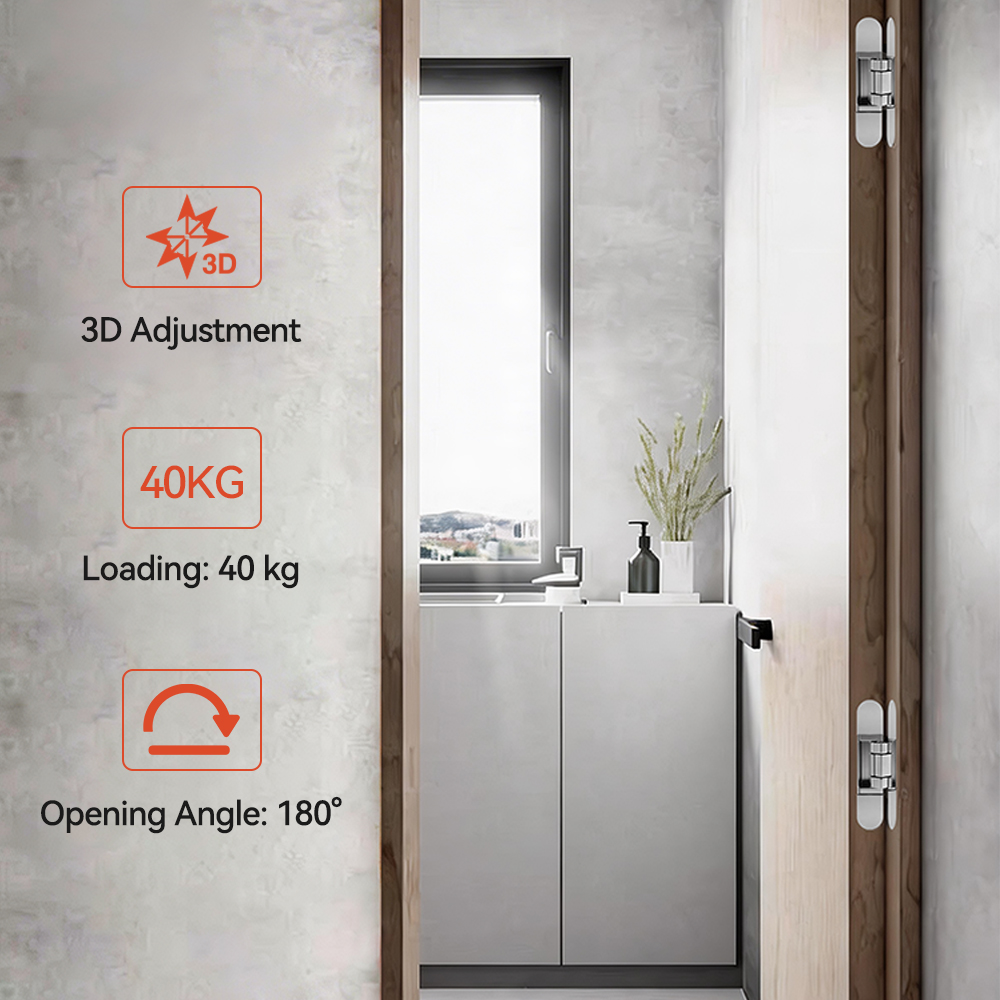

· The maximum opening angle is 180 °

· The minimum thickness of door leaf is 30 mm

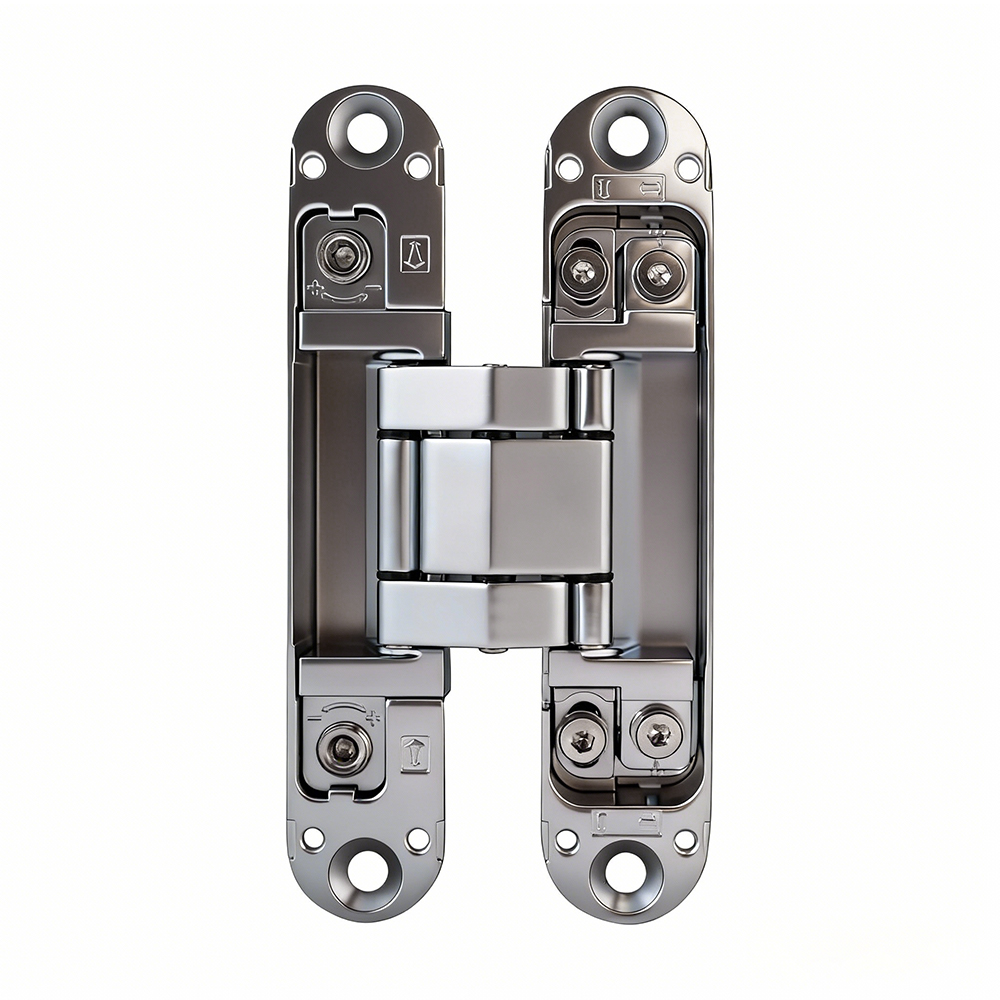

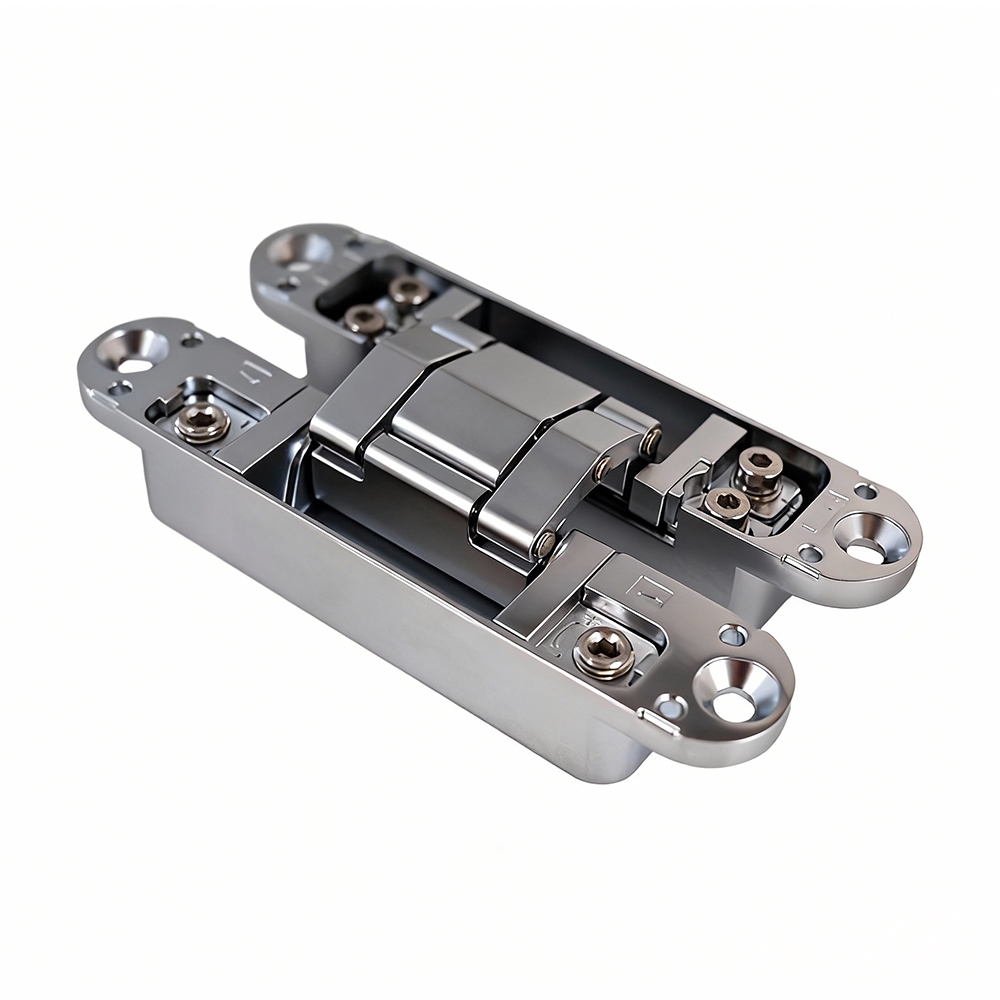

· Can be realized up and down adjustment ± 2.5 mm

left and right the adjustment ± 2.0 mm,before and

after the adjustment ± 1.0 mm,easy to install and use

Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG
GE45 40KG

40KGS Supper narrow door hidden hinge

  • Zinc alloy material
  • 2 hinge for 40kgs loading, 3hinge for 52kgs loading
  • Maximum open angle 180 degree
  • Up and down adjustment: 2.5mm
  • Right and left adjustment: 2mm
  • Front and back adjustment:1mm
  • Easy and install
  • 5 years warranty

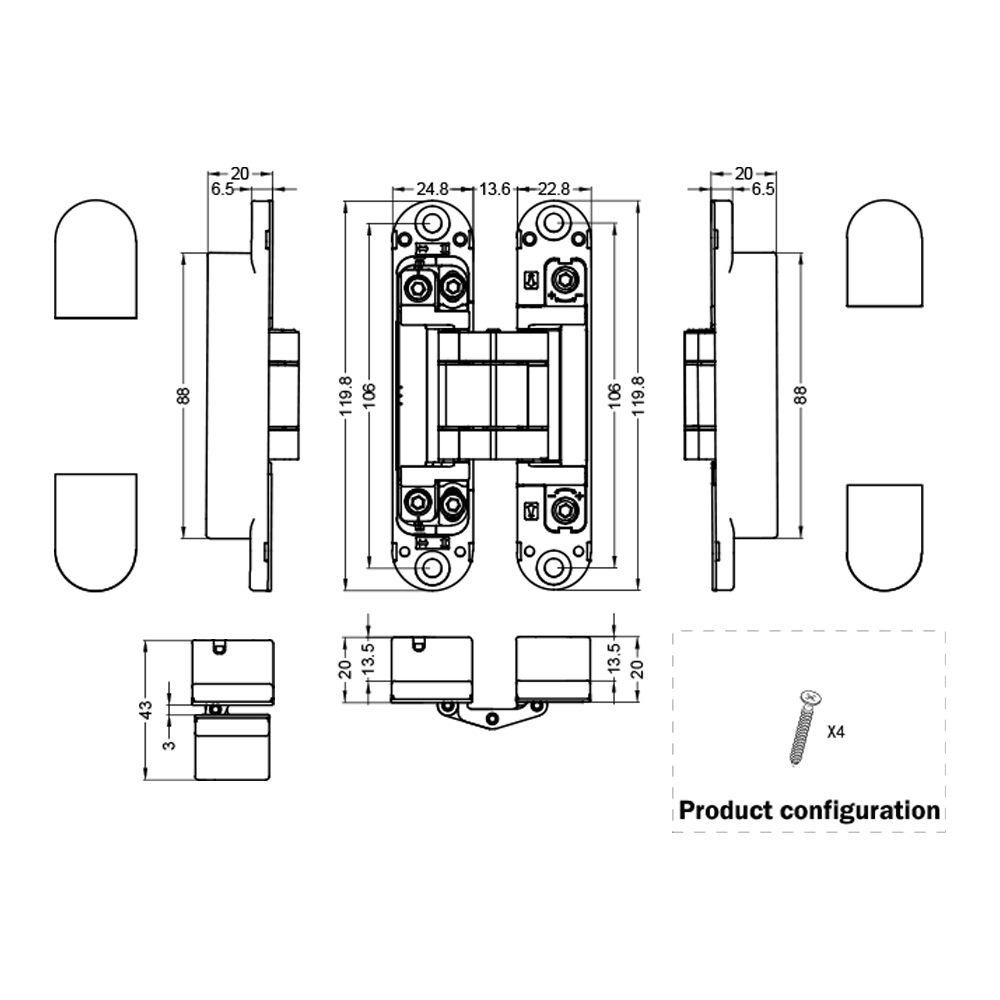

Length(door/frame)

120 / 120 mm

Width(door/frame)

23 / 25 mm

Opening angel

≤ 180°
