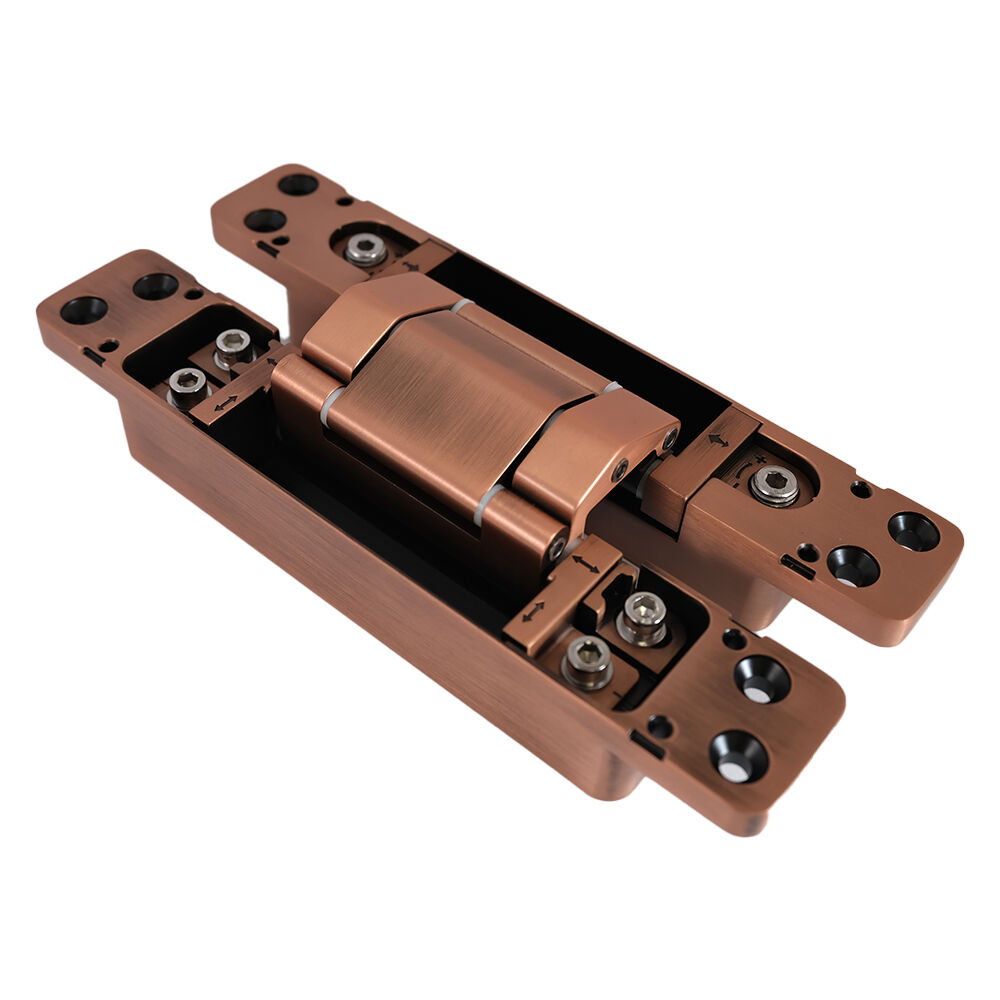

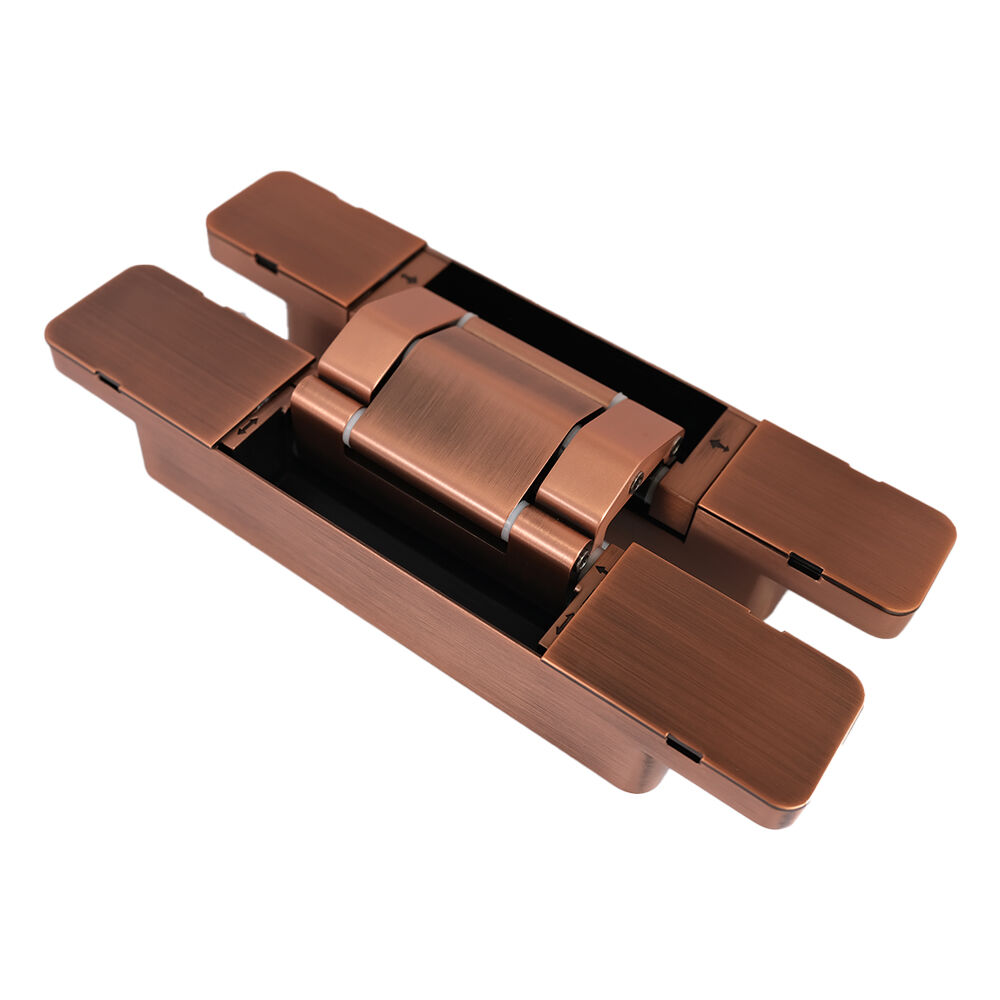

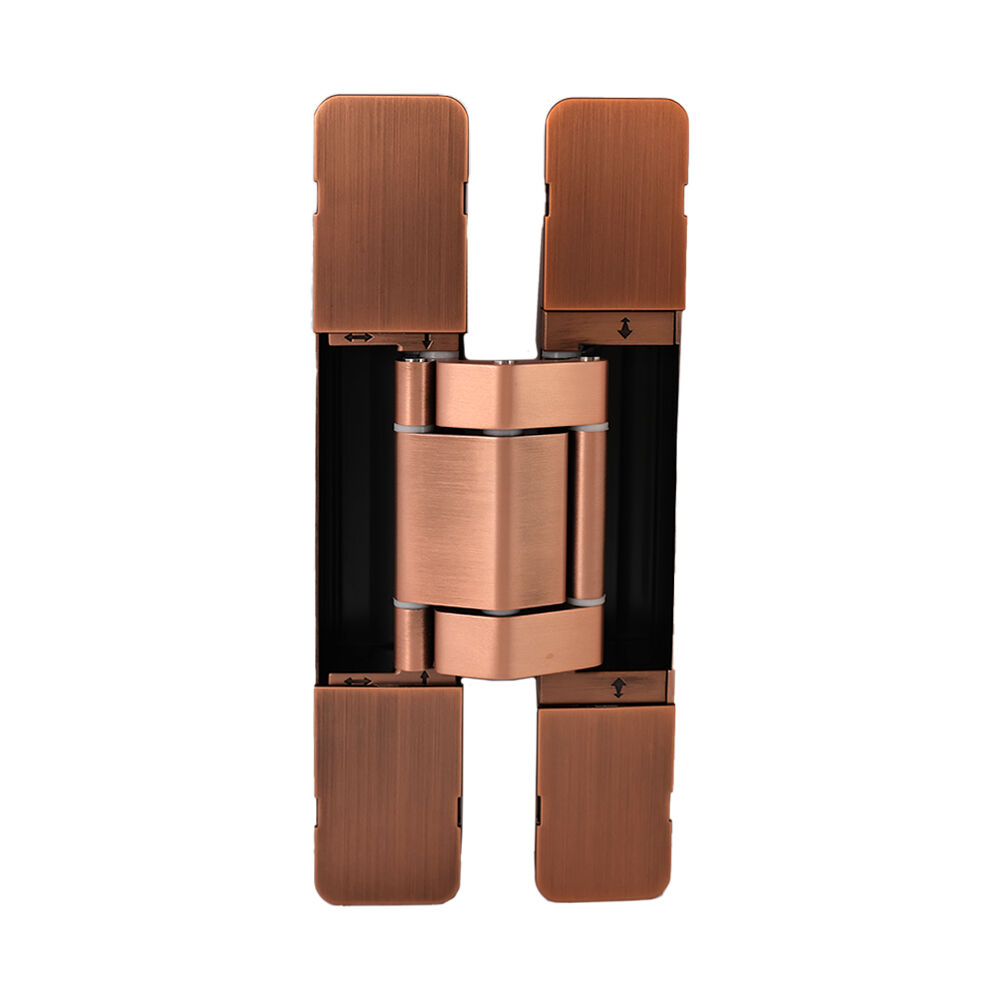

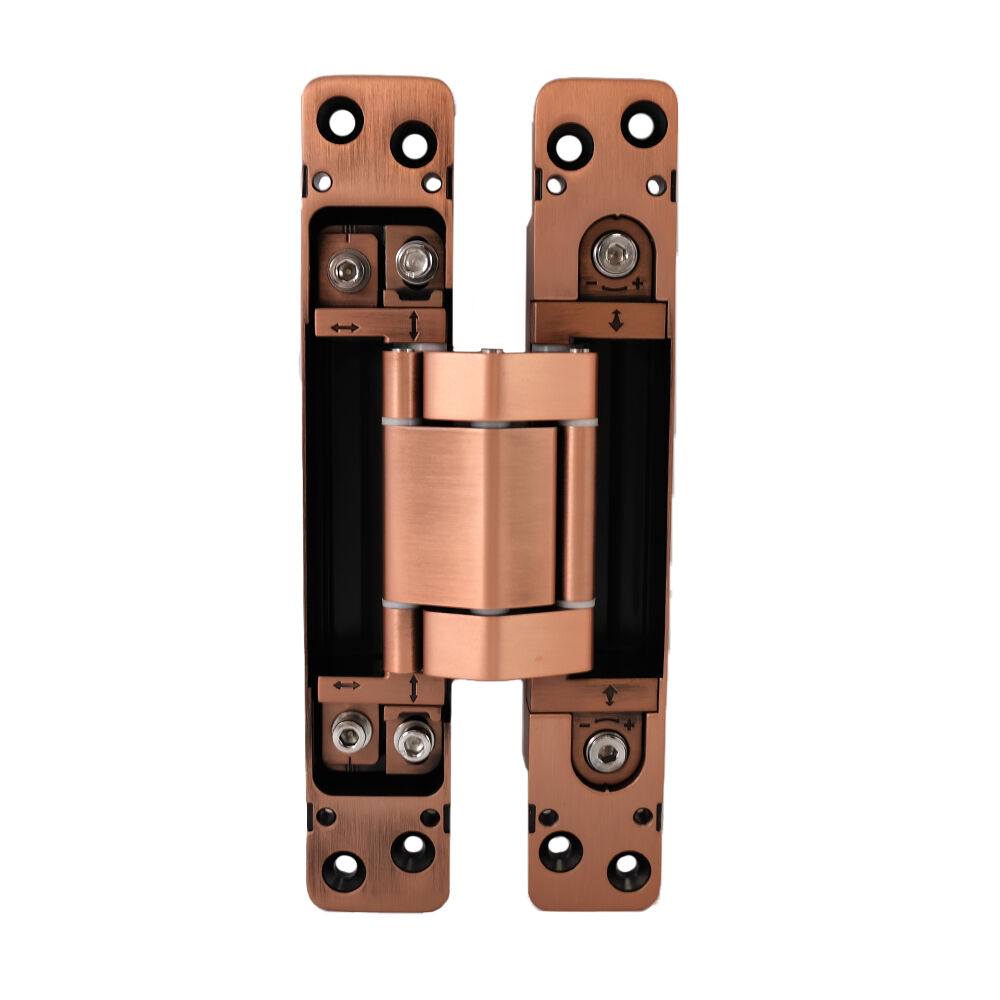

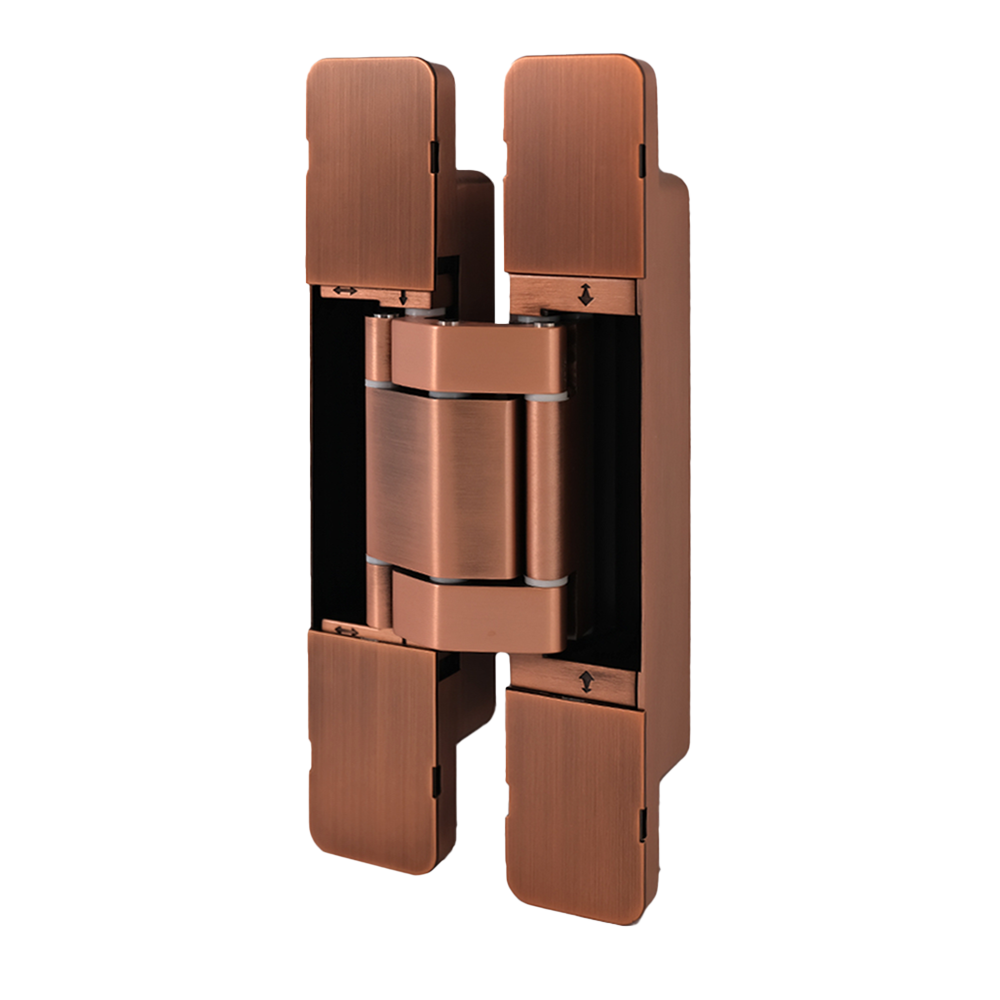

GE100 100KG
GE100 100kgs was set to create door hardware solutions of 100kgs wooden/metal door with the core value of being original. This one is suqure shape which is easy for metal door isntalling .This one is pupular in middle east and Canada ,USA.GE100 competitor is Lamp.However, GE75 give more economic solution for interior door

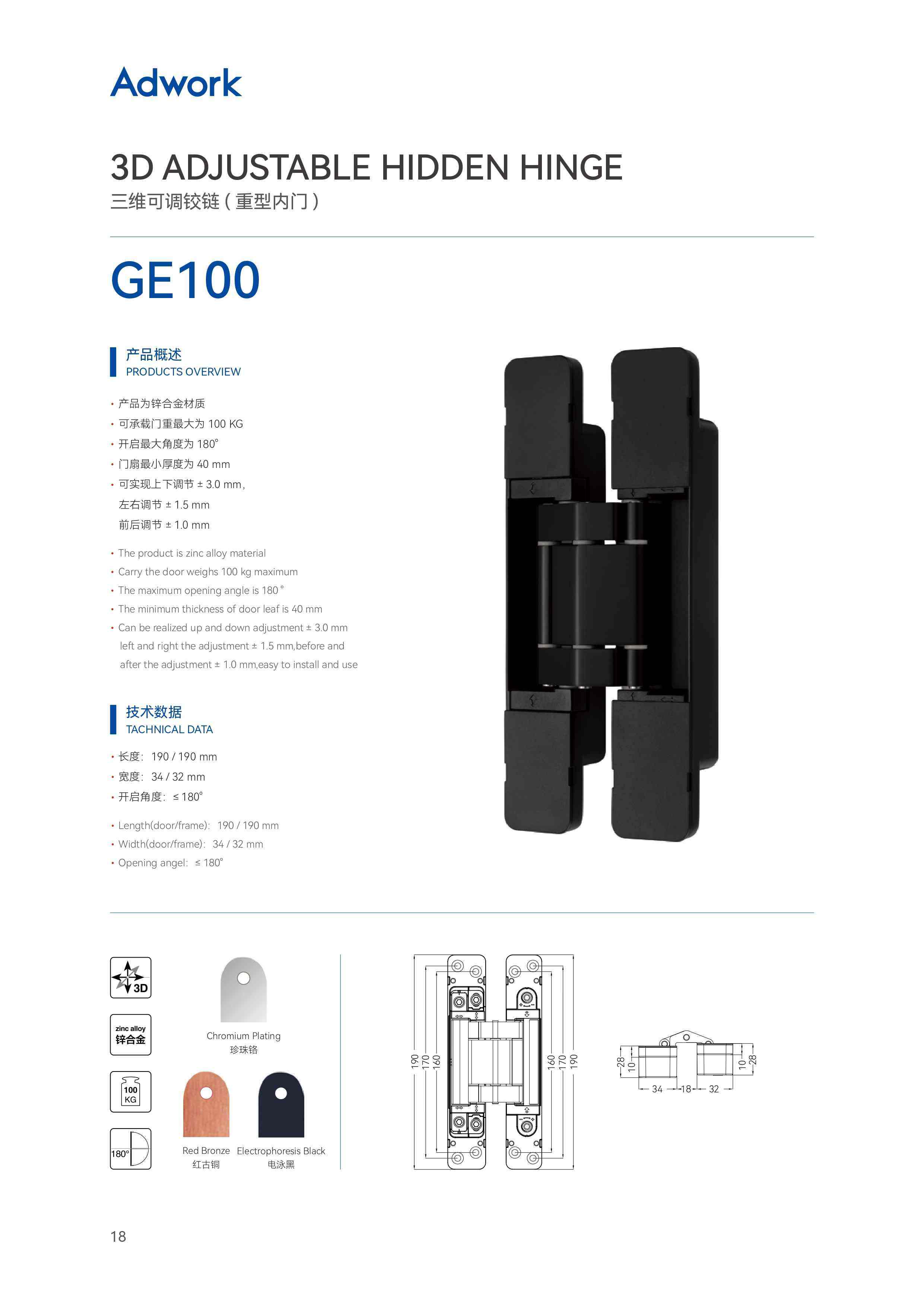

Date shet
Recommended for use on interior doors:3 hinge for one door
Max. door weight: 100kgs/2hinges , 120kgs/3hinges
Min. door thickness: 40mm
Max. door dimensions:H2.2 W1m
It is not done in fire rateding testing:
Tested for 200,000 open/door cycles in door movement life testing
Finishes: White,Black,Silver, red bronze

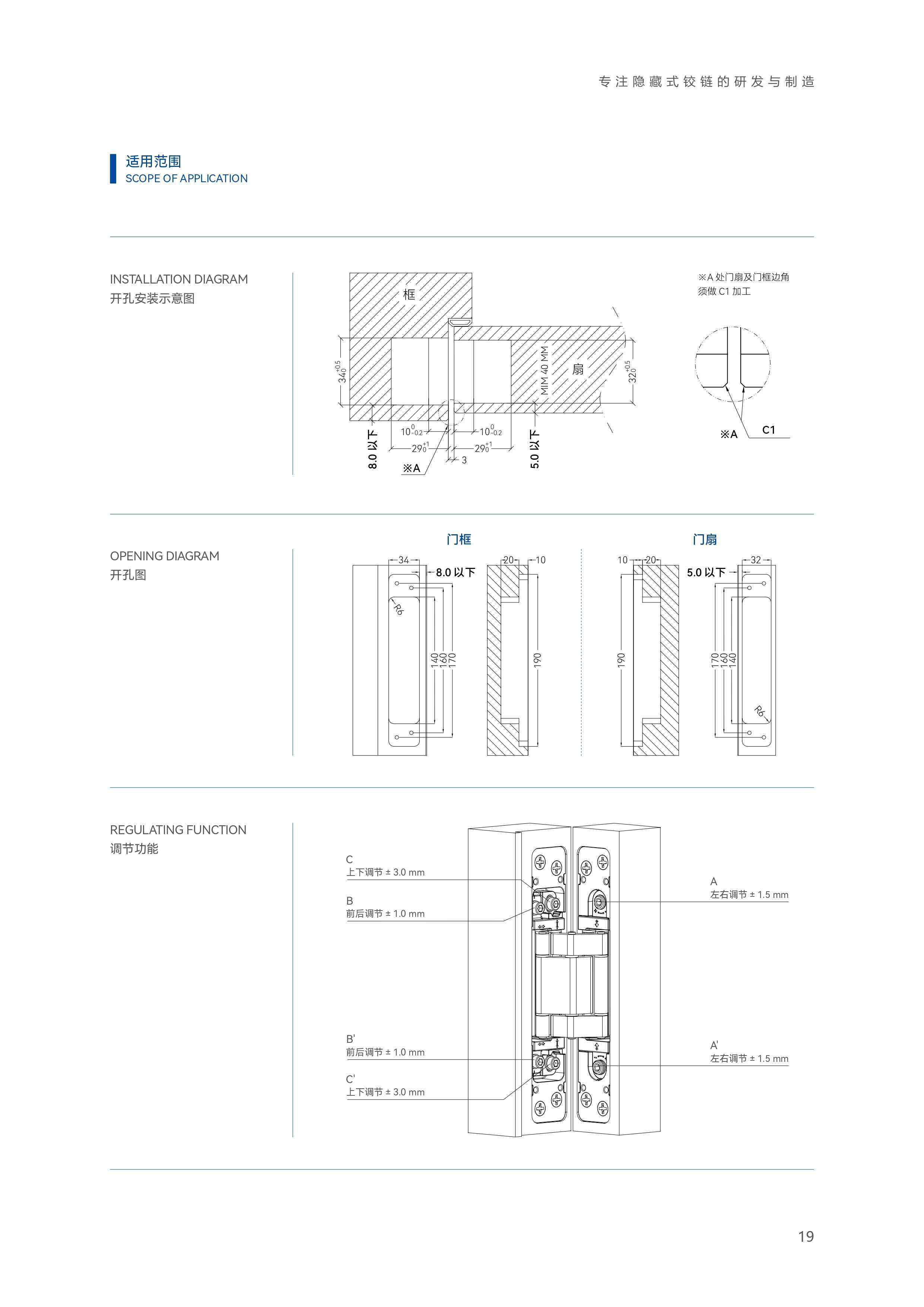

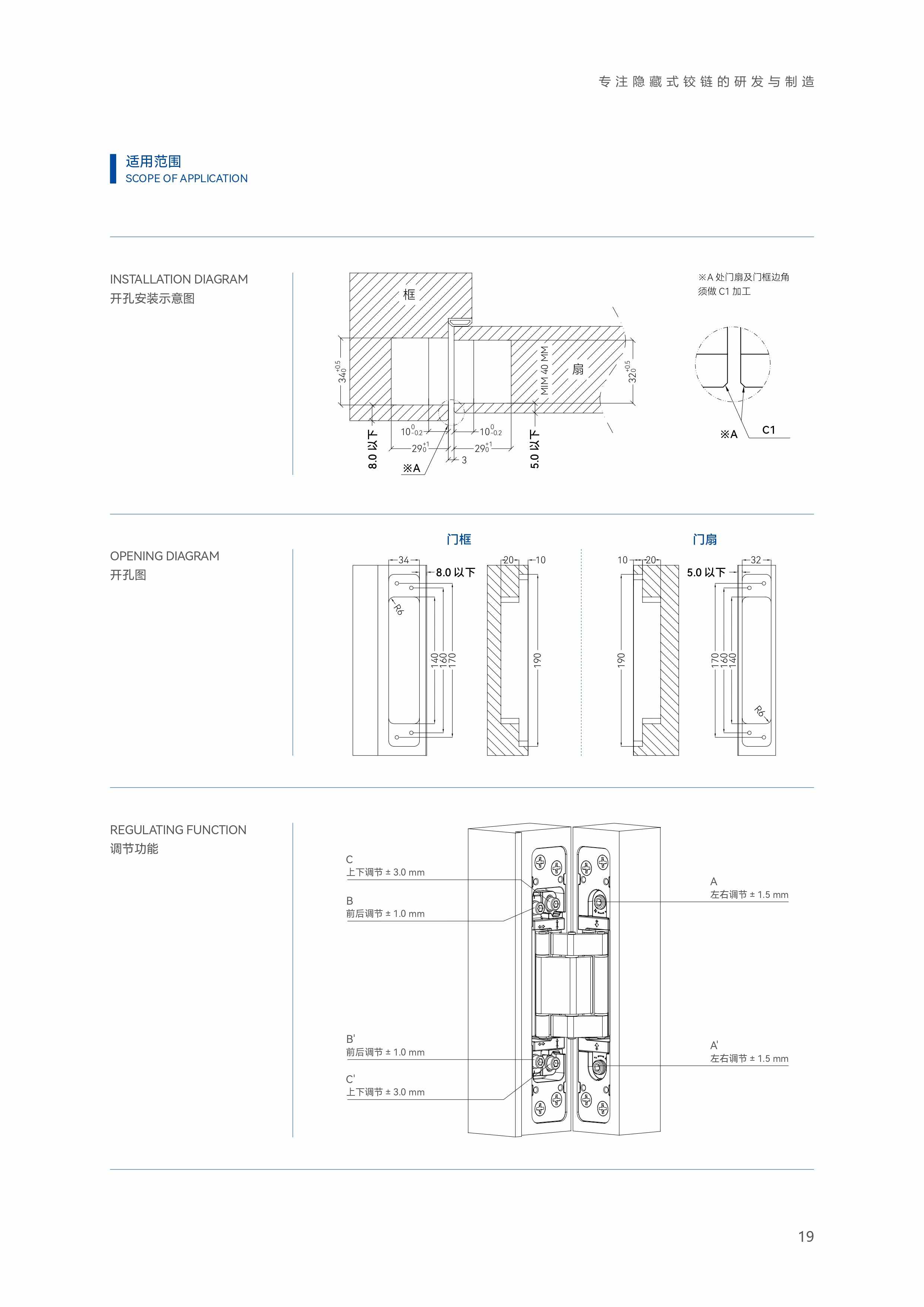

Hinge installing position to the edge:8.0mm
- Overview
- Parameter
- Inquiry
- Related Products
| Item | concealed hinge door hidden hinge |
| Material | zinca alloy 5# |
| loading | 2 hinges for 100kgs |
| open angle | 180 degree |
| door thickness | 40mm |
| up down adjusted | 2mm |
| left right adjust | 3mm |
| front and back adjust | 1mm |
| available color | Silver,white,peal gun,black |
| Origin | Made in China |
