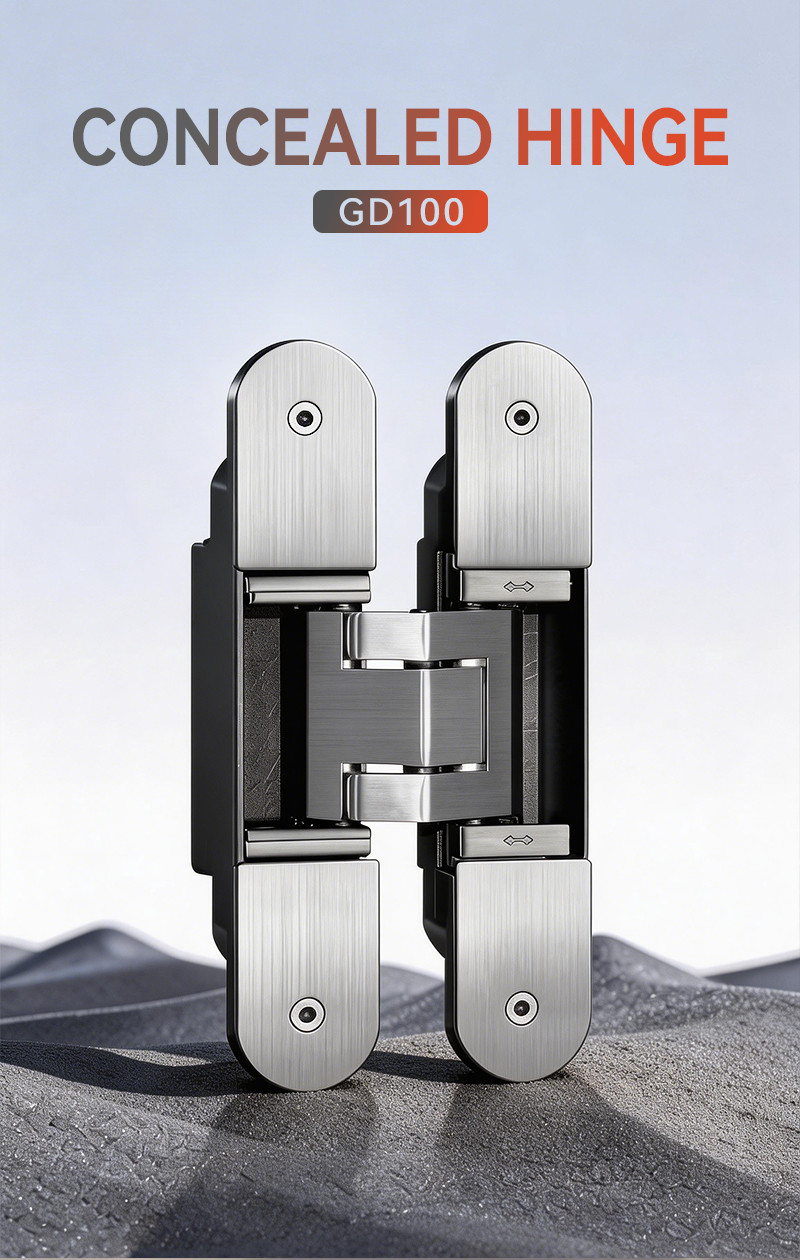

GD100 120KG

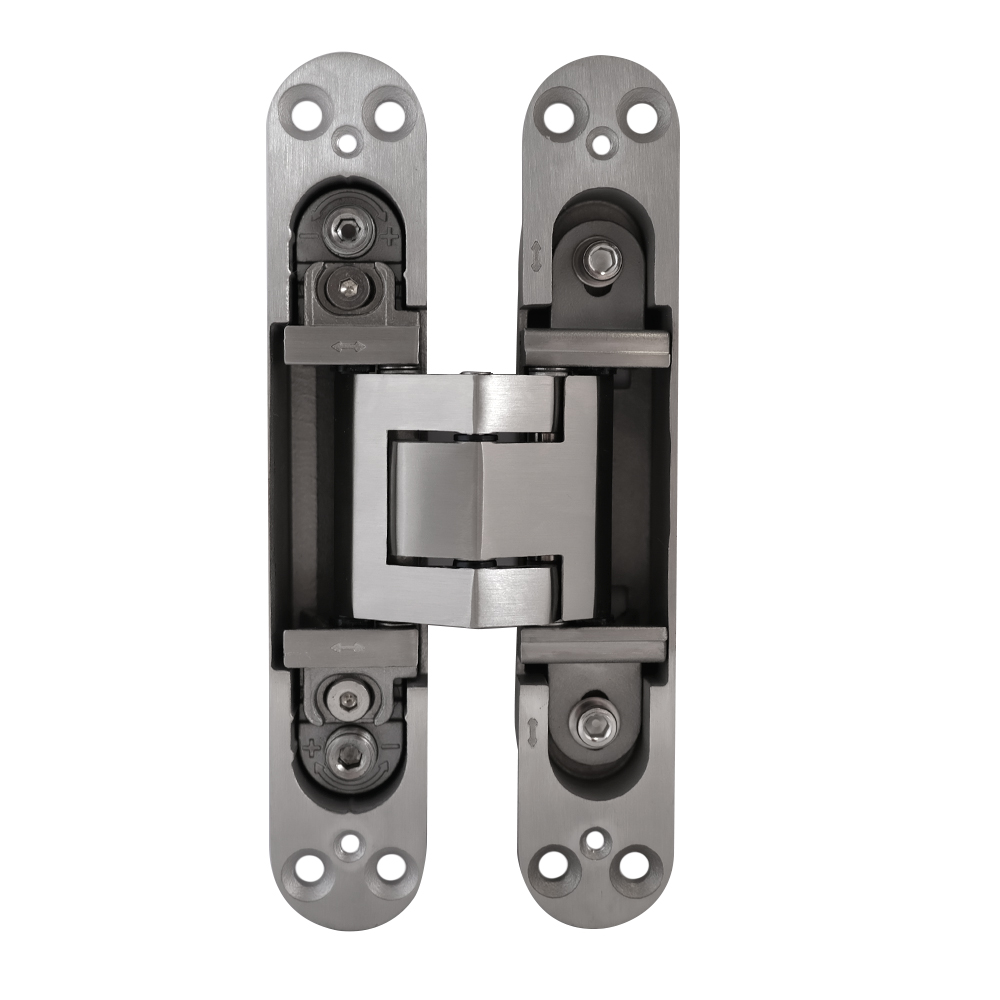

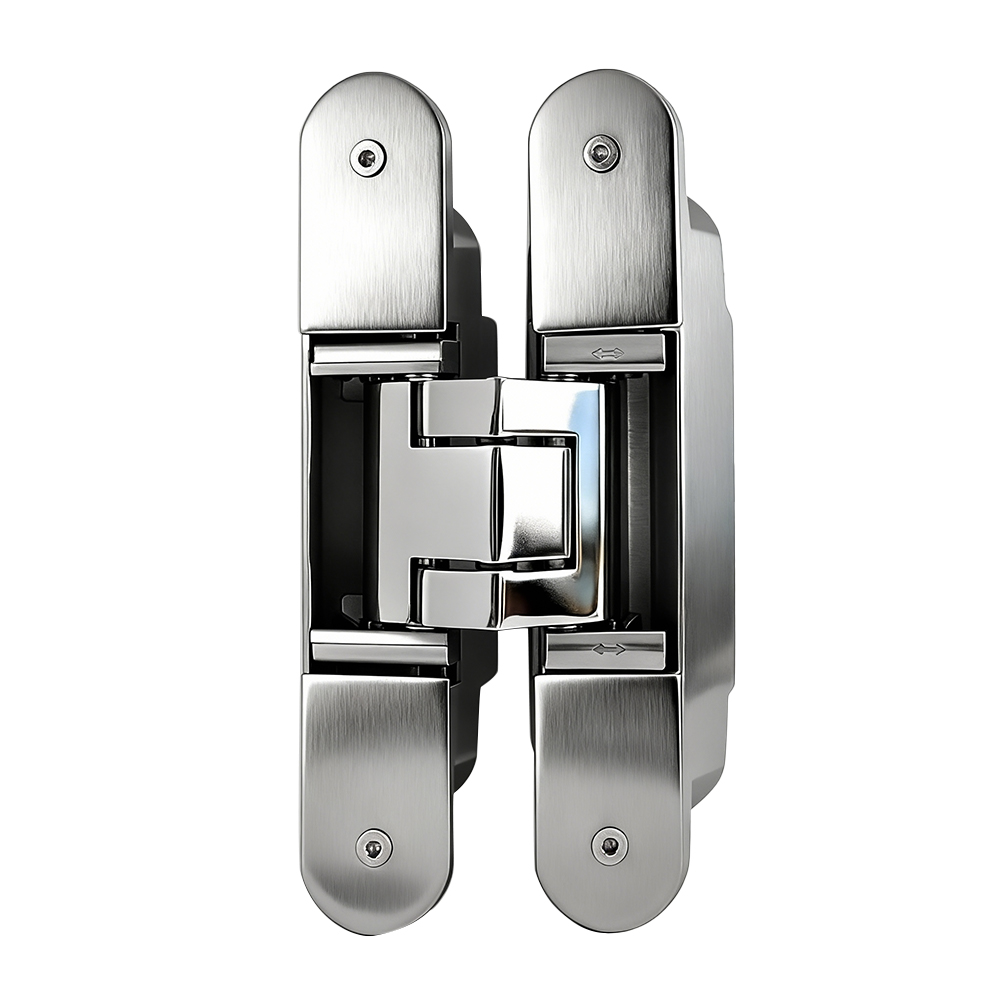

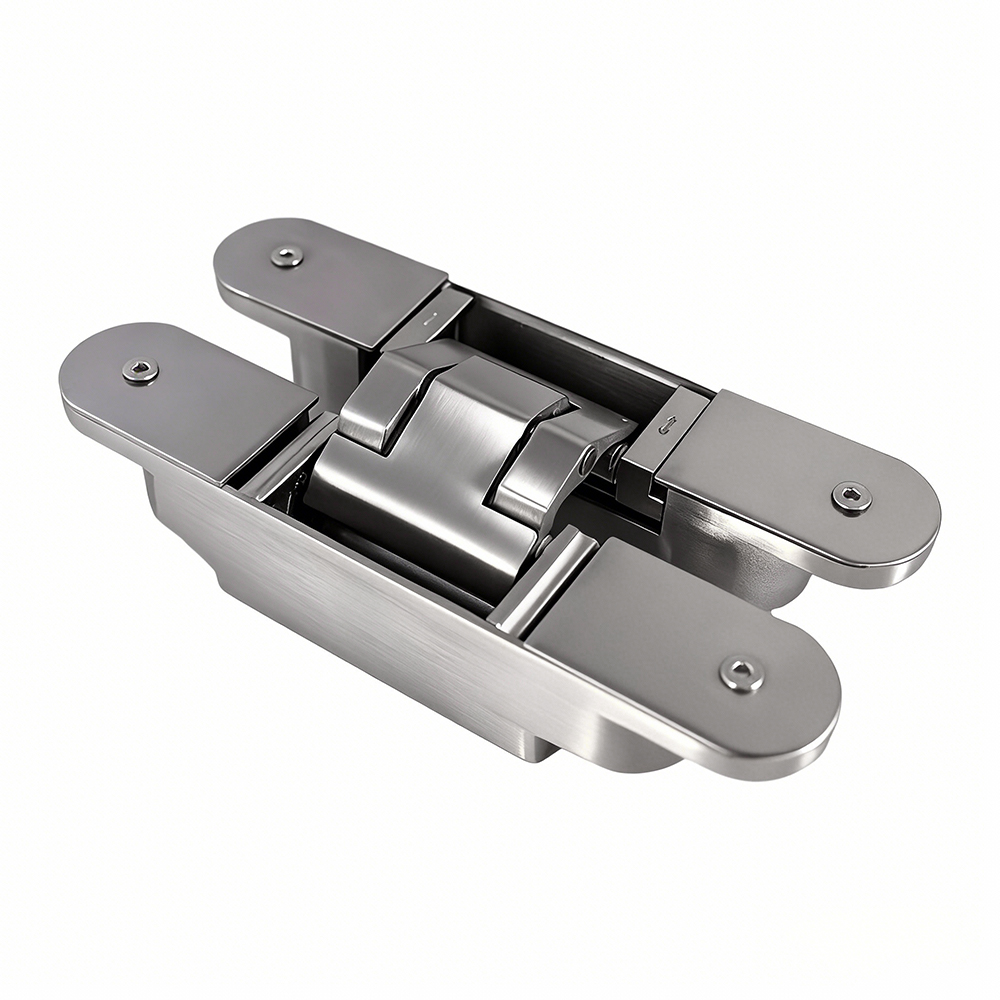

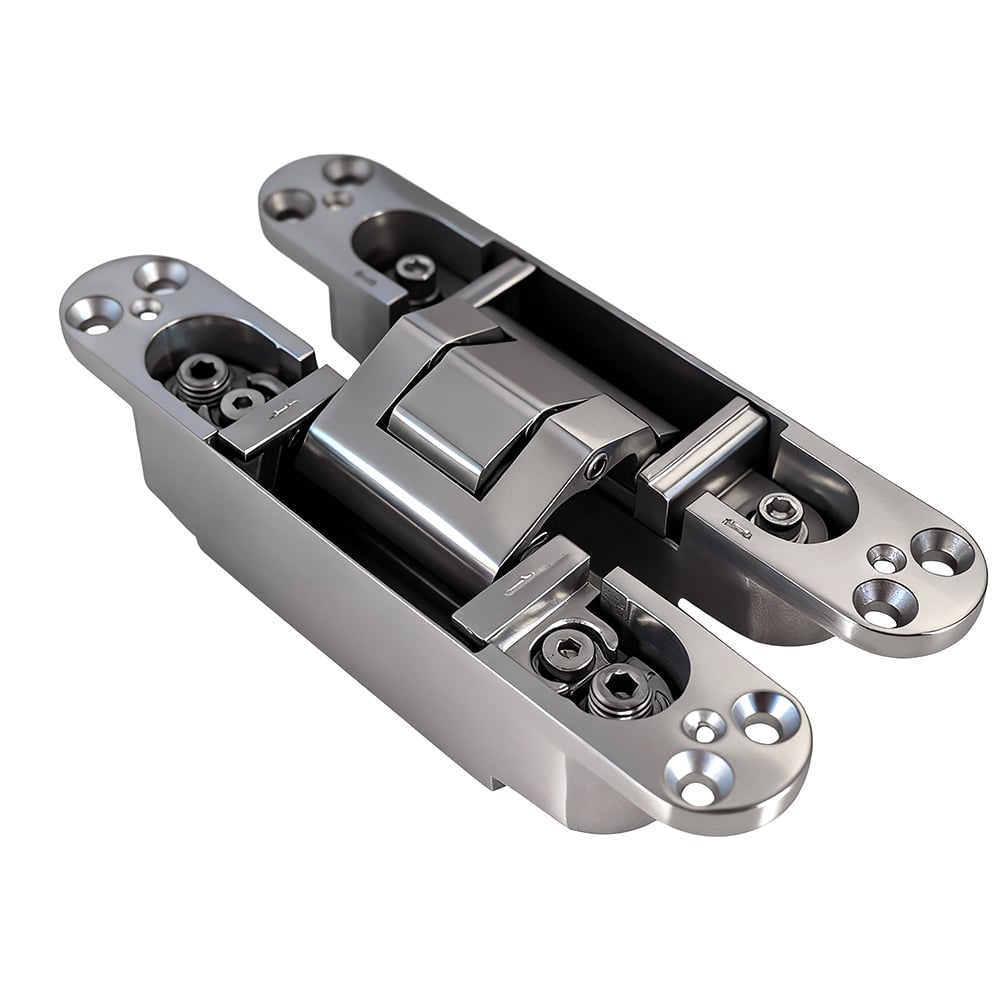

EN1634 Fire rated Stainless steel Door hidden hinge conceal hinges
· The product is SUS304 material:EN1634 FR-132
· EN1935 200 000circle life

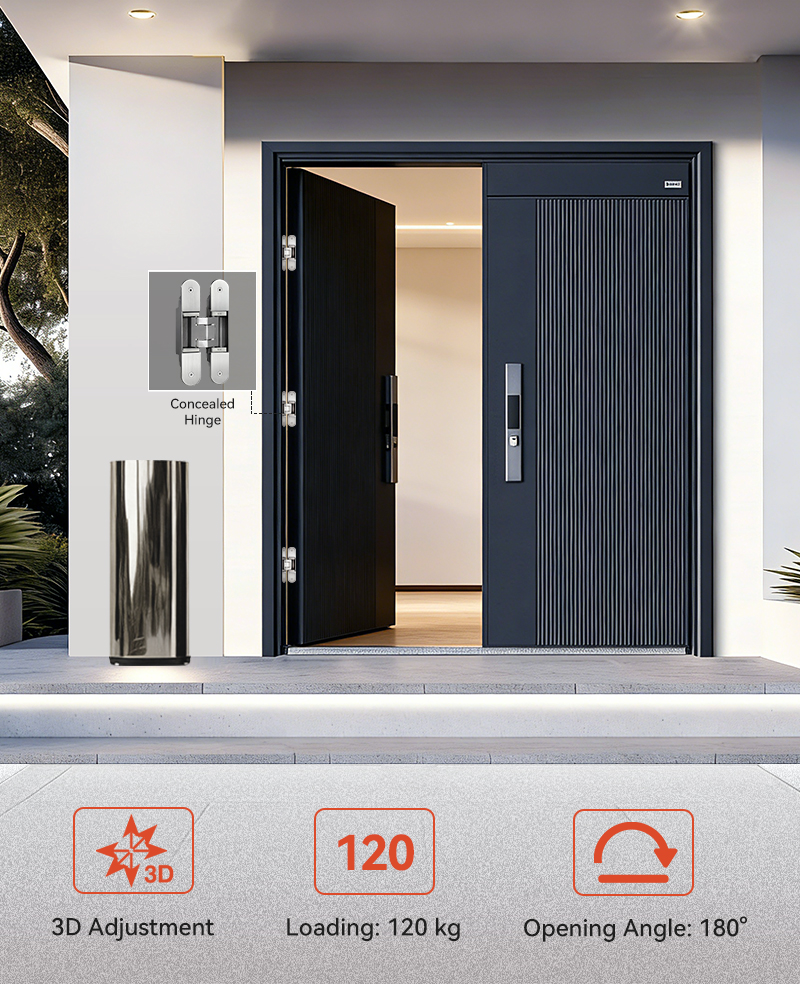

· 2 GD100 conceal hinges for 120kgs 3 GD100 150KGS
· The maximum opening angle is 180 °
· The minimum thickness of door leaf is 40 mm
· Can be realized up and down adjustment ± 3.0 mm
left and right the adjustment + 3.5 / - 2.0 mm,before
and after the adjustment ± 1.5 mm,easy to install and use
- Overview
- Parameter
- Inquiry
- Related Products
|

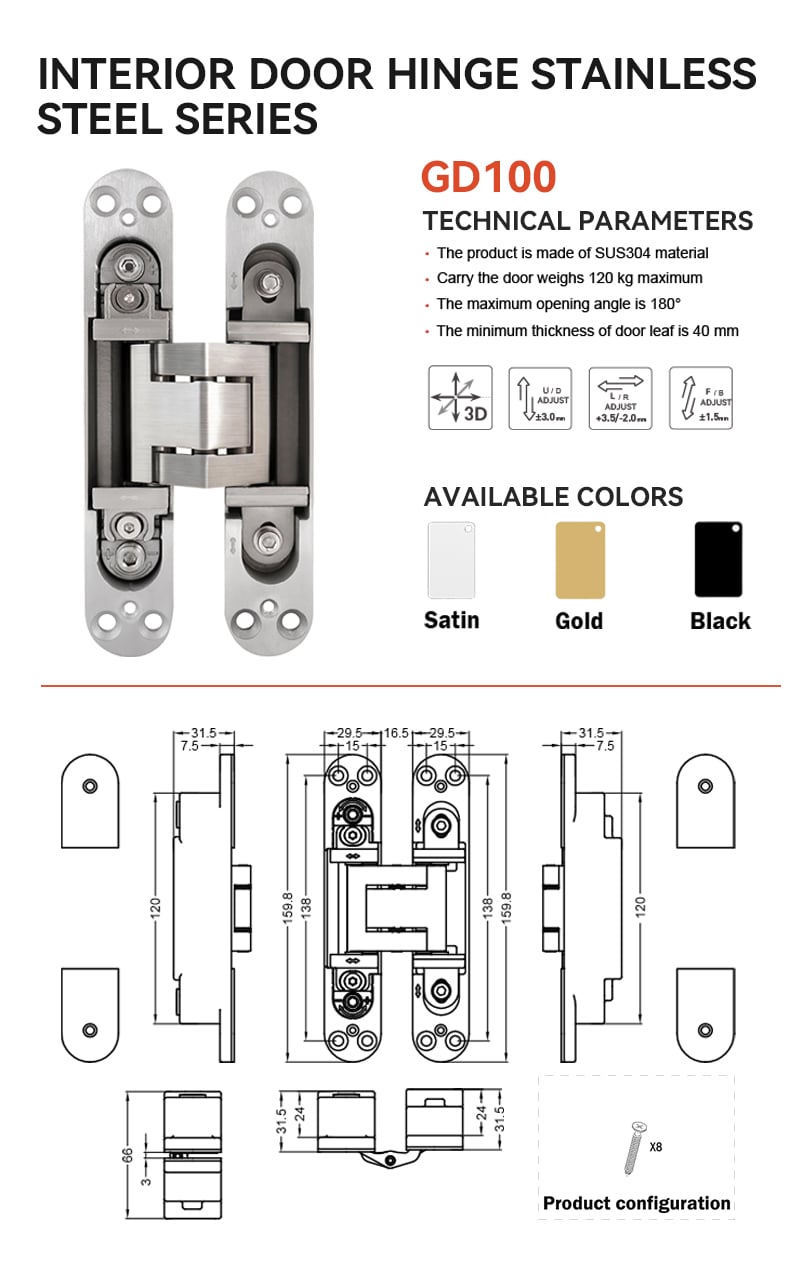

Length(door/frame) |
160 / 160 mm |
|
Width(door/frame) |
30 / 30 mm |
|
Opening angel |
≤ 180° |
