EN1634 FR-132 fireproof door hinges 3D adjusted door hidden hinges
EN1634 FR-132 fireproof door hinges 3D adjusted door hidden hinges

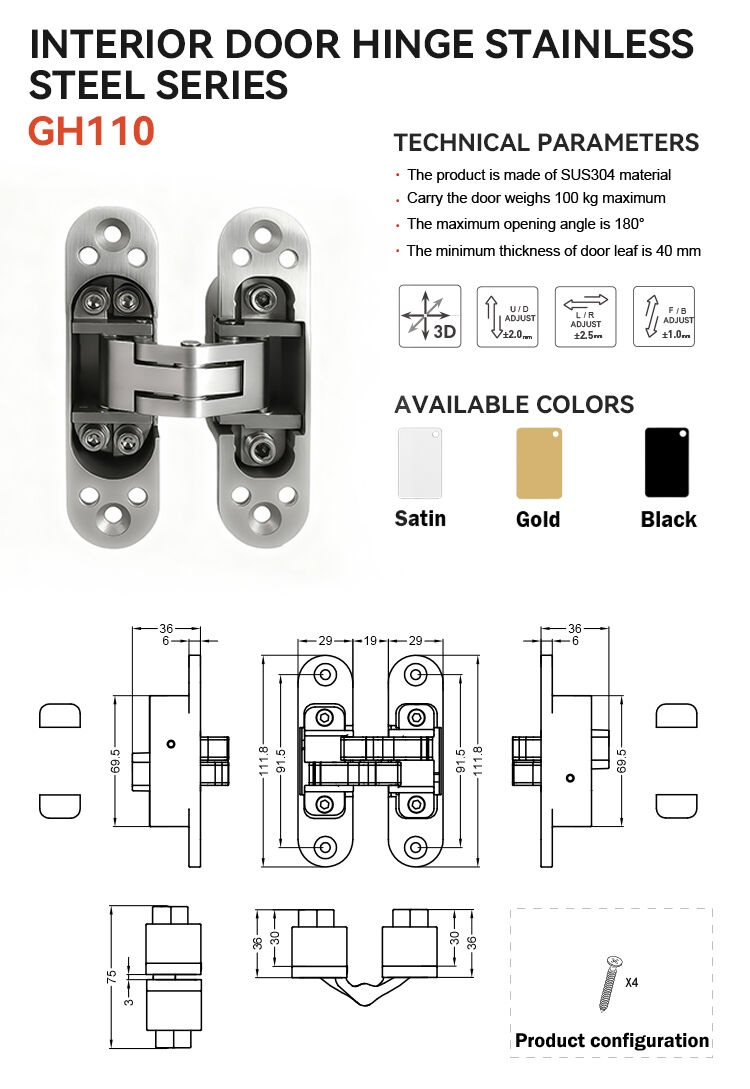

· The product is SUS304 material==EN1634 fire rated material

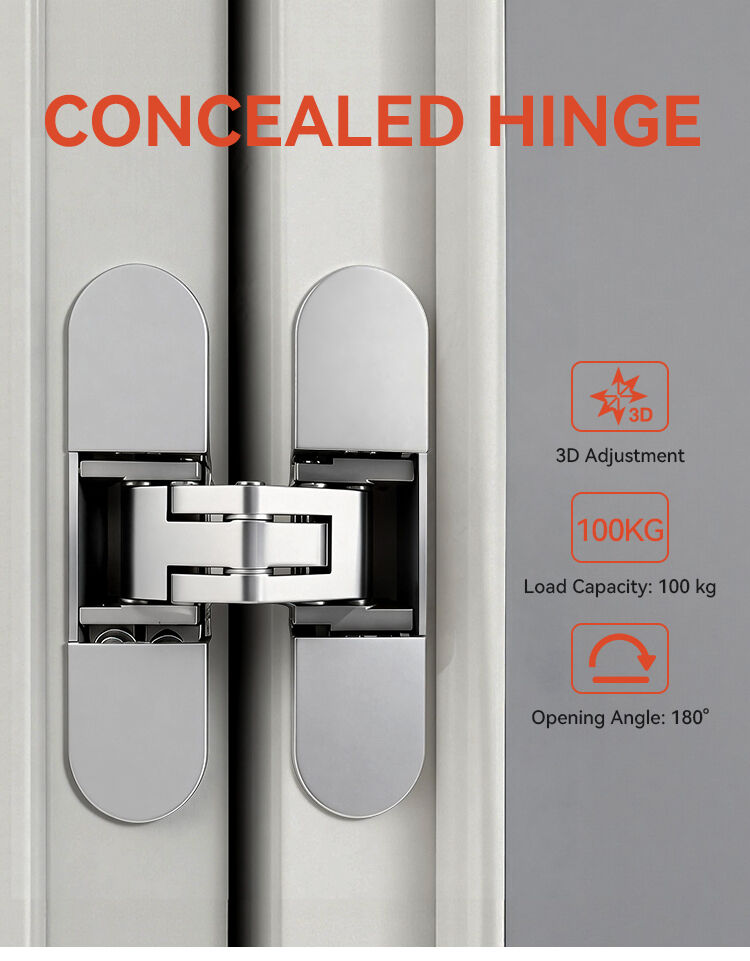

· Carry the door weighs 100 kg maximum

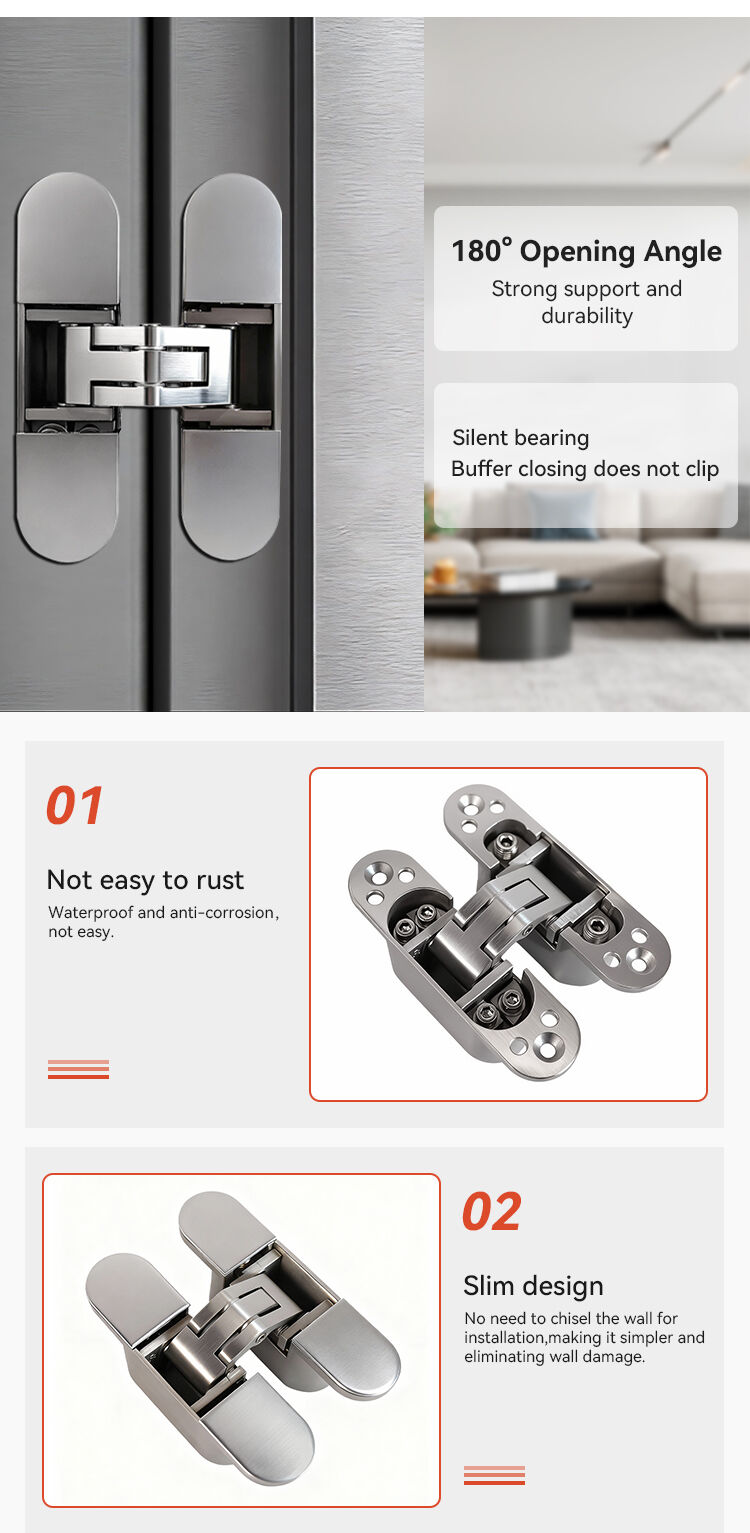

· The maximum opening angle is 180 °
· Minimum of 40 mm door leaf Thickness
· Can be realized up and down adjustment ± 2.0 mm left and right the adjustment ± 2.5 mm,before and after the adjustment ± 1.0 mm,easy to install and use
Available in stock
Fast delivery
- Overview
- Parameter
- Inquiry
- Related Products
|
Length(door/frame) |
112 / 112 mm |
|
Width(door/frame) |
30 / 30 mm |
|
Available color |
Satin or Black |
|
3D adjusted |
Yes |
|
Drilling deepth |
35mm |
|
Opening angel |
≤ 180° |
