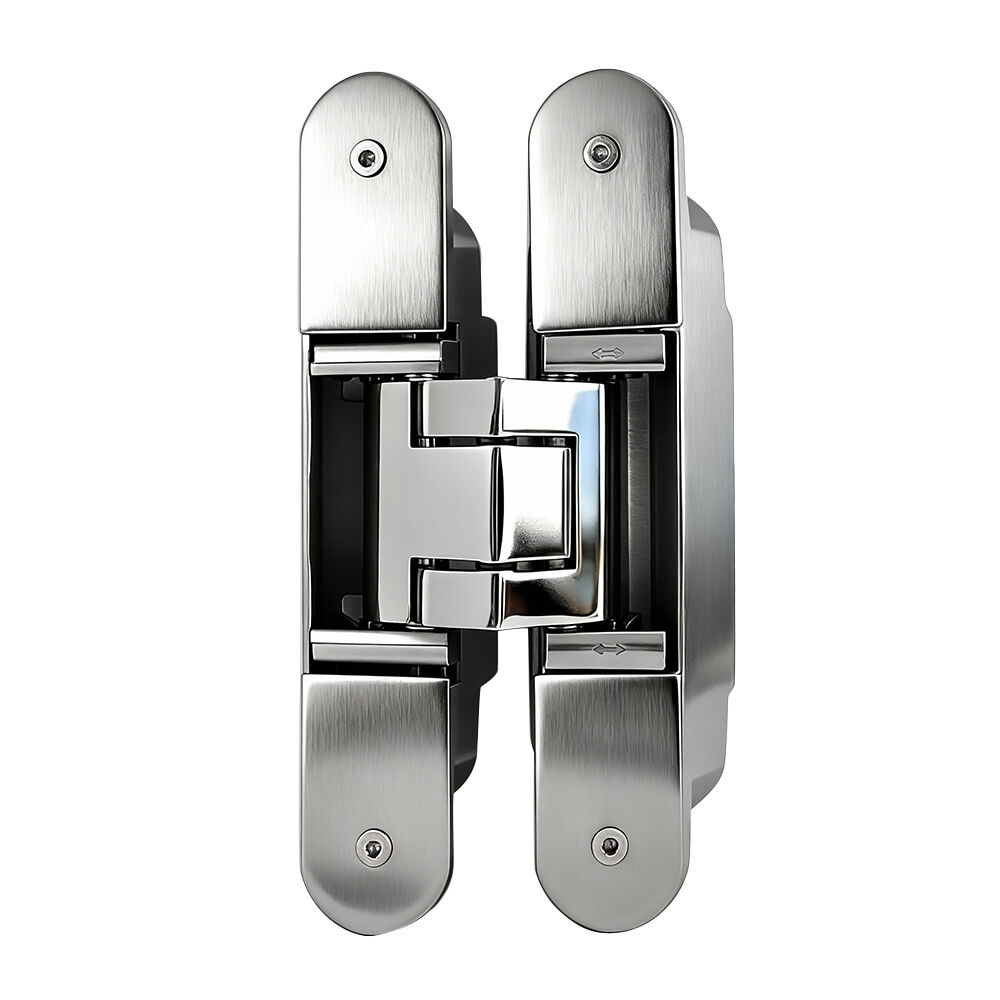

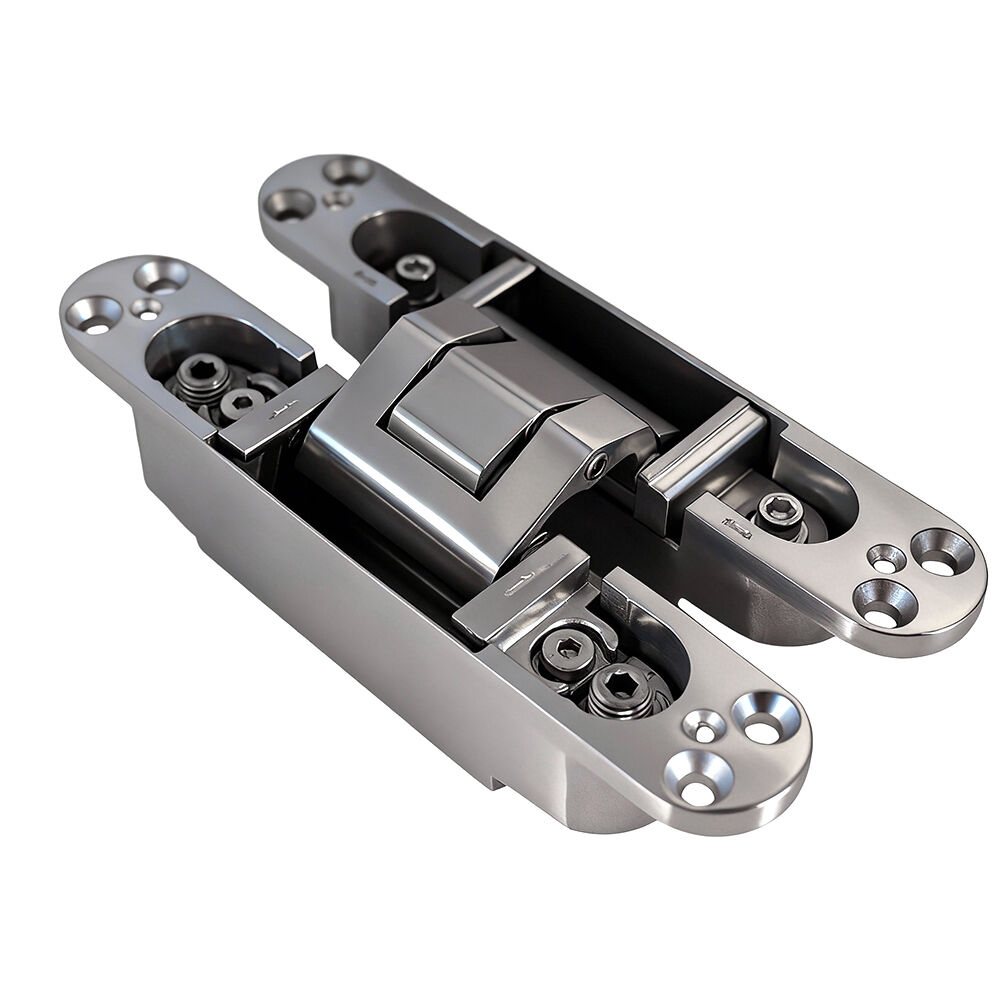

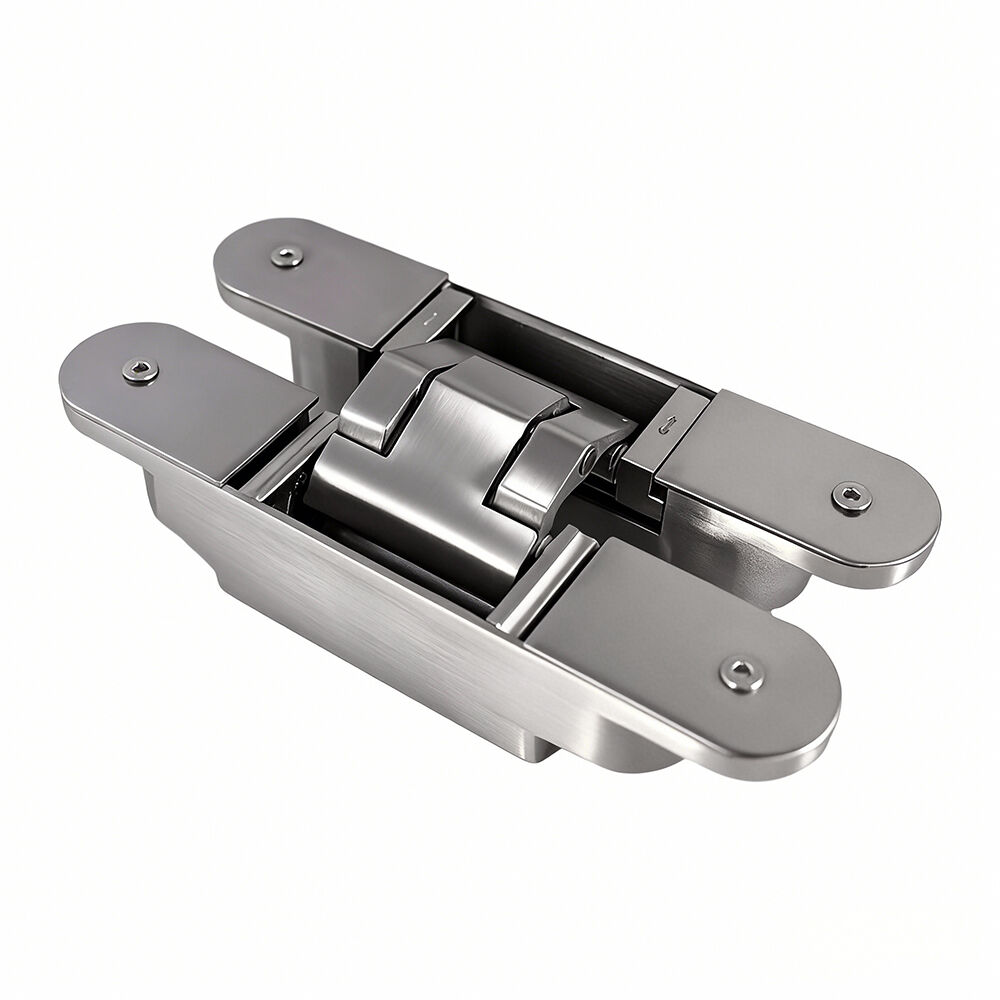

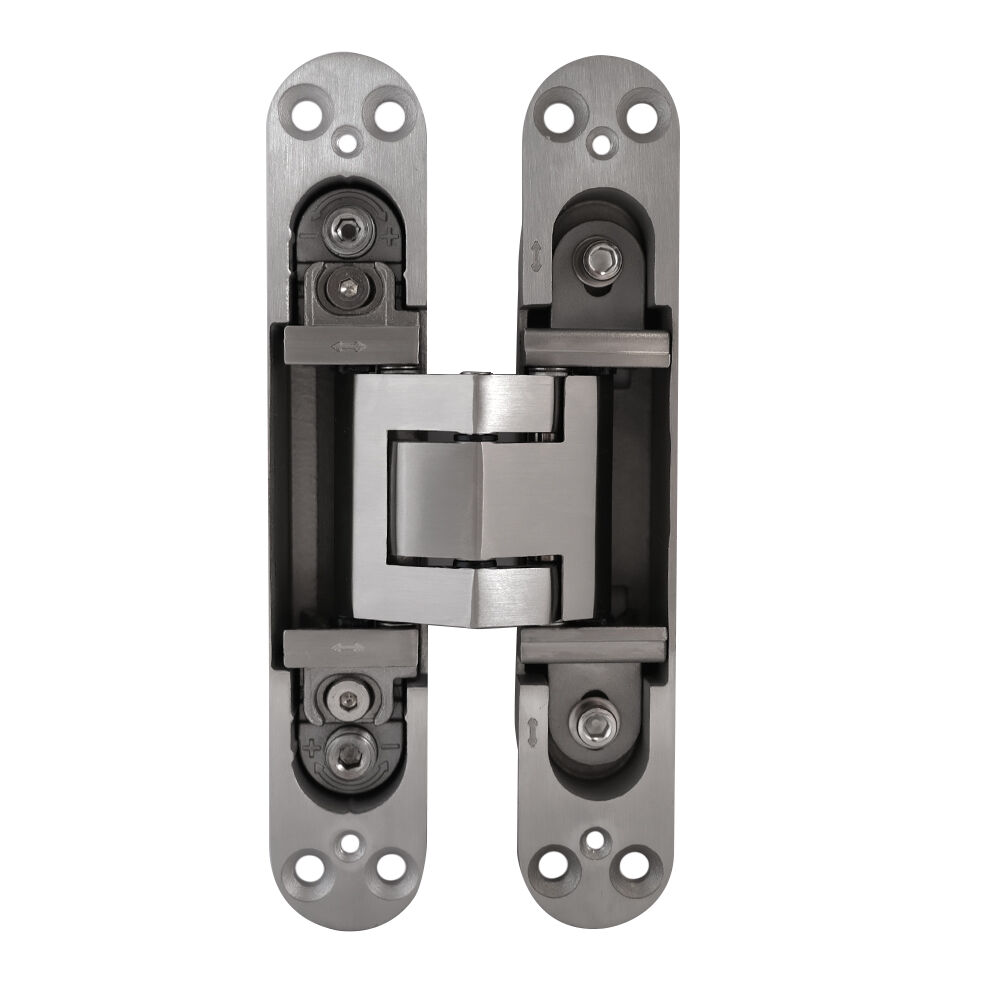

EN1634 Fire rated Stainless steel Door hidden hinge conceal hinges

· The product is SUS304 material:EN1634 FR-132

· EN1935 200 000circle life

· 2 GD100 conceal hinges for 120kgs 3 GD100 150KGS

· The maximum opening angle is 180 °

· The minimum thickness of door leaf is 40 mm

· Can be realized up and down adjustment ± 3.0 mm

left and right the adjustment + 3.5 / - 2.0 mm,before

and after the adjustment ± 1.5 mm,easy to install and use

Inquiry

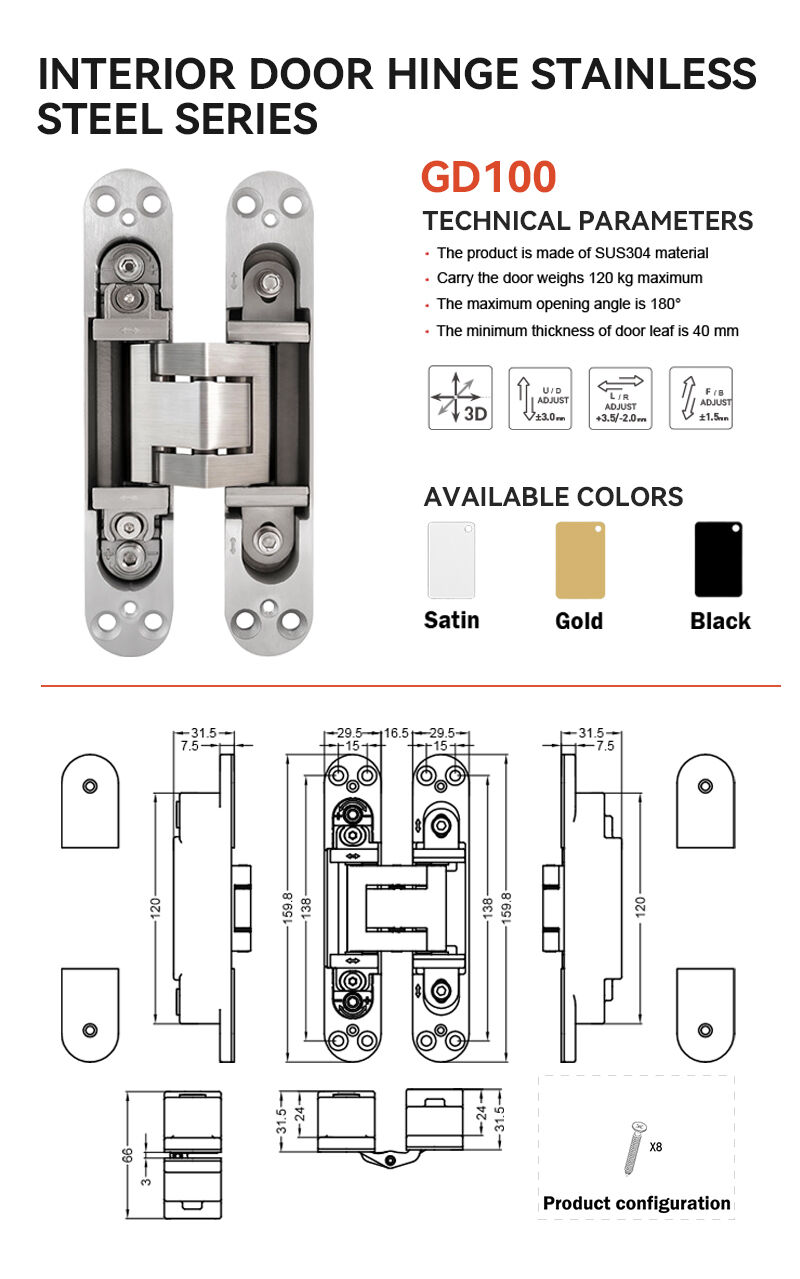

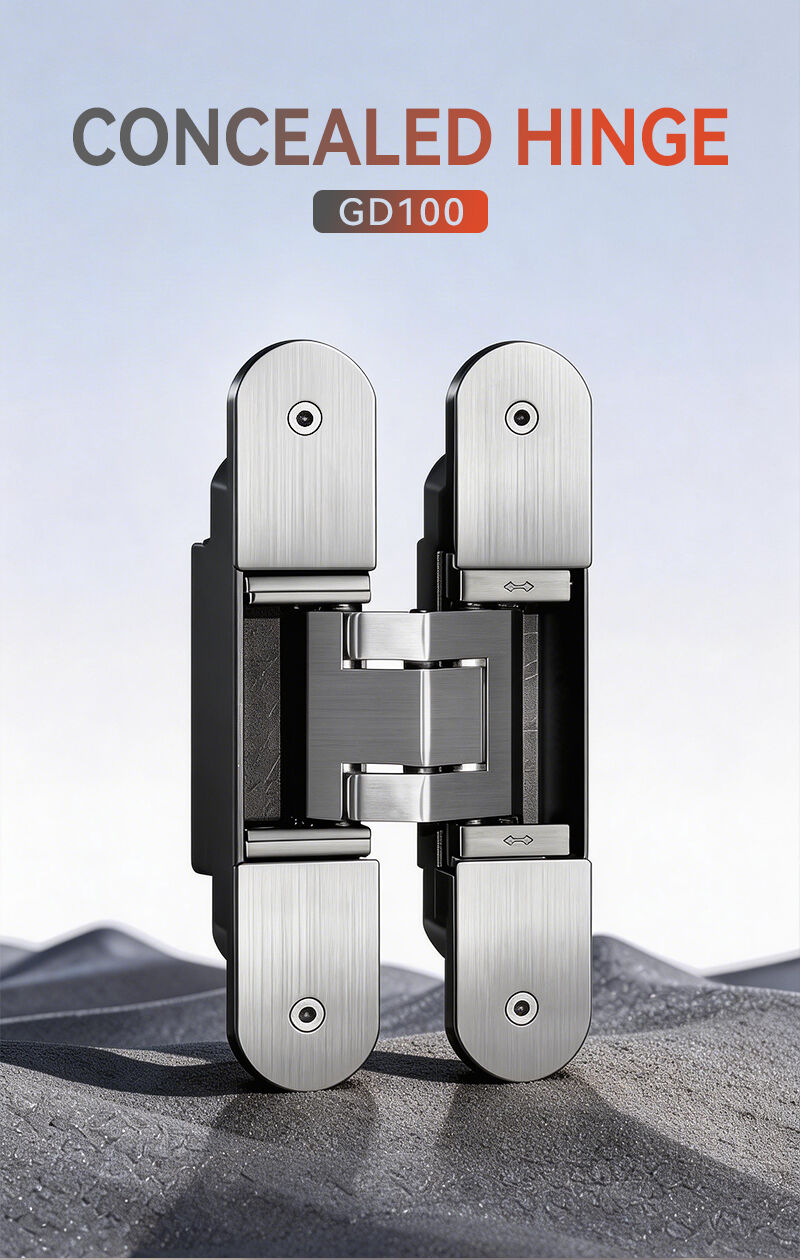

EN1935&EN1634 fire rated door hidden hinges SS304 GD100

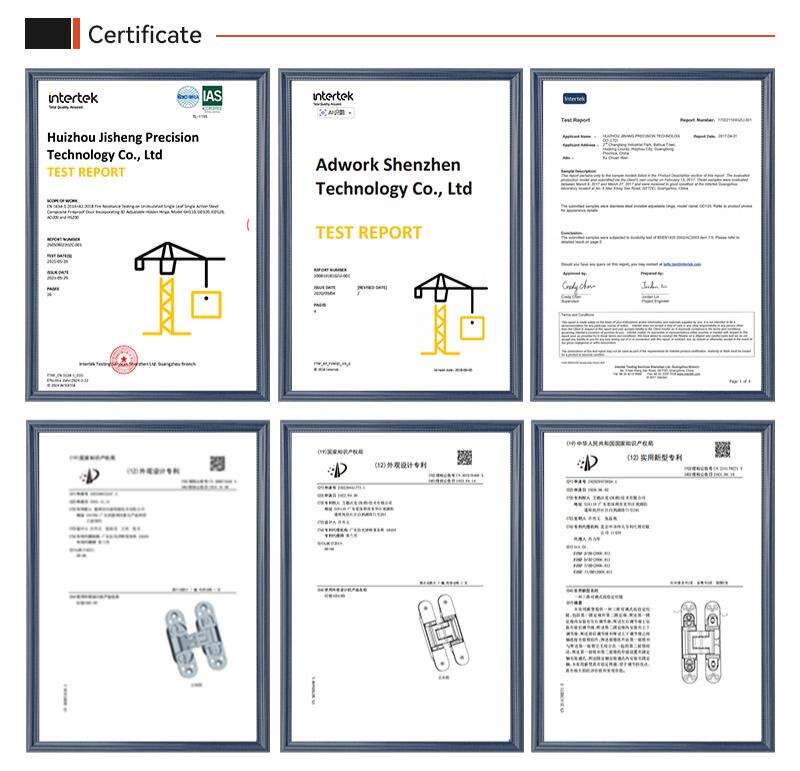

GD100-3_10(1)(1).jpg GD100-3_10(2).jpg

GA65 Aluminum-titanium-alloy 50KG 3D ADJUSTABLE HIDDEN HINGE

GD100 SUS304 HEAVY-DUTY 120KG 3D ADJUSTABLE HIDDEN HINGE

GE85 zinc alloy HEAVY-DUTY 80KG 3D ADJUSTABLE HIDDEN HINGE

GE100 ZINC ALLOY 3D ADJUSTABLE DOOR HIDDEN HINGE FOR 100KG DOORS

GE70M Zinc Alloy + Stainless Steel 60KG 2D ADJUSTABLE HIDDEN HINGE

HS200 SUS304 HEAVY-DUTY 200KG 2D ADJUSTABLE HIDDEN HINGE

AD200 SUS304 HEAVY-DUTY 200KG 3D ADJUSTABLE HIDDEN HINGE

GH80 SUS304 HEAVY-DUTY 80KG HIDDEN HINGE

GH110 SUS304 HEAVY-DUTY 100KG 3D ADJUSTABLE HIDDEN HINGE

AD80 HEAVY-DUTY 80KG 2D ADJUSTABLE HIDDEN HINGE

SUS304 Material
