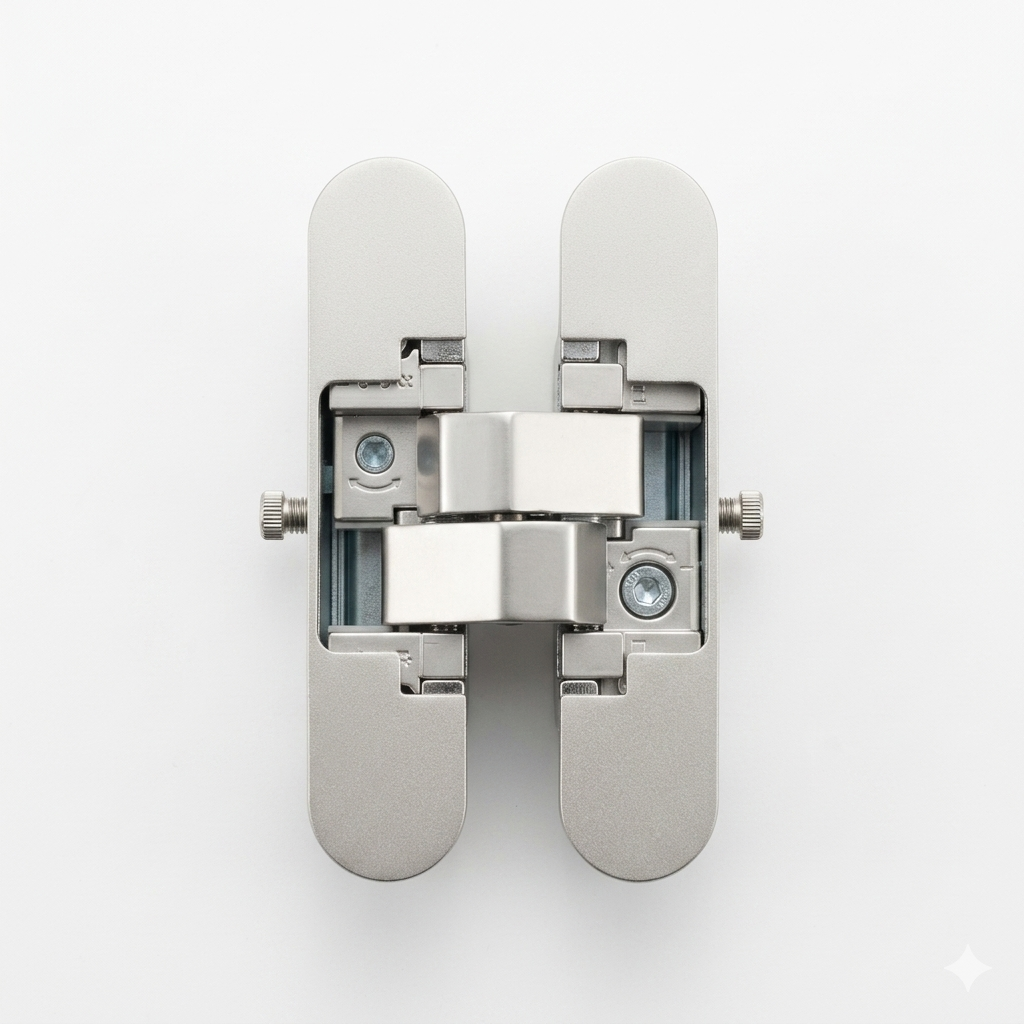

AN160 replacement GE35X L110 W24mm door concealed hidden hinges for 40kgs interior door peal chrome color
·The product is zinc alloy material
· Carry the door weighs 60 kg maximum
· The maximum opening angle is 180 °
· The minimum thickness of door leaf is 35 mm
· Can be realized up and down adjustment ± 2.5 mm
left and right the adjustment + 2.5 / - 2.0 mm, before
and after the adjustment ± 1.0 mm,easy to install and use
- Overview
- Parameter
- Inquiry
- Related Products
Material: Zinc alloy
Weight Capacity: Maximum door weight of 60 kg (approx. 132 lbs)
Minimum Door Thickness: 35 mm
Maximum Opening Angle: Up to 180°
Available Colors: White, Grey, and Black
Up and Down (Vertical):$\pm$ 2.5 mm
Left and Right (Horizontal): + 2.5 mm / - 2.0 mm
Before and After (Depth):$\pm$ 1.0 mm
The GE35X is a heavy-duty, concealed 3D adjustable hinge designed for interior doors. It shares the same dimensions as the GE35 model but is constructed with stronger materials to support higher weight capacities.GE35X inside middle is plastic :GE35X is 100% zinc alloy . 2GE35X loading is 60kgs :3GE35X loading is 75kgsd
Key Technical Specifications
3D Adjustability Range
The hinge features three-dimensional adjustments to ensure perfect door alignment after installation:
|
Loading |
2hinge for 60kgs 3hinge for 75kgs |
|
material |
100% zinc alloy |
|
Length(door/frame) |
110/110mm |
|
Width(door/frame) |
24 / 24 mm |
|
Opening angel |
≤180° |
