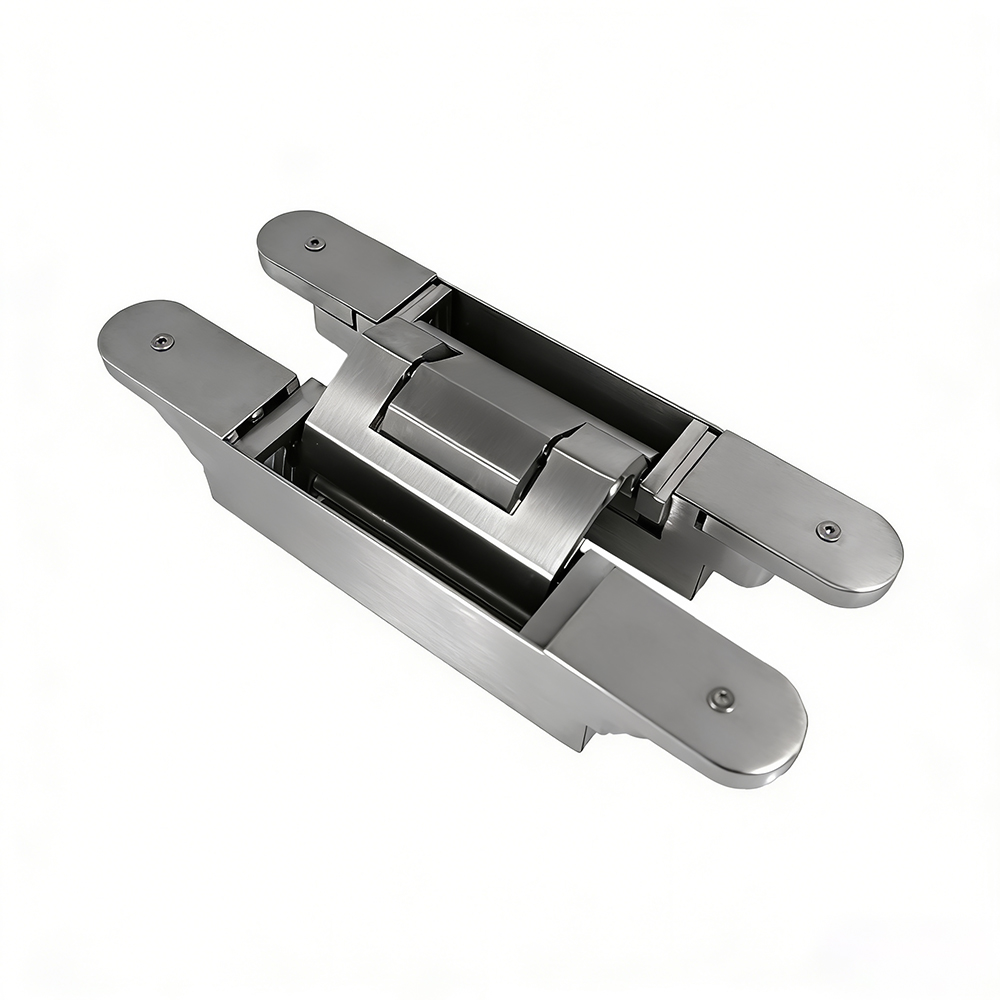

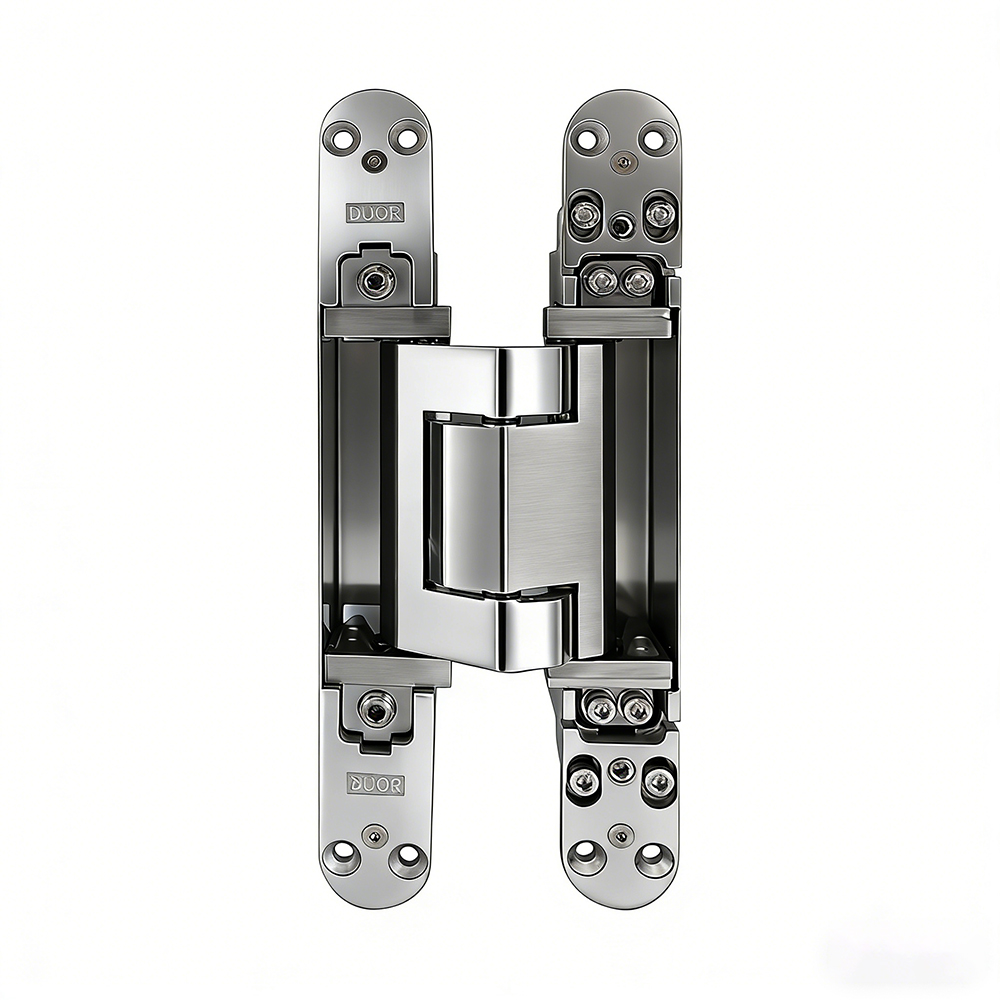

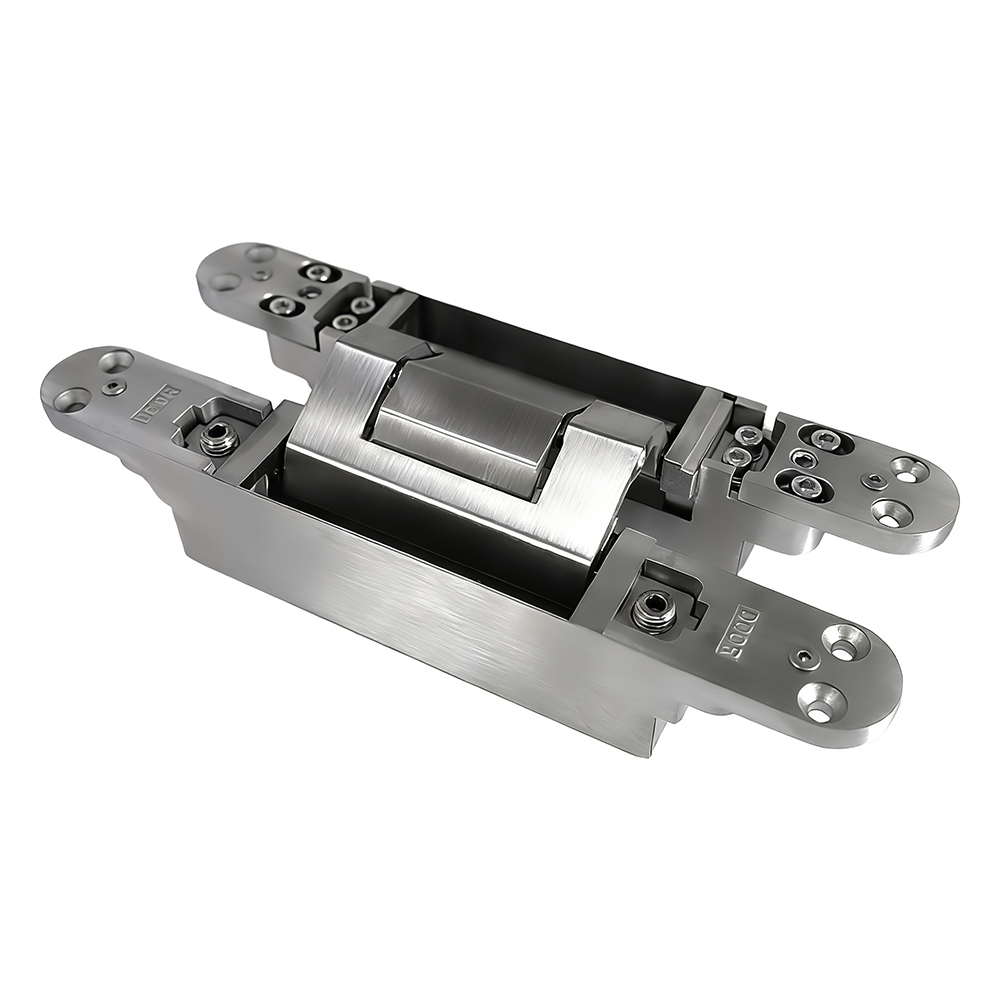

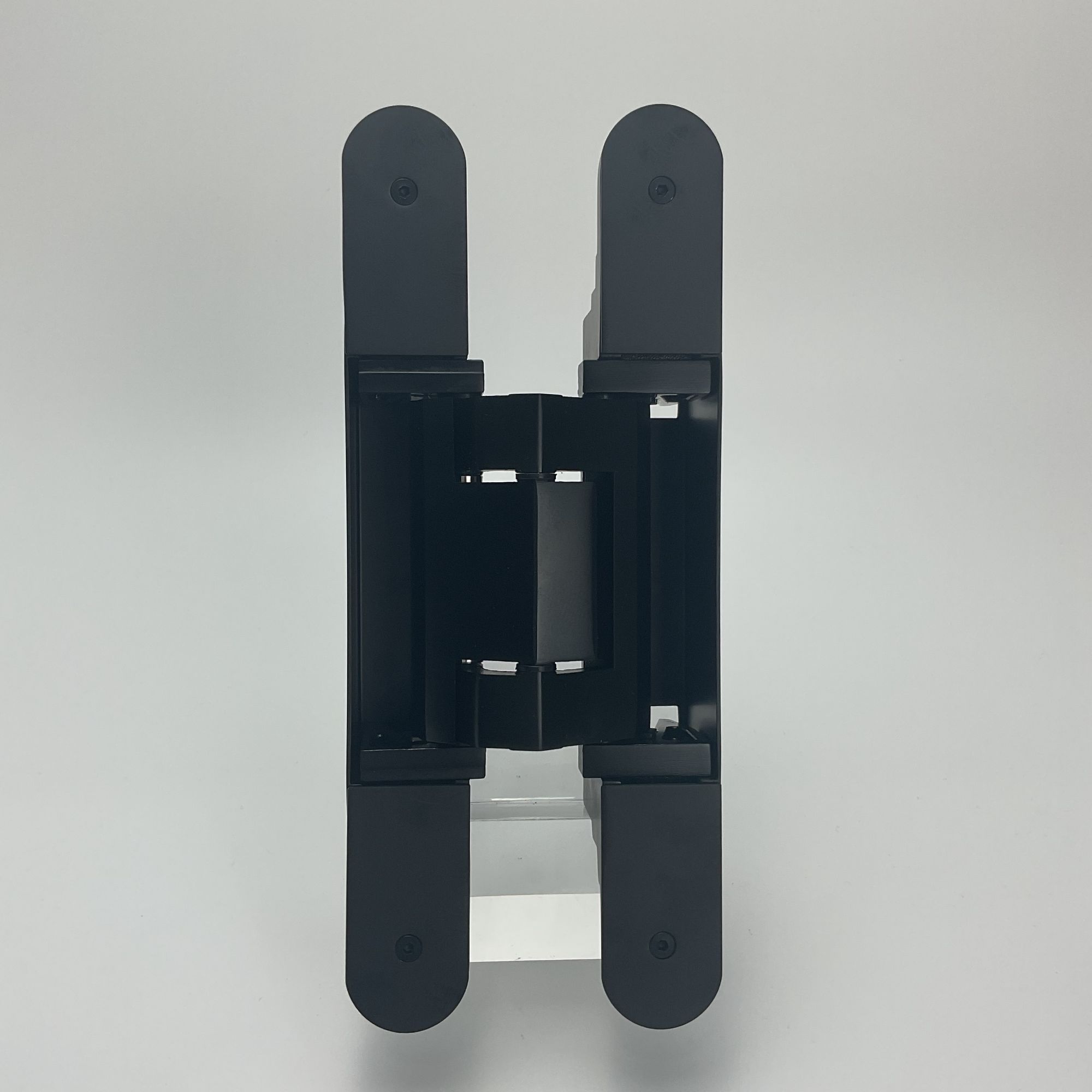

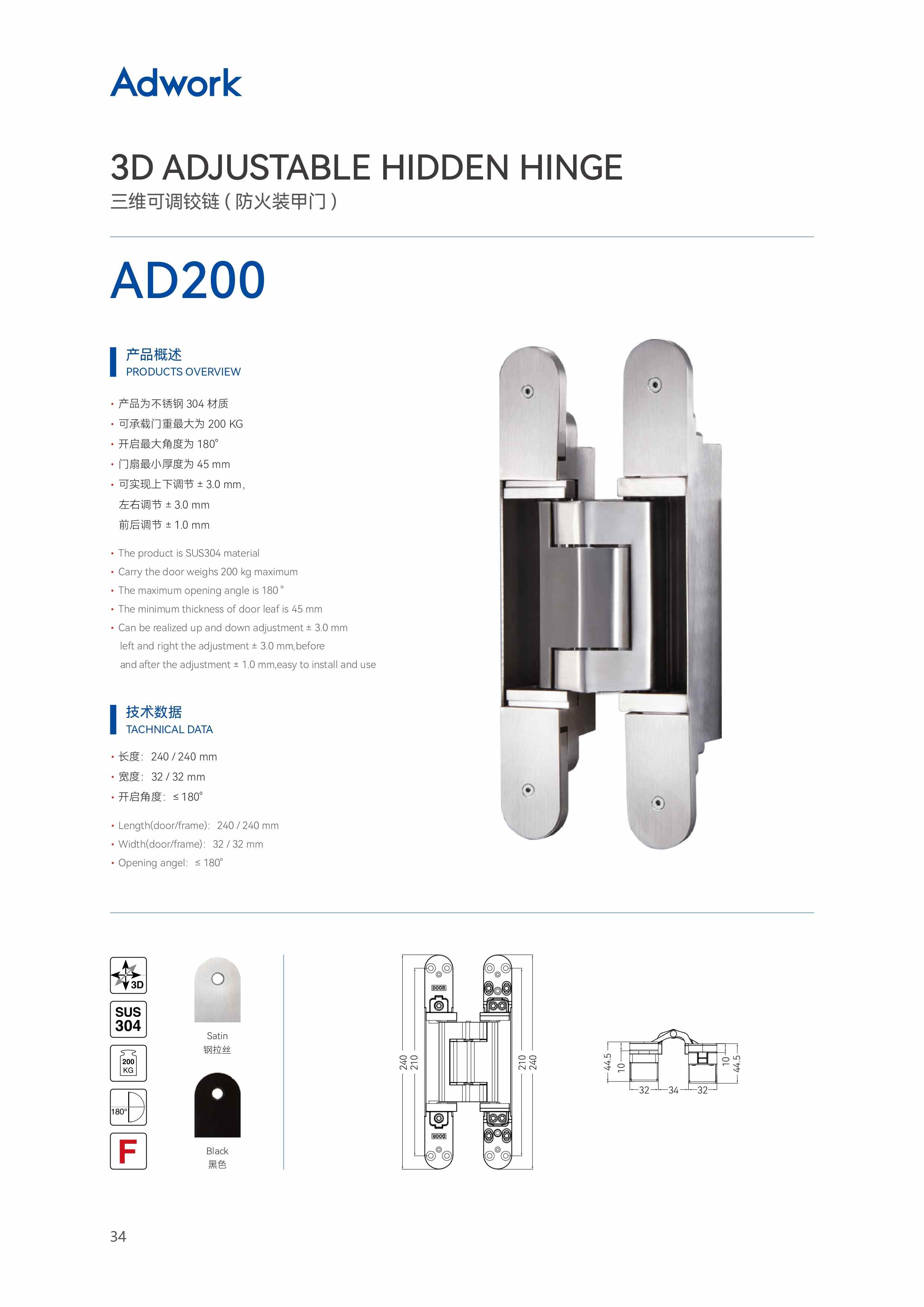

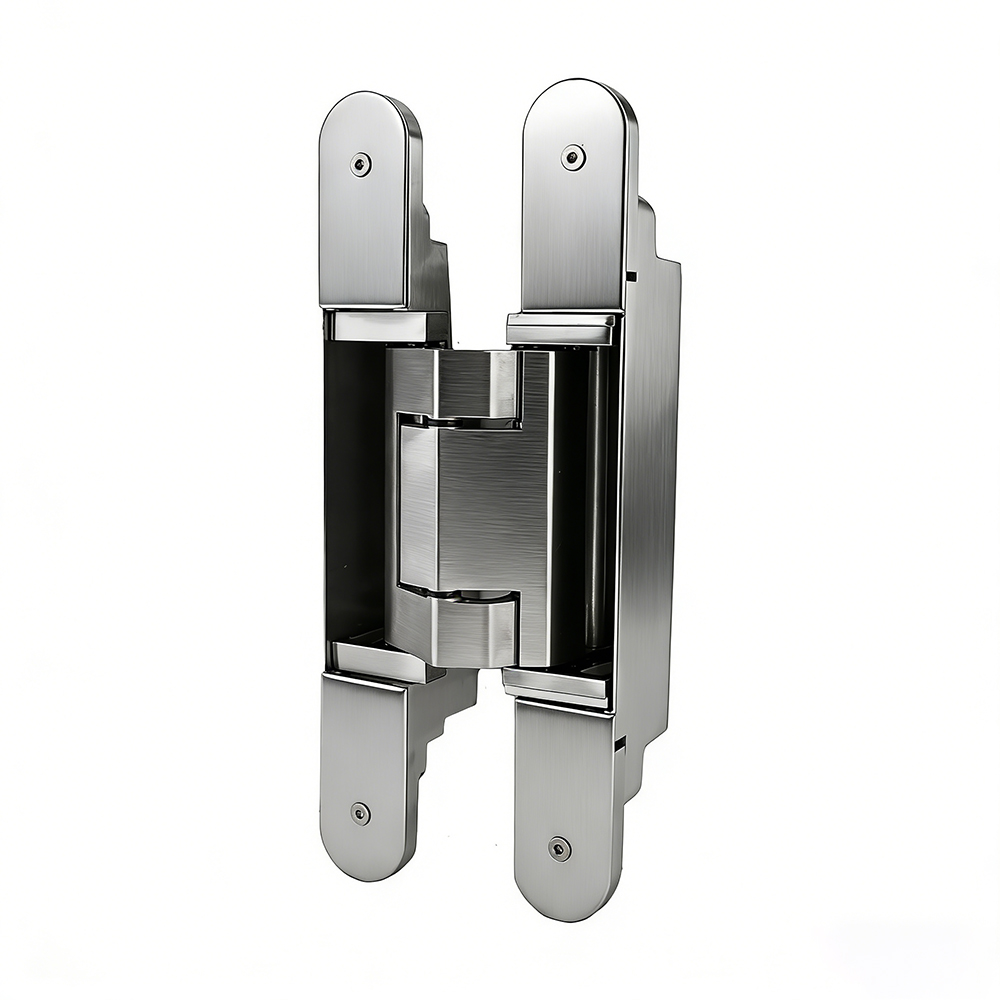

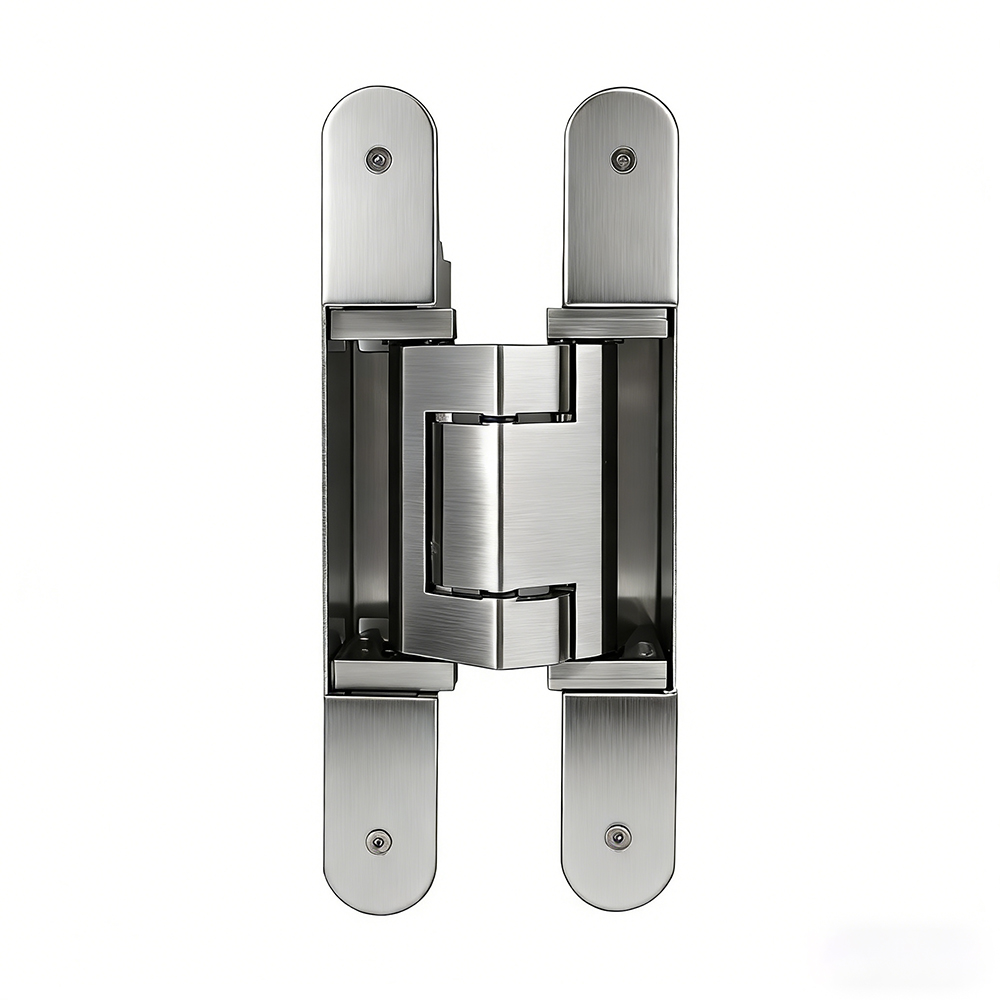

AD200 200KG

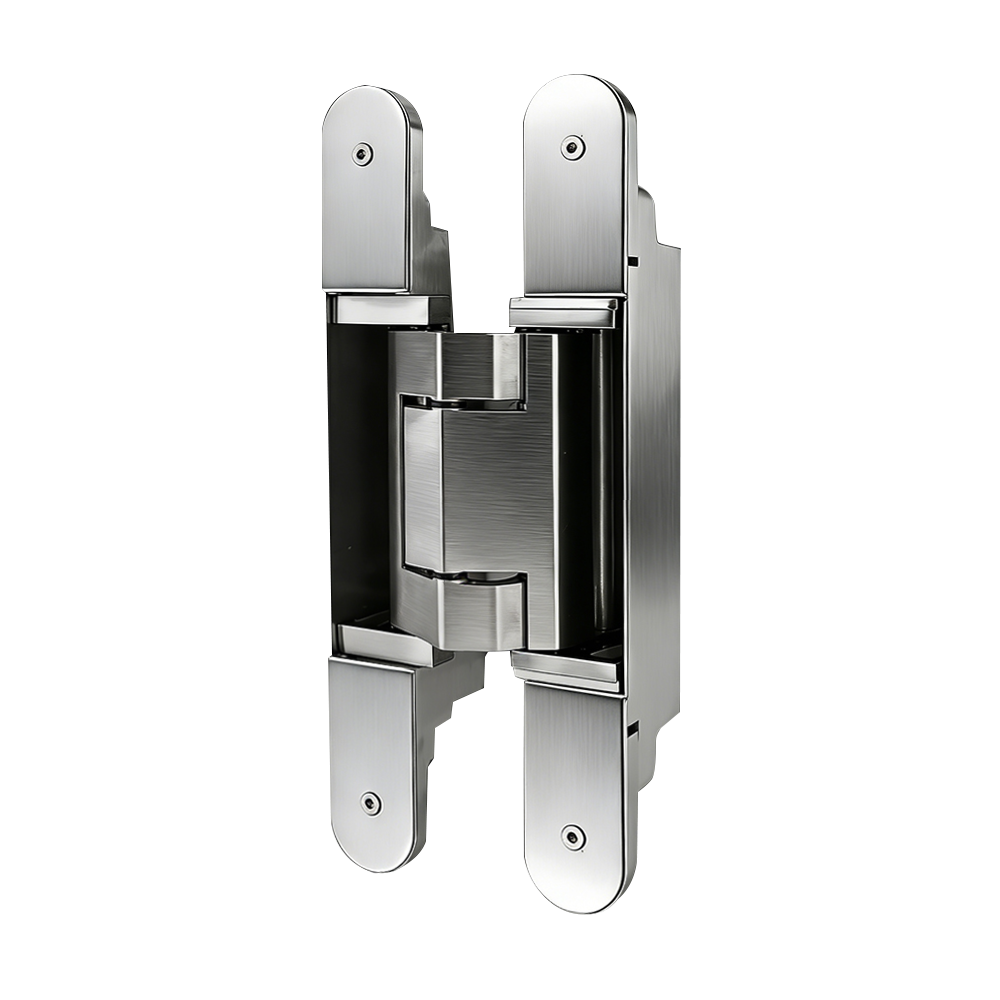

·EN1634 Fire rated SS304 200KGS entrance door 3D conceal hinges
·EN1935 200 000 circle life
· The product is SUS304 material EN1634 Fire rated
· Carry the door weighs 200 kg maximum 3hinges for 240kgs
· The maximum opening angle is 180 °
· The minimum thickness of door leaf is 45 mm

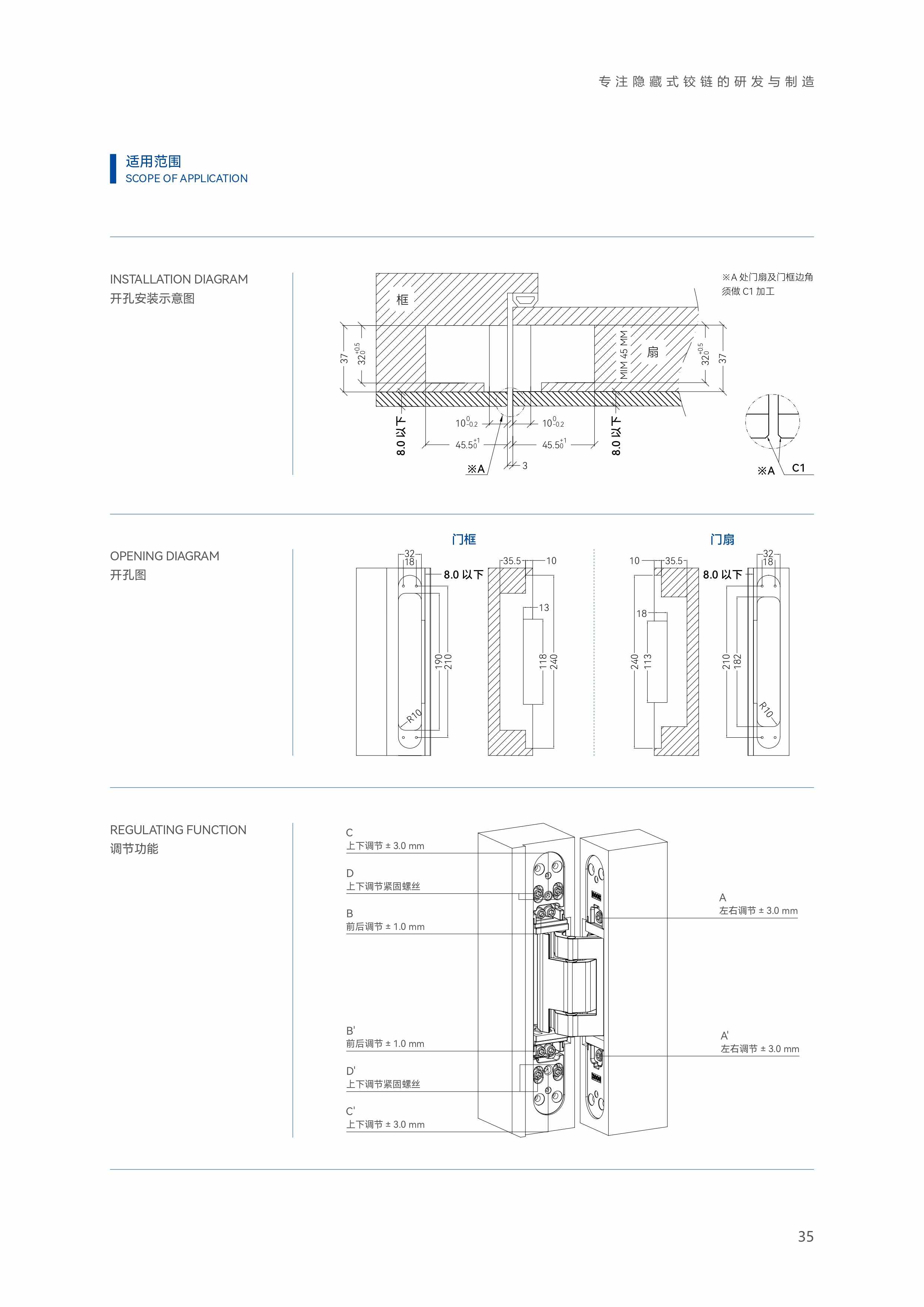

· Can be realized up and down adjustment ± 3.0 mm
left and right the adjustment ± 3.0 mm,before
and after the adjustment ± 1.0 mm,easy to install and use
- Overview
- Parameter
- Inquiry
- Related Products
|
Length(door/frame) |
240 / 240 mm |
|
Width(door/frame) |
32 / 32 mm |
|
Opening angel |
≤ 180° |
