304 Stainless Steel Material

Home >  Products  >  3D Concealed Door Hinge  >  304 Stainless Steel Material

All

AD200 200KG

AD200 200KG

Features

  • For minimum 45mm thick wood or hollow metal doors

  • Metal Covers included

  • 3-dimensional adjustability

  • 180° opening angle

  • SS304 material---EN1634 Fire rated certification

  • Base Materials: Hinge body and arms - SS304, Hinge covers - Metal covers

    Fast delivery from stock

Benefits
  • Fire rated ,which is suitable for fire rated door

    Virtually disappears from view when door is closed

    Provides aesthetic continuity when door is open

  • Refined and minimal Easy installation and door alteration

    Fits smaller doors than all other McKinney concealed hinge models

    Application:For metal or wooden fire rated door etc

Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products
AD200 200KG
AD200 200KG
AD200 200KG
AD200 200KG
AD200 200KG
AD200 200KG
AD200 200KG
AD200 200KG

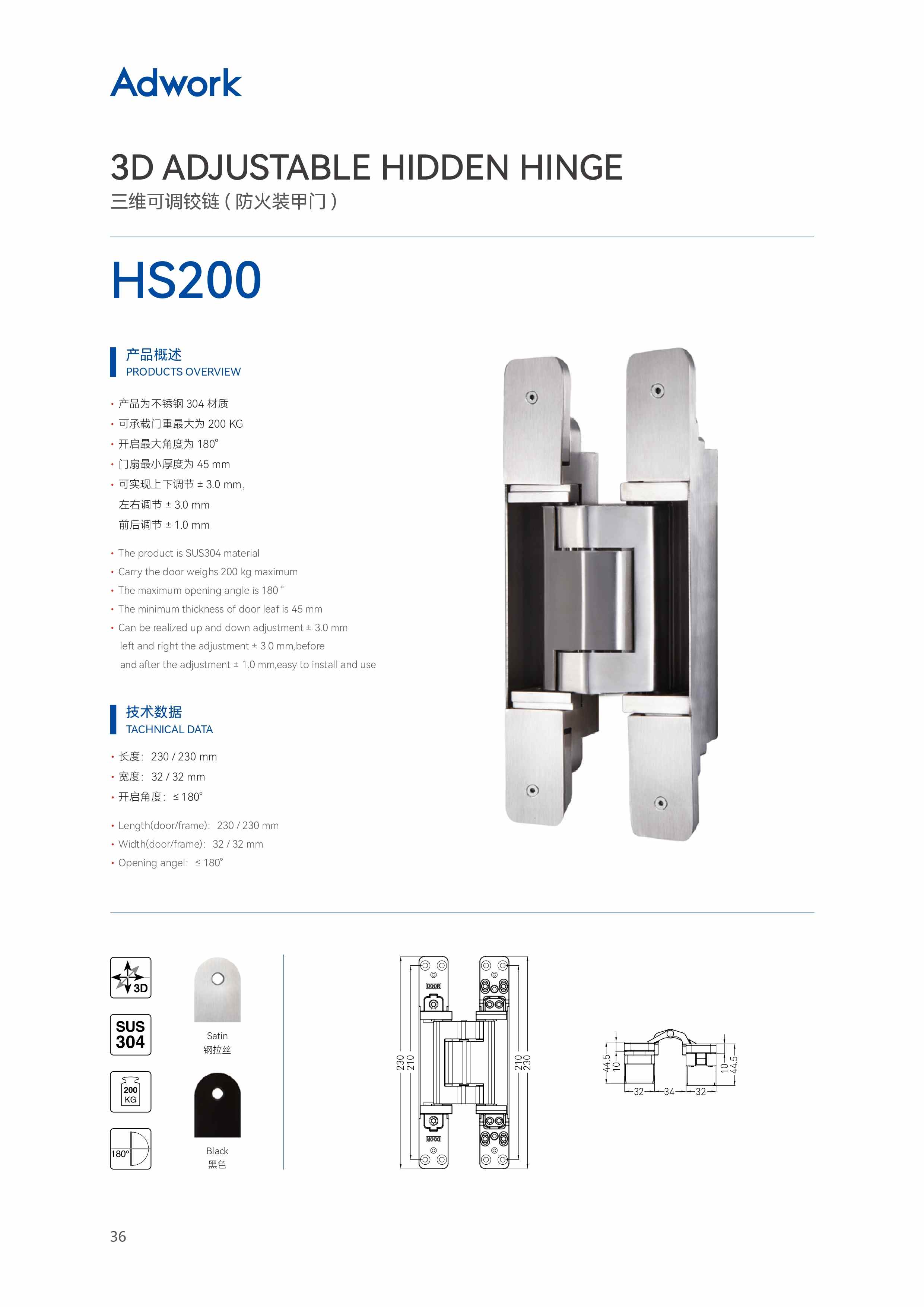

EN1634 fire door hinges 200KGS 3D conceal hinges

materia: SS304 material

max loading: 2hinge for 200kgs 3hinge for 240kgs

door minimum thickness:45mm

3D adjusted

Length:230/230mm

width: 32/32mm

Open angle<180 degree


Length(door/frame)

240 / 240 mm

Width(door/frame)

32 / 32 mm

Opening angel

≤ 180°
