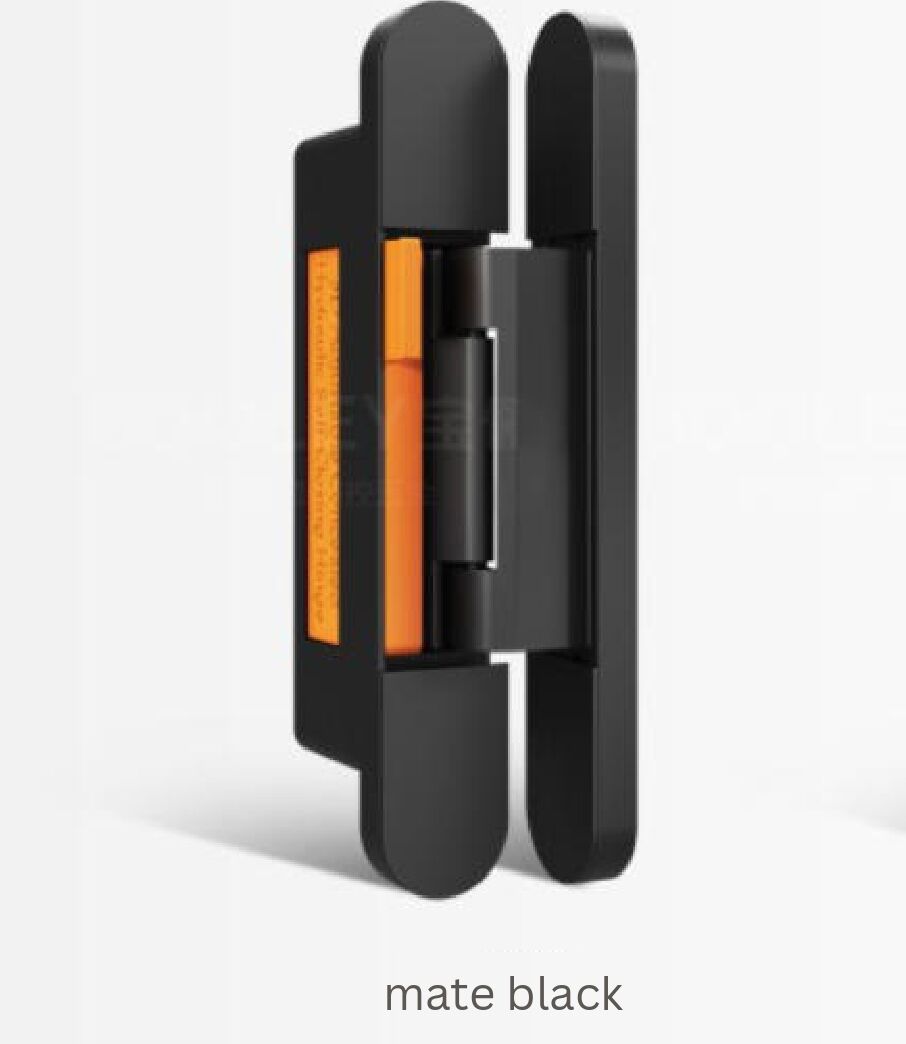

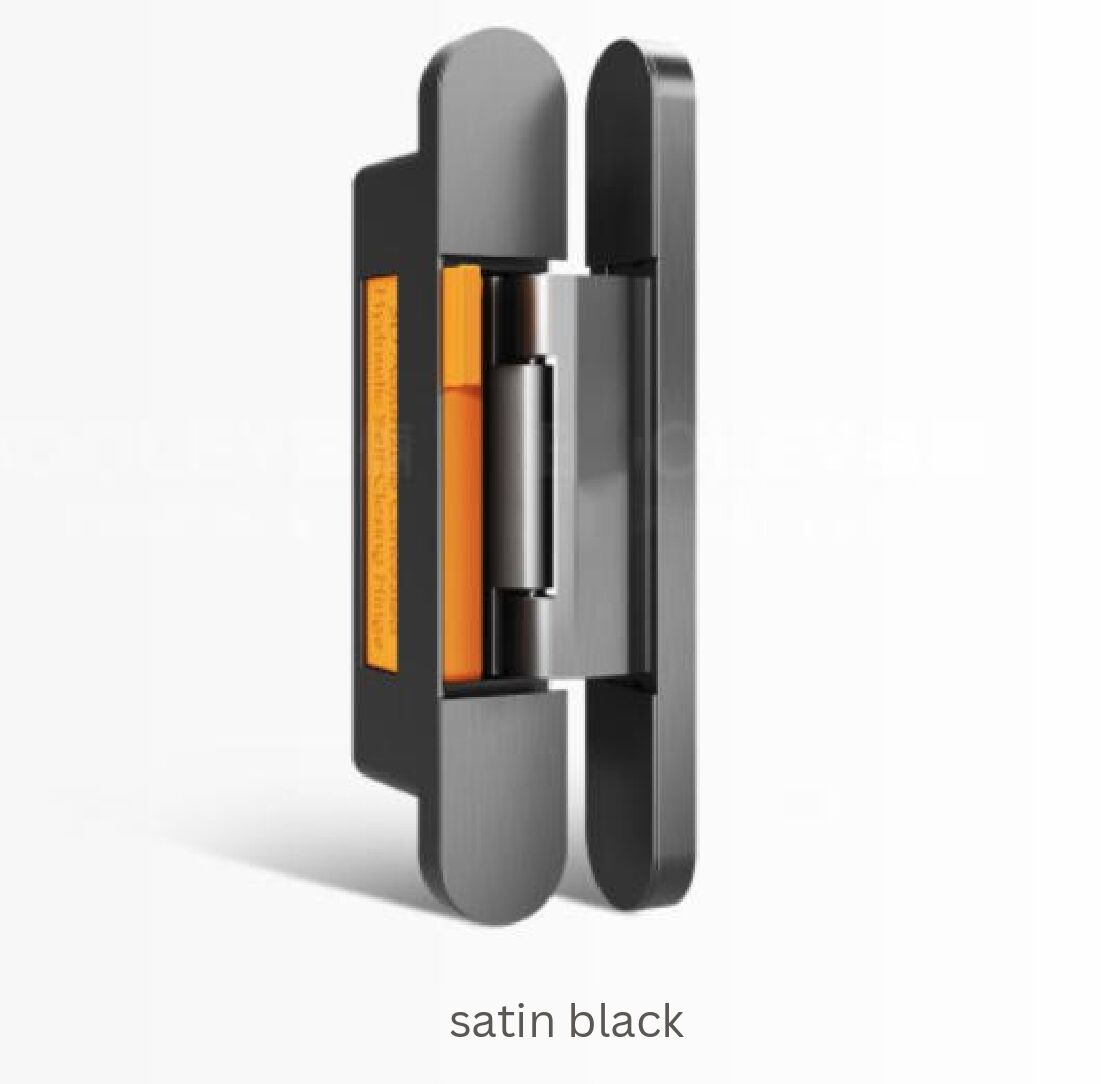

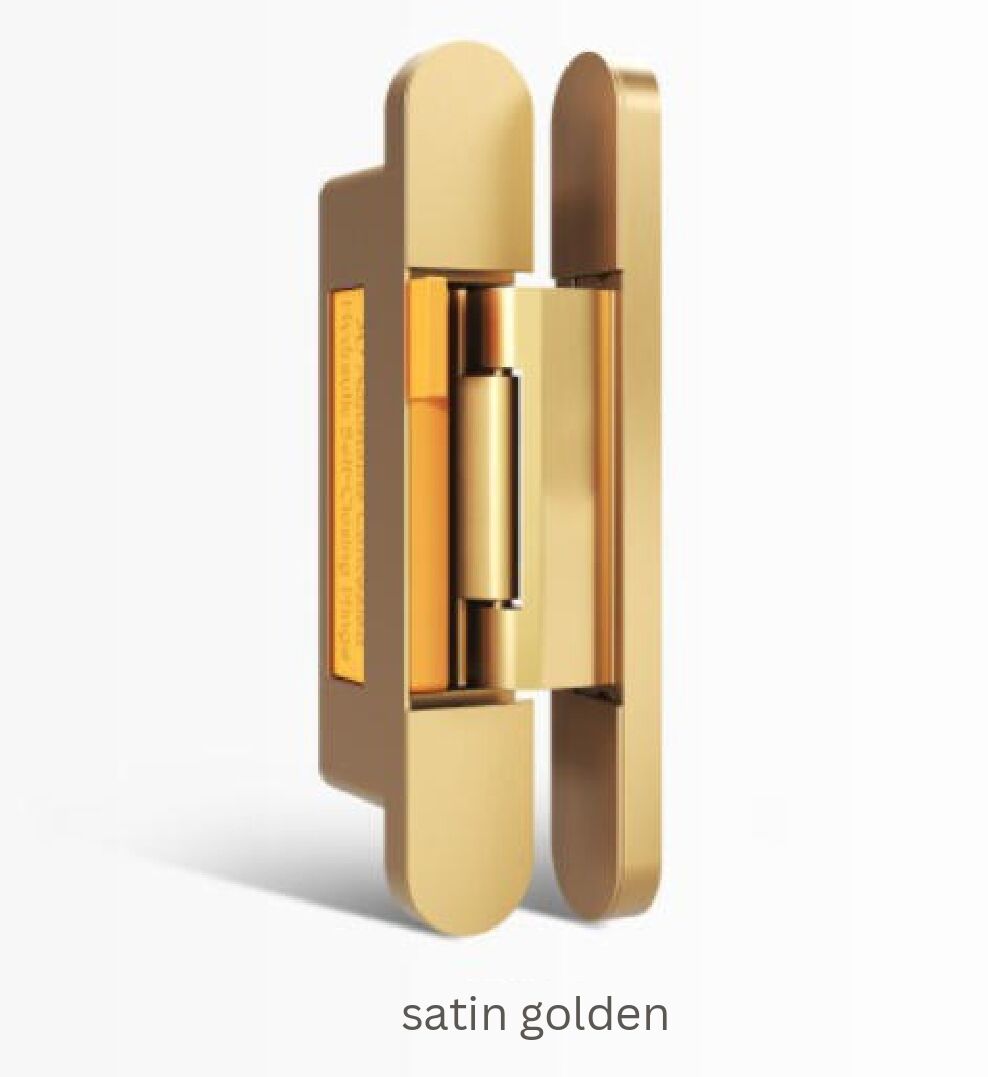

Super narrow door 28mm soft close concealed hinges

Super narrow door 28mm soft close concealed hinges

Features

1. 28mm super narrow*10mm super thin
2.45mm Tongue-and-groove doors, it keep 4mm to door edge
3.The shallow groove in the door frame will not damage the inner frame of the aluminum
frame, resulting in a more robust door frame structure
4.Fully concealed designed, more suitable installing option
5.Hydraulic technology inside
6.3D adjust, more precise
7.Closed speed could be adjusted
8.110 degree open angle , it is silent in closing speed
9.Heavy loading, 2 hinge 70KGS loading
Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products
Super narrow door 28mm soft close concealed hinges
Super narrow door 28mm soft close concealed hinges
Super narrow door 28mm soft close concealed hinges
Super narrow door 28mm soft close concealed hinges
Super narrow door 28mm soft close concealed hinges
Super narrow door 28mm soft close concealed hinges
Super narrow door 28mm soft close concealed hinges
Super narrow door 28mm soft close concealed hinges

Features:

1.just 10mm frame drilling 43mm door leaf drilling
2.Suitable for aluminum door frame
3.Fully design:Fully connected when drillingand installing
4.Positioning at any angle between 80 and 180 degrees.
5.Maximum opening angle: 180 degrees

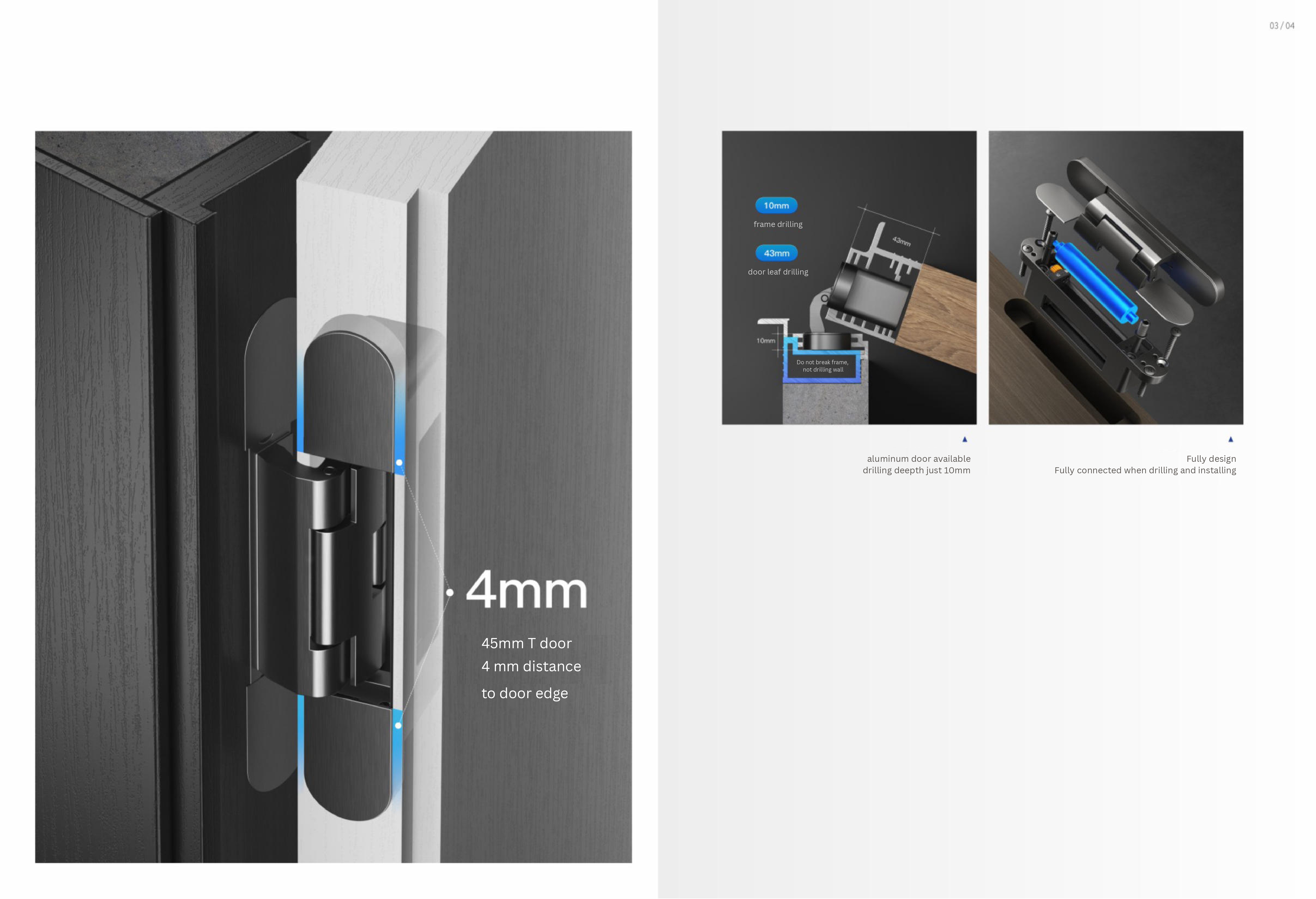

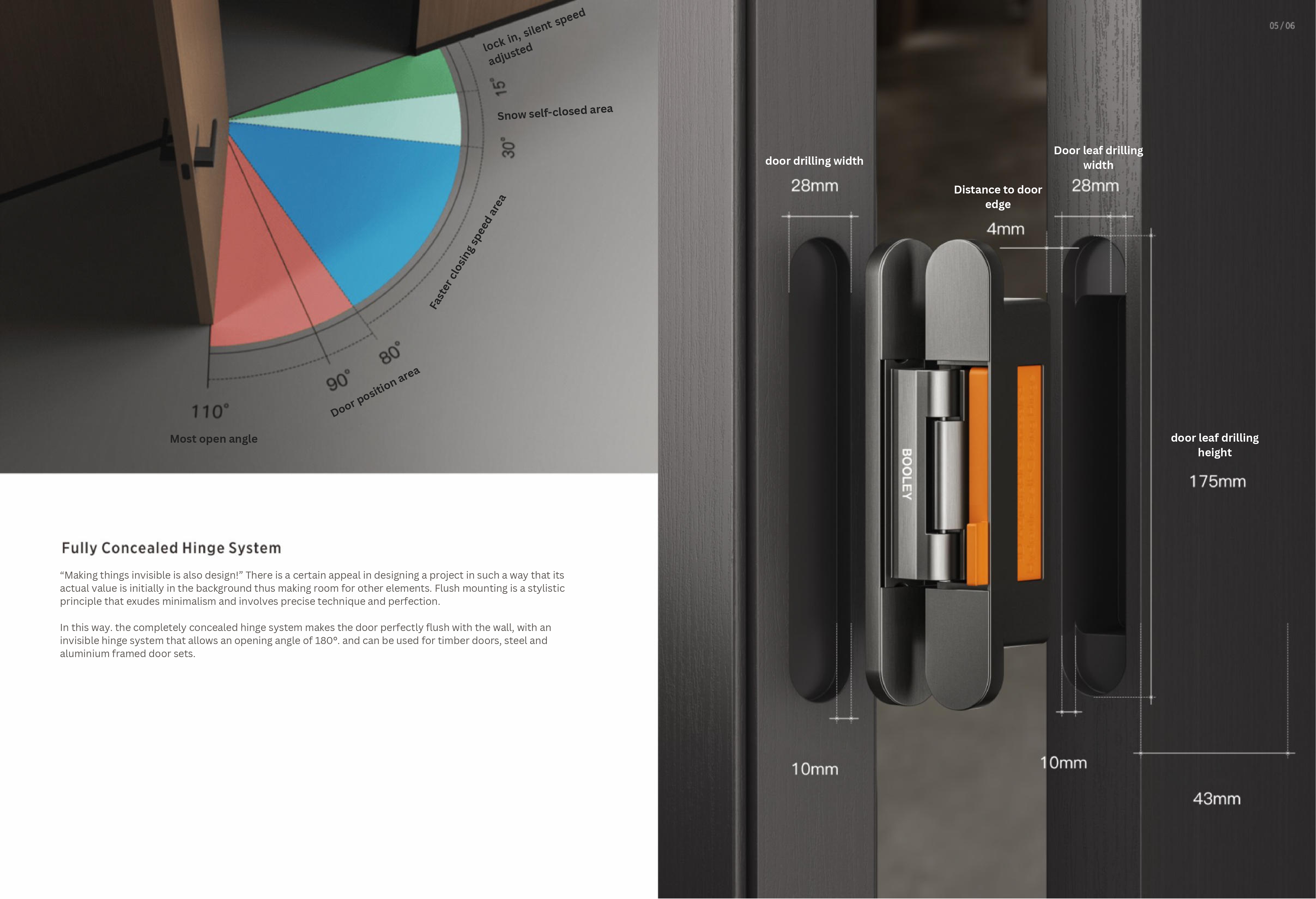

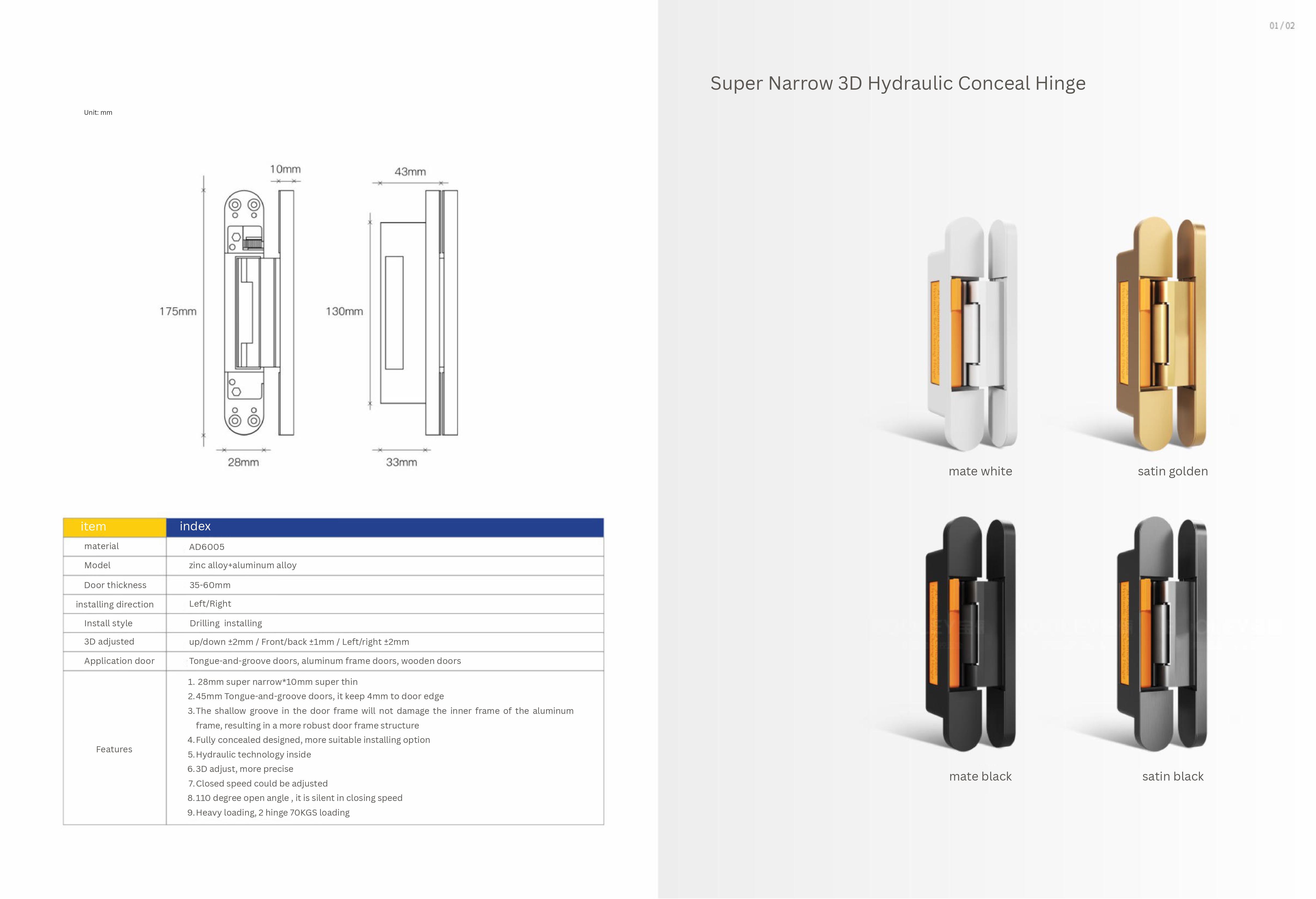

catalouge 1_page-0001.jpgcatalouge 1_page-0002.jpgcatalouge 1_page-0003.jpgcatalouge 1_page-0004.jpg

Model AD6005
Material

zinc alloy+aviation aluminum

Door thickness

35-60mm
3D adjusted
up/down ±2mm / Front/back ±1mm / Left/right ±2mm

Loading weight

2 hinges for 60KGS,3 hinges for 80kgs

Opening testing

200 000circles
