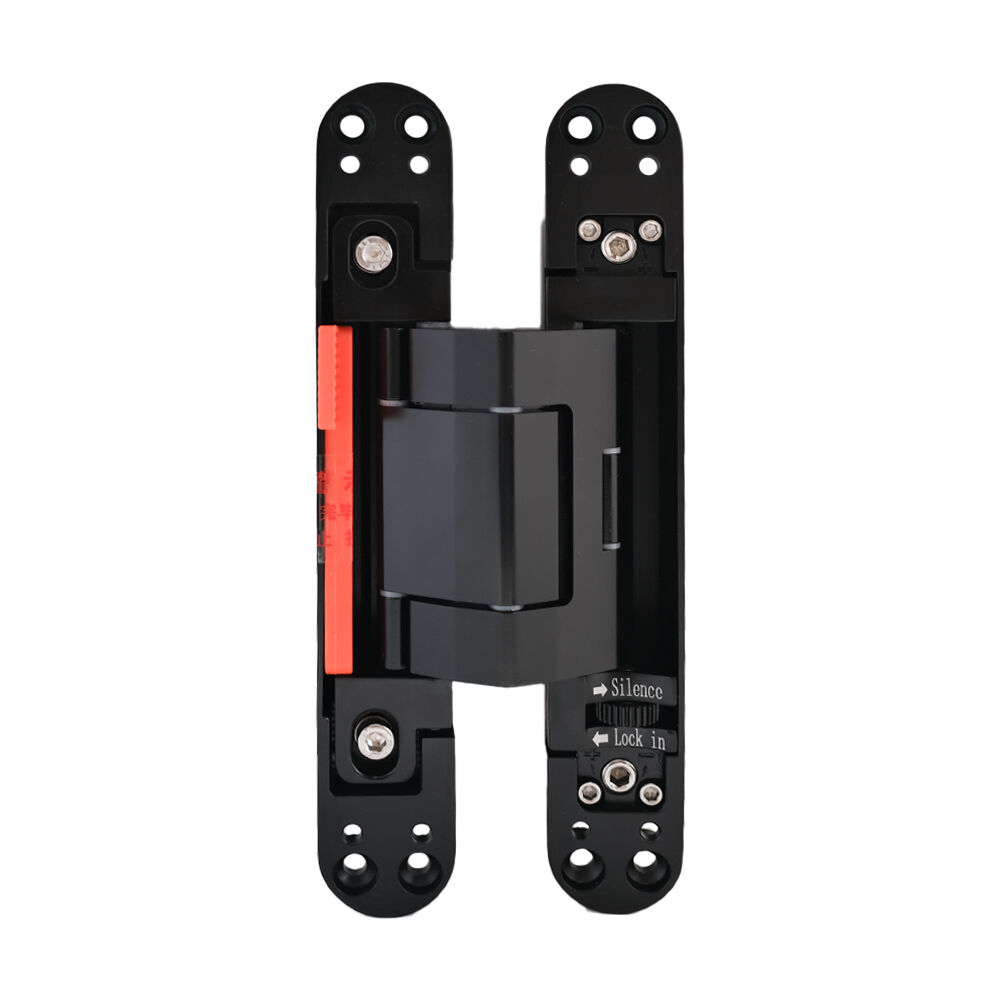

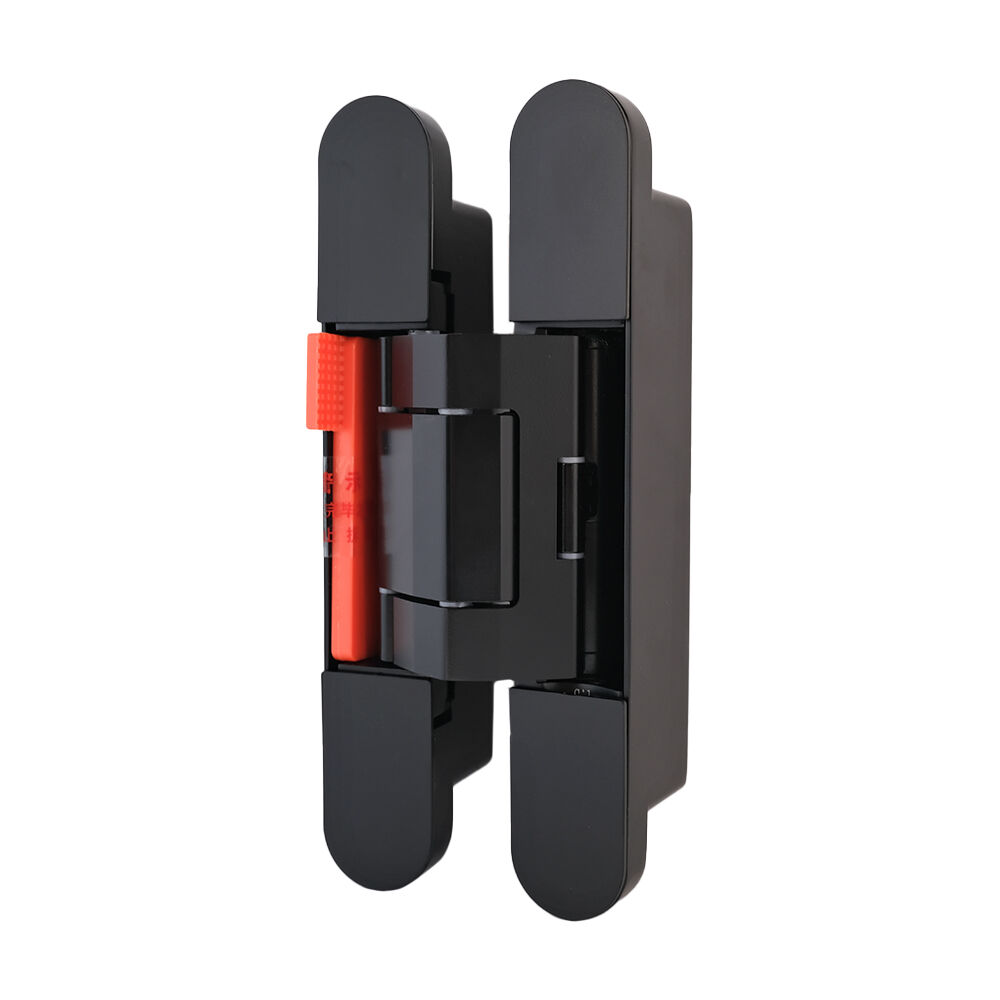

2026 Hydraulic self closing door hinges heavy duty door hidden hinges
2 hinge loading 60kgs 3 hinge loading 80kgs
inside hydraulic technology
standared color:white/black/satin brass/dark brown
1.3D adjusted
2.Silent locking mechanism with adjustable settings; no tools required for adjustment.
3.Shallow groove, no hydraulic tailstock required
4.Positioning at any angle between 80 and 180 degrees.
5.Maximum opening angle: 180 degree
- Overview
- Parameter
- Inquiry
- Related Products
Features:
1.3D adjusted
2.Silent locking mechanism with adjustable settings; no tools required for adjustment.
3.Shallow groove, no hydraulic tailstock required
4.Positioning at any angle between 80 and 180 degrees.
5.Maximum opening angle: 180 degrees

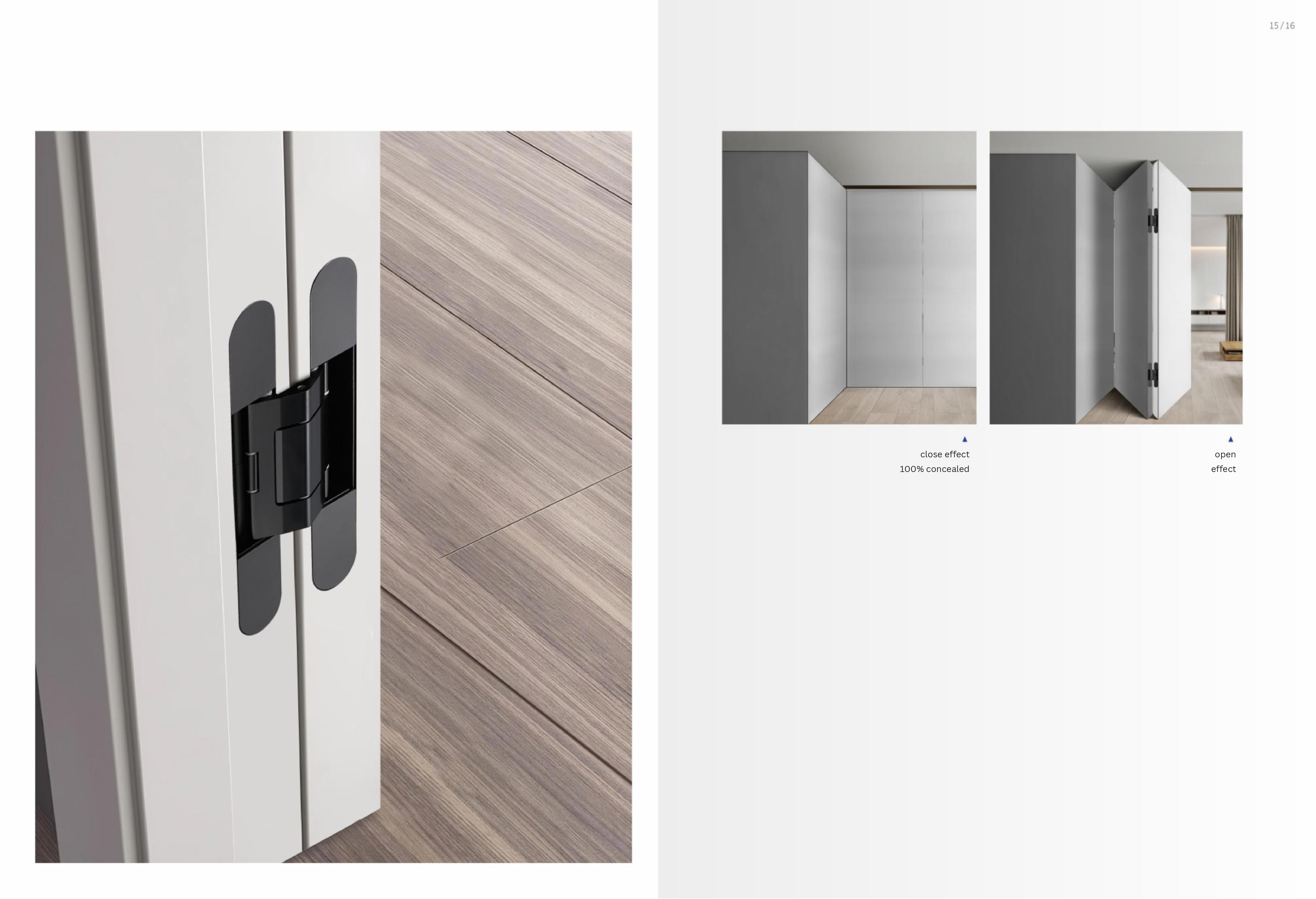

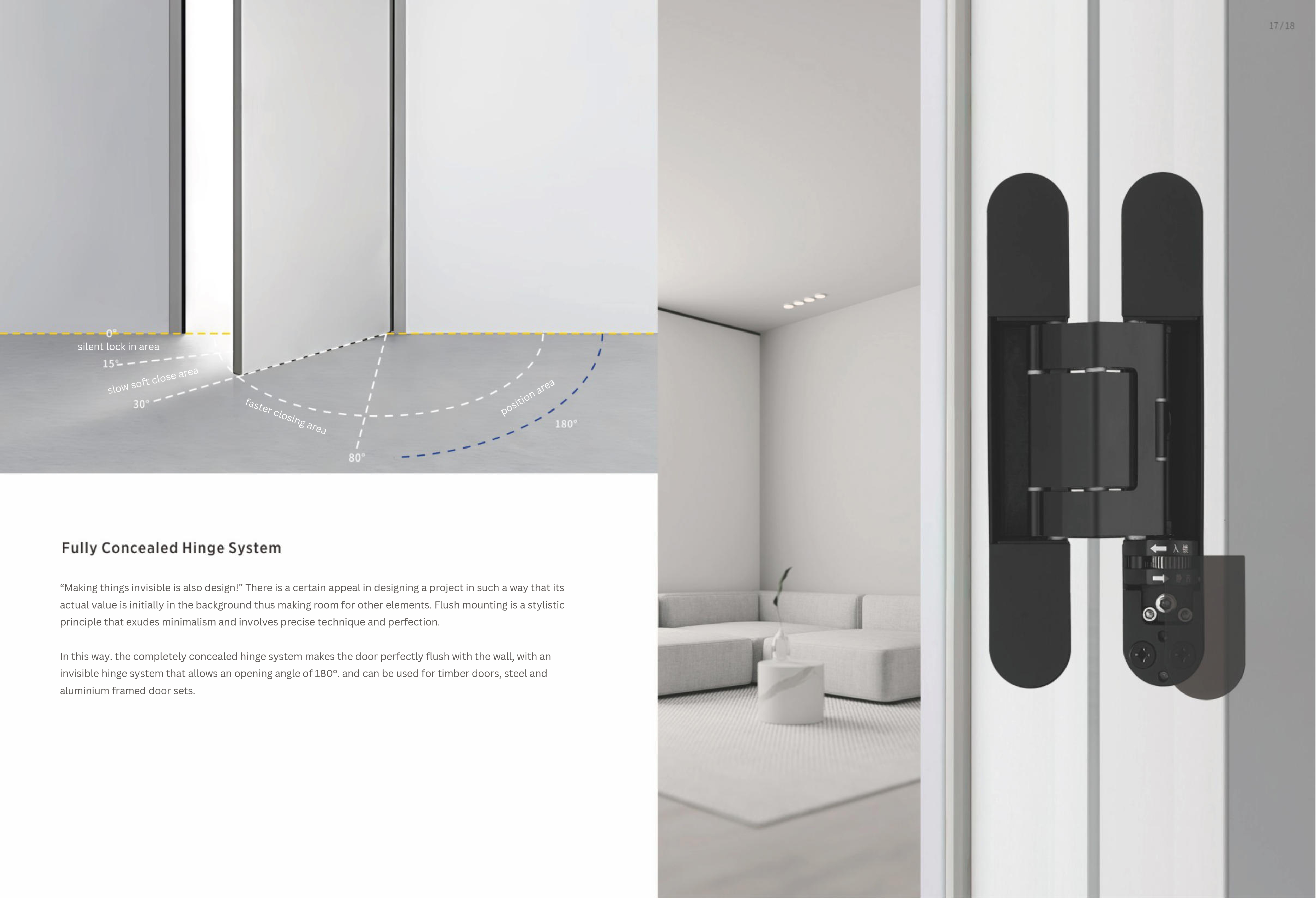

Fully Concealed hinges system
“Making things invisible is also design!” There is a certain appeal in designing a project in such a way that its
actual value is initially in the background thus making room for other elements. Flush mounting is a stylistic
principle that exudes minimalism and involves precise technique and perfection.
In this way. the completely concealed hinge system makes the door perfectly flush with the wall, with an
invisible hinge system that allows an opening angle of 180°. and can be used for timber doors, steel and
aluminium framed door sets.
actual value is initially in the background thus making room for other elements. Flush mounting is a stylistic
principle that exudes minimalism and involves precise technique and perfection.
In this way. the completely concealed hinge system makes the door perfectly flush with the wall, with an
invisible hinge system that allows an opening angle of 180°. and can be used for timber doors, steel and
aluminium framed door sets.

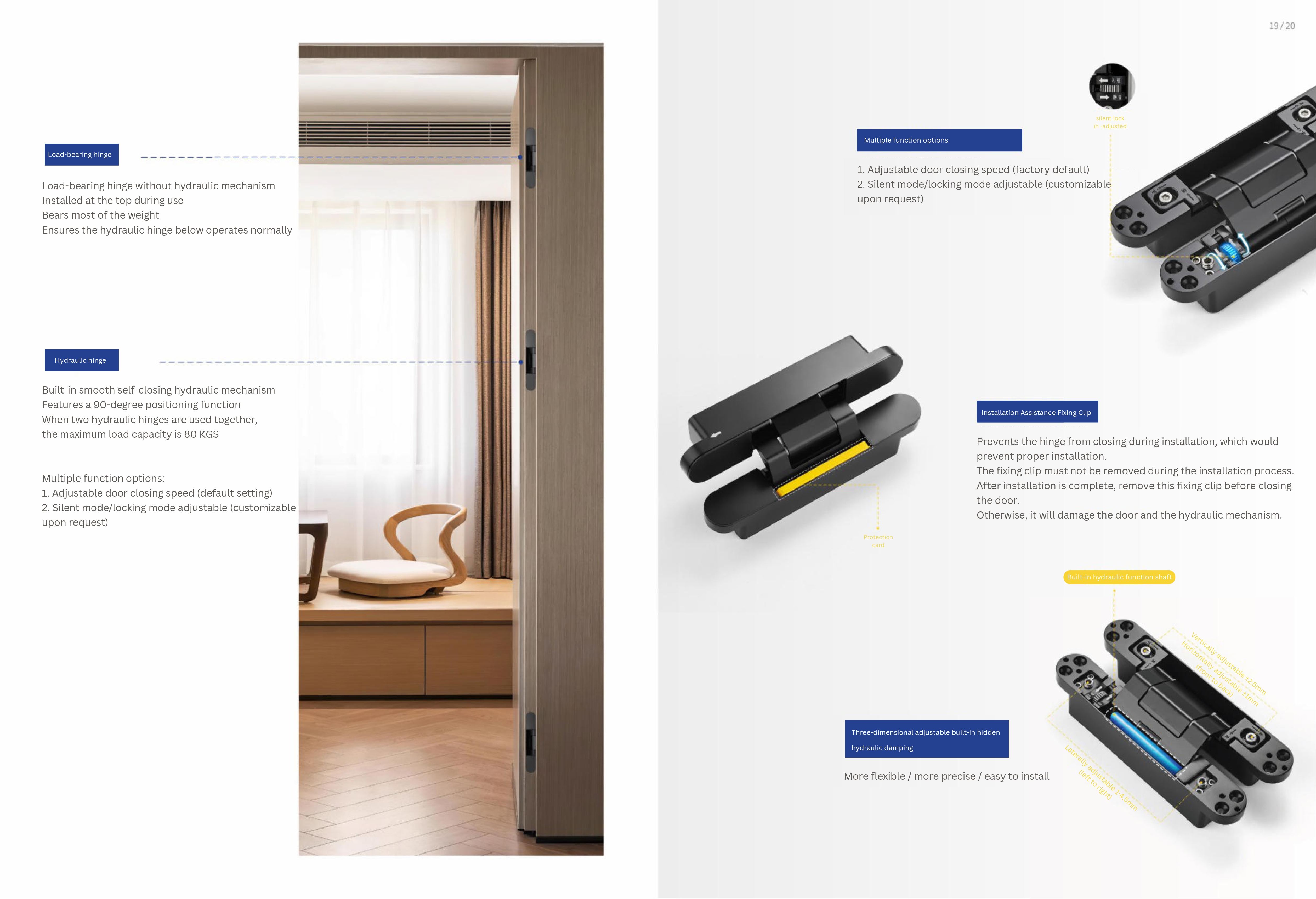

Multiple function options:
1. Adjustable door closing speed (factory default)
2. Silent mode/locking mode adjustable (customizable
upon request

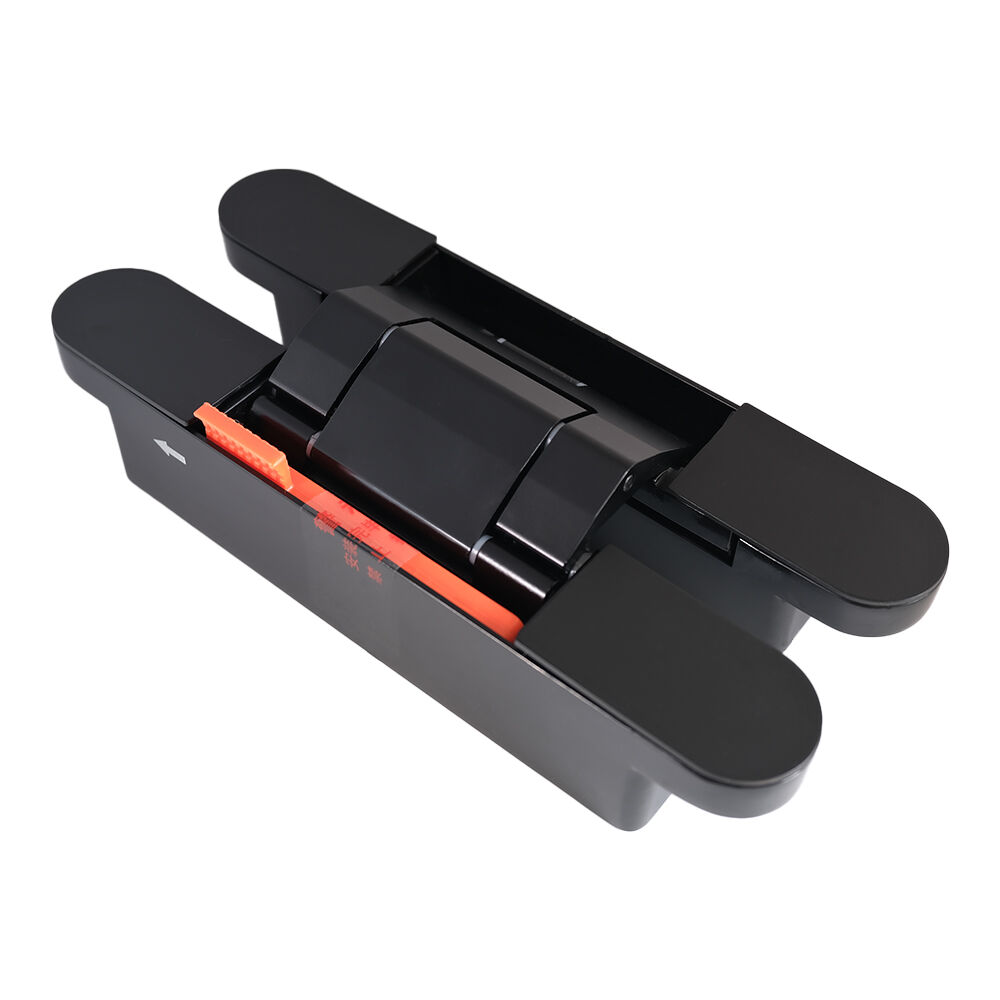

Installation Assistance Fixing clip
Prevents the hinge from closing during installation, which would
prevent proper installation.
The fixing clip must not be removed during the installation process.
After installation is complete, remove this fixing clip before closing
the door.
Otherwise, it will damage the door and the hydraulic mechanism
Three-dimensional adjustable built-in hidden hydraulic damping
More flexible / more precise / easy to install

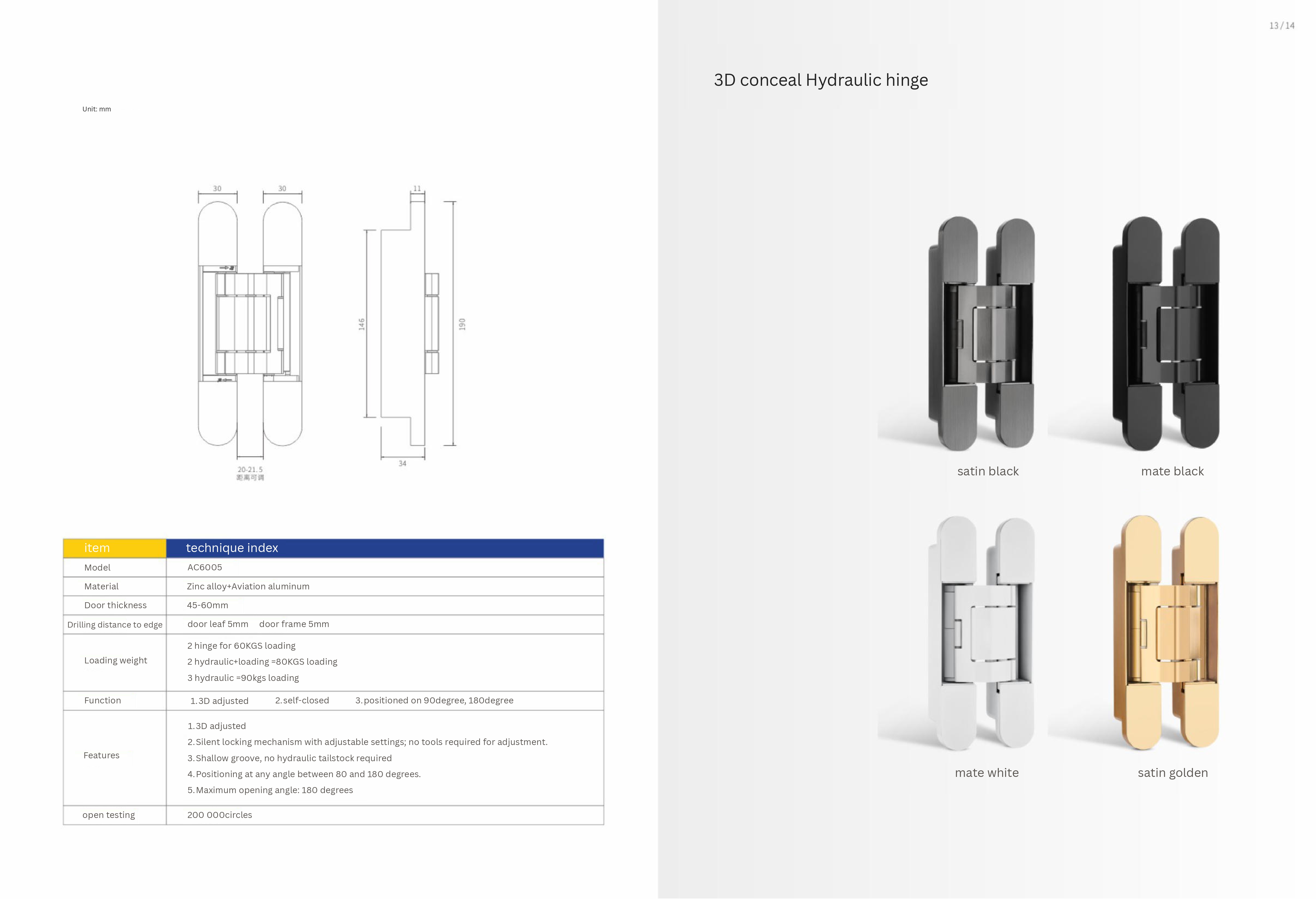

| Model |
AC6005 |
| Material |
zinc alloy+aviation aluminum |
|
Door thickness |
45-60mm |
|
Drilling distance to edge |
door leaf 5mm door frame 5mm |
|
Loading weight |
2 hinges for 60KGS,3 hinges for 80kgs |
|
Opening testing |
200 000circles |
